WAC Lighting L Track Right L C...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$26.95

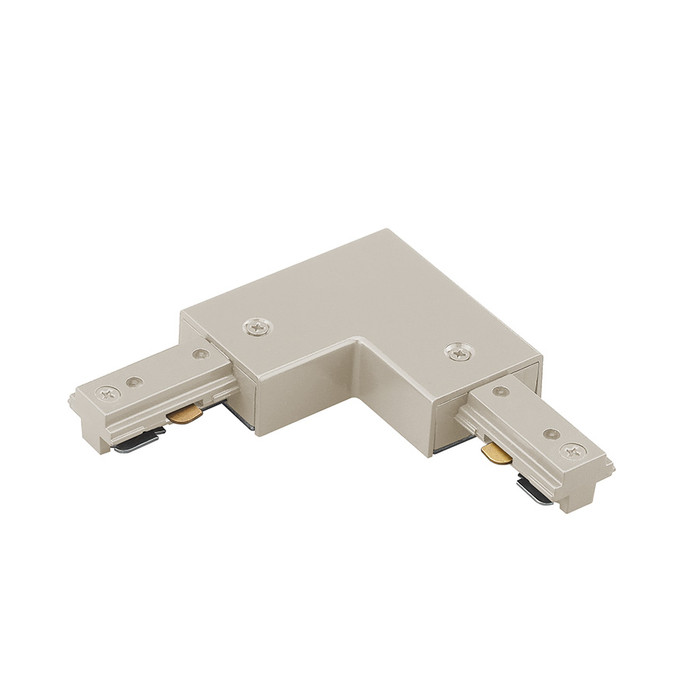

WAC Lighting L Track Right L Connector Track Component

WAC Lighting L Track Right L Connector Track Component

(No reviews yet) Write a Review

Model: WAC-LL-RIGHT
From the L Track Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$26.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Modern Forms FM-W76108 Kind LED 3-CCT Indoor or Outdoor Flush Mount

A clean layered look. The dimensional shade encompasses a white diffuser wrapped with a clear acrylic exterior. Innovative LED technology offers a creative ability to change the color temperature of the light with ACLED technology. A high-function, cool aesthetically pleasing flush mount reinvented with modern light. Energy efficient integrated LED's provide a long-lasting maintenance-free bright and even illumination throughout any space. NEW: Tri-CCT technology features a switch inside the canopy that is accessible during installation and allows you to toggle color temperatures between 2700K Warm - 3000 Warm White - or 3500K White to find and set the perfect color temperature for your space. This fixture is factory pre-set to a default setting of your choosing (30 in part number for 3000K, 35 in part number for 3500K, etc) and can be easily modified in the field during installation by the flip of a switch.
  • Dimensional shade with a clear acrylic exterior finished with a white interior.
  • Can be mounted on a wall or ceiling. Energy efficient integrated LED's provide a long-lasting maintenance-free bright and even illumination throughout any space.
  • AC LED technology - no driver or transformer required. Easily fits on a pancake junction box. Custom CCT options available by special order.
  • Smooth and continuous dimming with an electronic low voltage (ELV) or TRIAC dimmer.
  • High Powered Replaceable LED with CRI: 90, Rated Hours: 50,000, Color Temp: 2700K-3000K-3500K Adjustable.
  • Standards: ETL & cETL UL 1598 listed for Wet Locations. CEC Title 24 Compliant and ADA Compliant. Available in 3 finishes BN, BK, SS. BK and SS finishes are Wet Location Listed.

Manufacturer Resources

Product Specs

ADA Compliant:
No
Backplate Depth:
2.75"
Backplate Height:
0.75"
Backplate Width:
2.75"
Collection:
L Track
Complete System:
No
Energy Star:
No
Hardwired or Portable:
Hardwired
Location Rating:
Dry
Product Type:
Track Component
Safety Rating:
UL, cUL
Subcategory:
Track Connector
Base Material:
Aluminum
Location Indoor/ Outdoor:
Interior
Max Height:
0.75"
Reversible Mounting:
No
Title 24 Compliant:
No
Segment:
Lighting
SORTME:
1354
Product Voltage:
120
Product Length:
2.75"
Product Style:
Functional
Product Height:
0.75"
Product Category:
Track Lighting
Product Width:
2.75"

WAC Lighting WAC-LL-RIGHT – Frequently Asked Questions

1) Can this WAC L connector be used on a covered exterior porch or a garage?
No. The connector is rated for dry locations and listed for interior use only, so keep it out of damp or wet areas such as open soffits, bathrooms with shower spray, or exterior walls. For anything outdoors you need a wet-location-rated system instead.
2) Can I flip the right L connector around to make a left turn?
No. It isn't reversible, so a left-hand turn needs the matching left L connector. Order handing based on the direction the run turns as you follow it from the feed end.
3) How much ceiling space does the L Track corner connector take up, and how far does it drop below the ceiling?
The body measures 2.75 inches square with a height of 0.75 inch, and the backplate matches at 2.75 by 2.75 inches with a 0.75 inch profile. Allow 2.75 inches of clear ceiling in each direction at the corner and expect about 3/4 inch of projection, same as the track it joins.
4) What finishes does the WAC L Track right L connector come in, and can I match my existing track?
Three finishes: black (LL-RIGHT-BK), brushed nickel (LL-RIGHT-BN) and white (LL-RIGHT-WT). Order the connector in the same finish code as the track sections so the corner doesn't stand out on a painted ceiling.
5) Is this track connector UL listed, and does it count toward Title 24 or ADA requirements?
The connector carries UL and cUL safety listings, which covers most inspection requirements for a line-voltage track component. It is not Title 24 compliant, not ADA compliant and not Energy Star rated, so on a California or accessibility-driven job those boxes get checked by the fixtures and controls, not by this part.
6) What is the WAC L Track L connector made of?
Aluminum body, which is why it stays light enough to be supported by the track sections it joins rather than needing its own structural anchor.
