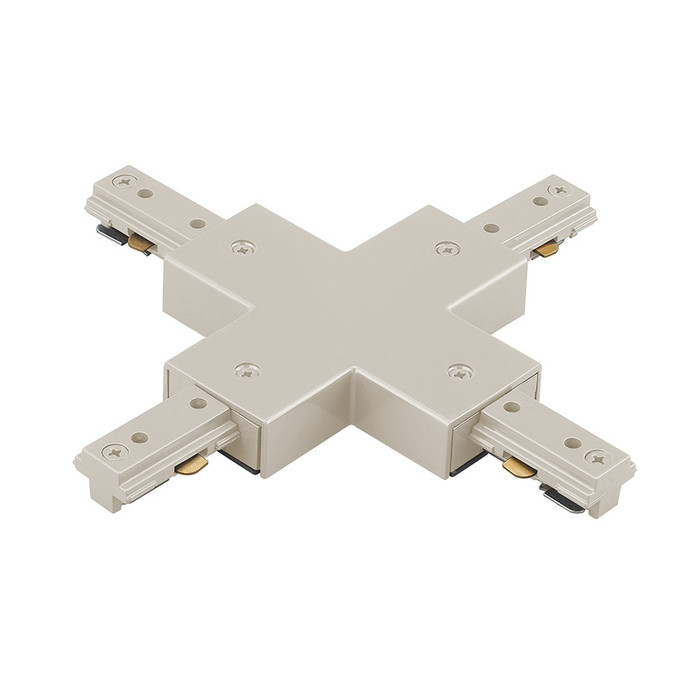

WAC Lighting L Track X Connector Track Component

WAC Lighting L Track X Connector Track Component

(No reviews yet) Write a Review

Model: WAC-LX
From the L Track Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$37.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Modern Forms WS-W54025 Mist LED Indoor or Outdoor Wall Light

A contemporary outdoor sconce inspired by the handmade colonial era glass window panes. The seeded and hammered glass is captivatingly framed in black or bronze. Energy efficient integrated LED's provide a long-lasting maintenance-free bright and even illumination throughout any space.
  • Weather resistant powder coated finishes in black or bronze.
  • Seeded, hammered blown glass is removable for easy, toolless cleaning.
  • AC LED technology - no driver or transformer required. Easily fits on a pancake junction box. 277V, 240V, or custom CCT options available by special order.
  • Smooth and continuous dimming with an electronic low voltage (ELV) dimmer.
  • High Powered Replaceable LED Module CRI: 90, Rated Hours: 54,000, Color Temp: 3000K
  • Standards: ETL & cETL UL 1598 IP65 listed for wet locations. CEC Title 24 Compliant.

Manufacturer Resources

Product Specs

ADA Compliant:
No
Backplate Depth:
4.13"
Backplate Height:
0.75"
Backplate Width:
4.13"
Collection:
L Track
Complete System:
No
Energy Star:
No
Hardwired or Portable:
Hardwired
Location Rating:
Dry
Product Type:
Track Component
Safety Rating:
UL, cUL
Subcategory:
Track Connector
Base Material:
Aluminum
Location Indoor/ Outdoor:
Interior
Max Height:
0.75"
Reversible Mounting:
No
Title 24 Compliant:
No
Segment:
Lighting
SORTME:
1271
Product Voltage:
120
Product Length:
4.13"
Product Style:
Functional
Product Height:
0.75"
Product Category:
Track Lighting
Product Width:
4.13"

WAC Lighting WAC-LX – Frequently Asked Questions

1) Will the LX connector fit Halo, Juno or Lightolier track?
No. The LX is built for WAC Lighting's L Track profile and is only confirmed to mate with L Track sections. Track profiles from other manufacturers use different channel geometry and conductor positions, so plan the intersection with L Track components throughout.
2) Can I install this track connector on a covered exterior walkway or in a parking garage?
No. The LX carries a dry location rating and is specified for interior use only. For canopies, covered walkways or any damp or wet area, you need a damp or wet rated track system instead.
3) What voltage is the WAC L Track X connector rated for?
120V line voltage, hardwired. It is a current-carrying connector on a 120V track circuit, so it is not for use on a low-voltage or 277V system.
4) What finishes does the WAC L Track X connector come in so it matches the rest of my track?
Three: black (LX-BK), brushed nickel (LX-BN) and white (LX-WT). Match the connector to the finish of the track sections and heads already on the ceiling, since the crossover sits in plain view at the intersection.
5) What is the WAC L Track X connector made of?
Aluminum body with a finished exterior in black, brushed nickel or white. Aluminum keeps the fitting light where it bridges four track runs on a ceiling-mounted or suspended layout.
6) Can the X connector be flipped to feed the track from the other direction?
No. The LX is not a reversible-mounting component, so orient it to the track layout as installed rather than planning to turn it over on site.
