ABUS K905 Safety Lockout Tagout Large Pouch Kit

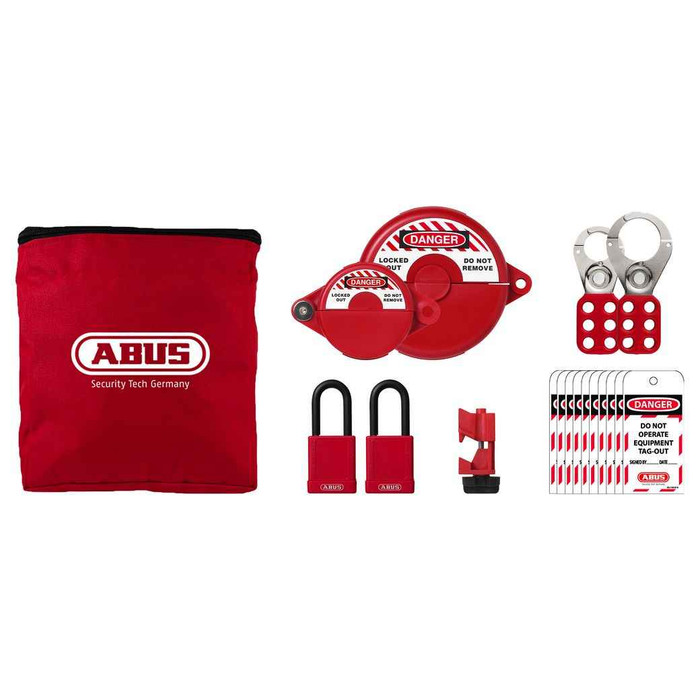

The K905 pouch kit ships with two 74/40 padlocks, a 1 inch hasp, a 1-1/2 inch hasp, one breaker lockout, a 1 inch to 2-1/2 inch valve cover, a 2-1/2 inch to 5 inch valve cover, three tags, three ties, and the large pouch to carry it all. It is a ready-to-use starter set for one or two authorized workers rather than a single-application device.

The kit covers two handwheel ranges: one cover for 1 inch to 2-1/2 inch wheels and a second for 2-1/2 inch to 5 inch wheels. Measure the outside diameter of the handwheel. Anything larger than 5 inches or a non-circular handle (gate lever, butterfly valve handle) is outside what these two covers enclose.

Two, using the padlocks supplied. The kit includes two 74/40 padlocks plus a 1 inch and a 1-1/2 inch hasp. A lockout hasp is what lets multiple workers apply their own lock to one isolation point, and it stays on until the last lock is removed. If your crew is larger than two, order additional padlocks so each authorized person has their own.

The tags are unrippable vinyl with a matte surface made to take moisture, so they survive damp mechanical rooms and washdown zones better than paper or card tags. Three tags and three ties come in the kit.

A pouch kit travels with the technician. The K905 packs padlocks, hasps, a breaker lockout, valve covers, tags and ties into one large pouch, which suits a roving maintenance tech or a contractor working across several buildings. A wall station is the better choice when you want a fixed, visible supply point at a specific panel or process area and you are equipping a whole shift from it.

Yes, one breaker lockout is included alongside the two 74/40 padlocks, so you can secure a circuit breaker in the off position and padlock it. The two valve covers in the same kit handle the mechanical and fluid side, which is why it works as a general-purpose kit for mixed electrical and piping isolations.

It is a commercial-duty kit. ABUS classes the K905 as commercial, and the contents (breaker lockout, valve covers, tags and ties) point at plant, facility and MRO energy-isolation work rather than residential use.

The lockout components are plastic, and ABUS specifies recycled plastic manufactured in the USA. Non-conductive plastic is what you want on breaker and valve lockouts near live electrical equipment.
