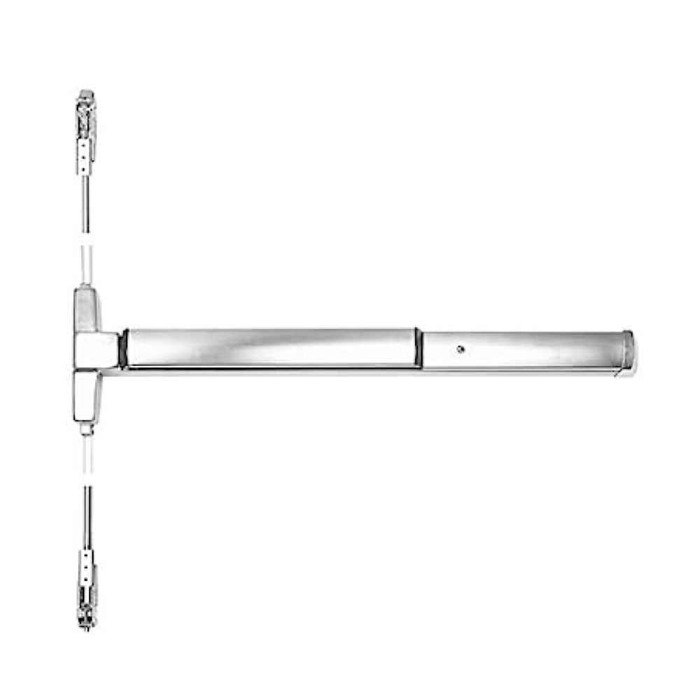

ACSI ED4800-W036 CORBIN RUSSWIN ED4000 SERIES CONCEALED VERTICAL ROD EXIT DEVICE WITH ELECTRIC LATCH RETRACTION OVERVIEW

ED4800-W036 Corbin Russwin ED4000 Series Concealed Vertical Rod Exit Device with Electric Latch Retraction 24 Volt AC/DC. Corbin Russwin ED4000 Narrow Stile Pushpad Series Concealed Vertical Rod Exit Device with Electric Latch Retraction, 24 Volt AC/DC, 36"" Door Width, Left Hand Reverse.

Introducing the Corbin Russwin ED4000 Series Concealed Vertical Rod Exit Device with Electric Latch Retraction: an Electronic Exit Device/Trim with Hex Key Dogging. It features Heavy Duty Construction, Low Projection for barrier-free code compliance, and Quiet Operation. Certified to meet ANSI and UL/cUL standards. Suitable for various applications, it accommodates door widths of 30" to 36" and is compatible with glass, aluminum, and metal doors. With electrified features and a 5-year warranty, our device ensures security and convenience. For doors measuring 7 feet in height.

Buy the ACSI ED4800-W036 Corbin Russwin ED4000 Series Concealed Vertical Rod Exit Device with Electric Latch Retraction 24 Volt AC/DC for easy installation and dependable door hardware solution.

ACSI ED4800-W036 CORBIN RUSSWIN ED4000 SERIES CONCEALED VERTICAL ROD EXIT DEVICE WITH ELECTRIC LATCH RETRACTION PRODUCT FEATURES

  • Device Type: Concealed Vertical Rod Device
  • Product Type: Electronic Exit Device/Trim
  • Dogging Options: Hex Key Dogging
  • Hand: Right Hand Reverse
  • Features: Heavy Duty Construction; Low Projection for Barrier-Free Code Compliance; Quiet Operation; Closed on All Sides No Projecting Parts to Inhibit Egress
  • Standards: ANSI A156.3, Type 6, Grade 1; ANSI A117.1; UL/cUL Listed; California State Fire Marshal pursuant to section 13144.1; NFPA 101 Life Safety Code
  • ADA Compliant: No
  • Finish Family: Dark Bronze
  • Function Family: Exit Only Device
  • Device Trim Function: Exit Only
  • Device Rating: Panic Exit Hardware
  • Bolt Throw: Top: 3/4"; Bottom: 5/8"
  • Latch Type: Deadlocking
  • Application: Single Door; Schools and Universities; Government and Municipal Buildings; Factories and Warehouses; Office and Retail Complexes; Transportation Facilities; Hotels and Conference Centers; Health Care, Religious Facilities; Theaters and Auditoriums.
  • Stile Width: 2 Inch
  • For Door Width: 30" to 36"
  • For Door Thickness: 1-3/4"
  • Device Bar Projection: 3-1/4" Active; 2-3/4" Dogged
  • Device Trim ANSI Function: 01
  • Warranty: 5 Years Limited
  • For Door Height: 7 Foot to 8 Foot
  • Strike Type: Top: Adjustable Roller Strike With Positive Locking Plate and Shims; Bottom: Flush Mounted
  • Voltage: 24 Volt
  • Finish Code: 613/US10B
  • Power Input: 24VDC-28VDC at 0.35A
  • Door Material: Glass; Aluminum; Metal
  • Electrified Features: Electric Latch Retraction
  • Included Components: Machine Screws
  • Finish: 613/US10B-Oil Rubbed Dark Bronze
  • Series: ED4800 Pushpad
  • Handing: Right Hand Reverse
  • Function: Exit Only
  • Finish Description: Oil Rubbed Dark Bronze
  • Manufacturer Parent: ACSI
  • Stile: Narrow Stile
  • Device Length: 36 Inch (3 Foot)
  • Fire Rated: No
  • Door Height: 7 Foot (84 Inches)

ACSI-ED4800-W036 ELECTRIC MOTOR LATCH RETRACTION AVAILABLE CONFIGURATION

ACSI ED4800-W036 Corbin Russwin ED4000 Series Concealed Vertical Rod Exit Device with Electric Latch Retraction 24 Volt AC/DC
ACSI ED4800-613-LHR-W036-1550K Corbin Russwin ED4000 Series Rim Exit Device Left Hand Reversible 613 - Satin Bronze Oil-Rubbed
ACSI ED4800-613-RHR-W036-1550K Corbin Russwin ED4000 Series Rim Exit Device Right Hand Reversible 613 - Satin Bronze Oil-Rubbed
ACSI ED4800-630-LHR-W036-1550K Corbin Russwin ED4000 Series Rim Exit Device Left Hand Reversible 630 - Satin Stainless
ACSI ED4800-630-RHR-W036-1550K Corbin Russwin ED4000 Series Rim Exit Device Right Hand Reversible 630 - Satin Stainless

Product Specs

Series:
1500 Series
Collection:
1500 Series
Product Type:
Exit Device Trim
Features:
Heavy Duty Construction, Low Projection for Barrier-Free Code Compliance, Quiet Operation, Closed on All Sides No Projecting Parts to Inhibit Egress
Subcategory:
Electric Motor Latch Retraction
ANSI/BHMA:
ANSI A156.3, Type 6, Grade 1, ANSI A117.1, UL/cUL Listed, California State Fire Marshal pursuant to section 13144.1, NFPA 101 Life Safety Code
Commercial/Residential:
Commercial
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Vertical Rod
Electronic:
Yes
Stile Type:
Wide Stile
Grade:
Grade 1
Door Hand Direction:
Left Hand Reverse
Dogging Configuration:
Hex Key Dogging
Product Category:
Exit Devices and Trim
Department:
Door Hardware
Product Size:
36

ACSI ED4800-613-RHR-W036-1550K – Frequently Asked Questions

1) Will the ACSI ED4800-W036 concealed vertical rod exit device fit my 36 inch wide, 1-3/4 inch thick door?
That is exactly the opening it is built for. The ED4800-W036 covers door widths of 30 to 36 inches, doors 1-3/4 inches thick, and door heights from 7 to 8 feet, with the device bar itself 36 inches long. Anything thinner or thicker than 1-3/4 inches is outside what this device is set up for, and 1-3/4 is the standard commercial door thickness so most metal and aluminum openings will match. It mounts on glass, aluminum, or metal doors.
2) What power supply do I need for the electric latch retraction on the ACSI ED4800-W036?
Plan for 24 volt AC/DC. The electric latch retraction motor draws 24VDC to 28VDC at 0.35A, so the supply and the wire run have to hold that voltage at the door under load. Latch retraction pulls the latches back and holds them, which is what lets the door free-swing for access control or high traffic periods. Hex key dogging is also on the device, so you can mechanically hold the pushpad down without power.
3) Is the ED4800-W036 exit device Grade 1, and what standards does it carry?
Grade 1 under ANSI A156.3, Type 6. It is also UL/cUL Listed, listed to ANSI A117.1, accepted by the California State Fire Marshal pursuant to section 13144.1, and referenced to the NFPA 101 Life Safety Code. It is rated panic exit hardware. One thing to settle before you spec it into a fire rated opening: this device is not fire rated, so if the drawing calls for fire exit hardware, you need a fire rated device instead.
4) Can you get in from the outside with the ACSI ED4800 exit only device?
No. Exit only means egress from the inside and no outside operating trim, so there is no lever, no pull, and no cylinder on the exterior face. Its ANSI trim function is 01. If the opening needs outside access, you need a device and trim combination in a keyed or lever function rather than exit only, matched to the device series you are installing.
5) What handing and finish do I have to specify when ordering the ACSI ED4800-W036?
Two choices go on the order: handing, left hand or right hand, and finish, either 613 oil rubbed bronze or 630 satin stainless steel. Both handings are offered in both finishes. Handing on a concealed vertical rod device is not field reversible in the way a simple lockset is, so get the hand of the opening right before you order. Machine screws are included with the device.
6) Will a 2 inch stile aluminum storefront door take the ED4800 concealed vertical rod device?
Yes, the ED4800-W036 is dimensioned for a 2 inch stile, which is why it suits aluminum and glass storefront doors as well as hollow metal. The pushpad sits low, 3-1/4 inches of projection when active and 2-3/4 inches when dogged, and it is closed on all sides with no projecting parts to catch during egress, so it stays out of the clear opening width on a tight vestibule.
7) The ACSI ED4800-W036 exit device is exit only with no outside trim - what adds a keyed outside lever to a Corbin Russwin exit device instead?
The ED4800-W036 concealed vertical rod device is an exit only device, so egress is from the pushpad and there is no outside operating trim. When the opening needs outside entry on a Corbin Russwin device, the trim is ordered to match the device series: the Corbin Russwin K157ET is a Grade 1 heavy duty key only trim with rose in classroom function for ED2200 and ED2400 series devices, and the Corbin Russwin x650ET is a Grade 1 heavy duty dummy lever trim with rose for ED7000 series devices. Match the trim to the device series on the door, since ED2200/ED2400 trim and ED7000 trim are not interchangeable with each other.
8) What is the difference between electric latch retraction on the ED4800-W036 and an electronic keypad trim like the Dormakaba E-Plex E5010?
They electrify different halves of the opening. The ED4800-W036 uses electric latch retraction at 24 volt AC/DC on a concealed vertical rod device, which pulls the top and bottom latches back on a signal from an access control system so the door is momentarily free-swinging - it needs a power supply and wiring run to the door. The Dormakaba E-Plex E5010 is an electronic push button exit device lever trim with key override in the E-Plex 5000 Series, Grade 1, for door thickness 1-3/8 inch to 2-1/4 inch; the credential is entered at the trim itself and it releases only the outside lever, leaving the device mechanical. Choose latch retraction when a central access control system has to unlock and relock the opening on schedule, and a keypad trim when the door is controlled at the door.
9) Can a blank exit device trim plate replace the ED4800-W036 on an exit only door?
No - those are two different parts of the same opening. The ED4800-W036 is the exit device itself: a concealed vertical rod pushpad device certified to ANSI A156.3 Type 6 Grade 1 with UL/cUL listing, top bolt throw 3/4 inch and bottom bolt throw 5/8 inch. A blank trim is only the outside plate that covers the through-bolt prep where no lever or cylinder is used - the Sargent 802 is a Grade 1 blank plate trim with GTB design for PE80 Series devices and is not wood door compatible, the Von Duprin 379L-BE is a Grade 1 heavy duty blank escutcheon trim for 55 Series rim exit devices, and the Detex 03WS is a trim plate with a cylinder hole for 10, 20, 21 and 27 Series devices. A blank trim needs a device behind it; it does not latch or release anything on its own.
10) Why choose a concealed vertical rod exit device over a rim device on a storefront door?
Concealed vertical rod puts the rods inside the door and latches top and bottom, so nothing is exposed on the face of the door and the bottom bolt picks up the threshold. A rim device latches only into a strike at the jamb or into a mullion between a pair, which is simpler to install and easier to service but leaves hardware on the door face. Choose concealed vertical rod when the look matters, when the door is glass or aluminum with a 2 inch stile, and when you want two-point latching on a single leaf.
11) Is the ED4800-W036 heavy duty enough for a school or municipal building entrance?
It is a commercial Grade 1 device with heavy duty construction and quiet operation, and the applications it is listed for include schools and universities, government and municipal buildings, factories and warehouses, office and retail complexes, transportation facilities, hotels and conference centers, health care and religious facilities, and theaters and auditoriums. The latch is deadlocking, so the top bolt resists being forced back once thrown. For standardizing across a facility, the same device is offered in two finishes and both hands, which keeps one part family across openings.
12) Can I use an exit device trim like the Sargent 814 or a Corbin Russwin K157ET with the ED4800 concealed vertical rod device?
No. Those trims are built for other device series, not for the ED4800. The Sargent 814 PSB nightlatch pull is an 80 Series trim, and the Corbin Russwin K157ET key only trim is for ED2200 and ED2400 devices. Exit device trim is series specific, and the ED4800-W036 is an exit only device with ANSI trim function 01 to begin with, so there is no outside trim to add. Match trim to the exact device series you have on the door.
13) Do I need a cylinder or extra parts to dog the ED4800 pushpad open during business hours?
Dogging on the ED4800-W036 is hex key dogging, so it takes a hex key rather than a cylinder to hold the pushpad down. Dogged, the bar projects 2-3/4 inches instead of 3-1/4 inches. If your building standard is cylinder dogging so the same key controls it, this device will not match that standard.
14) Does a Detex 90 Series removable mullion work with a concealed vertical rod exit device?
No. The Detex 90KR is a keyed removable mullion in the 90 Series for rim exit devices - it gives a pair of doors a vertical post for rim latches to strike, and it is removed to open the full width. A concealed vertical rod device such as the ED4800-W036 latches into the head frame and the floor rather than into a mullion: its strikes are an adjustable roller strike with positive locking plate and shims at the top and a flush mounted strike at the bottom, and it is applied on single door openings. A mullion is a rim-device solution and does not substitute for the vertical rod hardware.
15) Is there a way to get controlled outside access on an exit device opening without running power like the ED4800-W036 requires?
Yes - keyless mechanical panic trim puts a code at the door with no power supply, no transformer and no wiring. The Lockey 115P is a heavy duty keyless passage lever panic trim with a 1150 lock body for doors 1 3/16 inch to 2 inch thick, and the Lockey 285P is a keyless mechanical panic trim with lever handle for the same 1 3/16 inch to 2 inch range. Both are mechanical combination trim, so there is no scheduled unlock or remote release; the ED4800-W036 draws 24VDC-28VDC at 0.35A precisely because its latch retraction is driven from an access control system. Note the Lockey trims are sized for doors up to 2 inch thick while the ED4800-W036 device is for 1-3/4 inch doors.
16) What outside trim function should be specified when an exit device opening needs classroom keying rather than exit only?
Classroom function trim keeps the outside lever locked and unlocked by key, which is a different operating decision from the ED4800-W036, whose device trim function is exit only with ANSI function 01. Classroom trim options across brands include the Arrow SRX87 Sierra lever with rose in classroom function for S1150, S1250, ED910 and PEC910 Series devices, fitting 1-3/4 inch doors; the Detex 08BN classroom S-lever trim with mortise cylinder for Value Series devices in the BN Series; and the Corbin Russwin K157ET, a Grade 1 heavy duty key only trim in classroom function for ED2200 and ED2400 Series. Each is series-specific, so confirm the device family on the door before ordering.
17) For an exit device door that only needs a pull on the outside, what are the alternatives to a lever trim?
Pull trim gives the outside a grip with no latch operation, which suits doors where entry is controlled elsewhere or not at all - the same outside condition the ED4800-W036 creates by being exit only. The Sargent 814 PSB is a heavy duty night latch pull trim in the 80 Series, where the key retracts the latch and the pull opens the door. The Sargent 862 is a Grade 1 offset pull handle for exit devices in the P800 Series. The Detex 0A is an A/AN Series straight pull trim with blank escutcheon for Value Series exit devices. Night latch pull adds a cylinder for keyed entry; the offset and straight pulls are pull-only.
18) Which exit device trim functions are available if the outside lever needs to be always unlocked instead of key controlled?
Passage function leaves the outside lever free at all times with no cylinder. The Deltana LTED80LP is a lever trim for Exit Device 80 in passage function, and the Lockey 115P is a heavy duty keyless passage lever panic trim with a 1150 lock body for 1 3/16 inch to 2 inch doors. For a locked outside lever released by key each time, storeroom function applies - the Deltana DDS-36 for Exit Device 80 and the Deltana LTED60LST for Exit Device 60 are both storeroom function, and the Deltana LTED80LS for Exit Device 80 is entry function. All of these change the outside condition only; egress on the ED4800-W036 side is the pushpad, which is closed on all sides with no projecting parts to inhibit egress.
