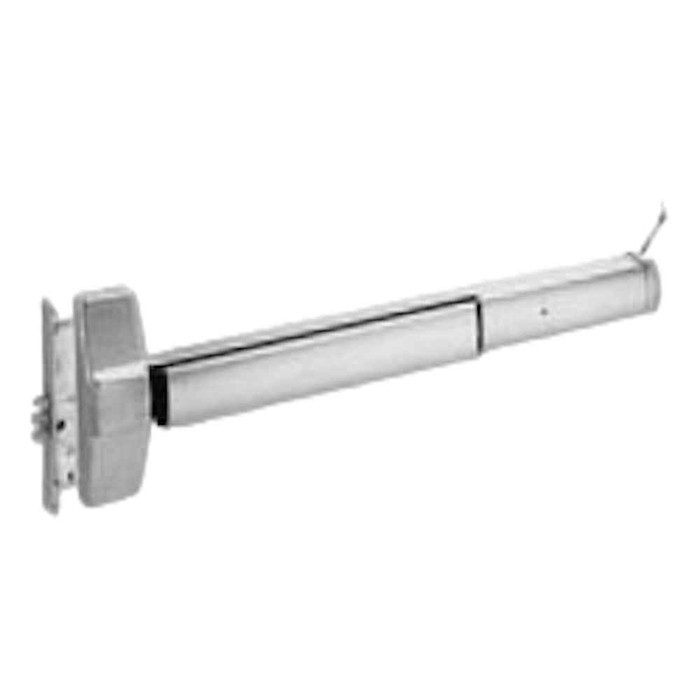

ACSI ACSI ED5600L-W036 Corbin Russwin ED5000 Pushpad Series Mortise Exit Device with Electric Latch Retraction 24 Volt AC/DC Handed ACSI-ED5600L-W036

ACSI ED5600L-W036 Corbin Russwin ED5000 Pushpad Series Mortise Exit Device with Electric Latch Retraction 24 Volt AC/DC Handed

(No reviews yet) Write a Review

Model: ACSI-ED5600L-613-RHR-W036-1550K
From the 1500 Series Collection
$3,253.00
$2,914.00
Selected Finish is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,253.00
$2,914.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ACSI ED5600L-W036 CORBIN RUSSWIN ED5000 PUSHPAD SERIES MORTISE EXIT DEVICE WITH ELECTRIC LATCH RETRACTION OVERVIEW

ED5600L-W036 Corbin Russwin ED5000 Pushpad Series Mortise Exit Device with Electric Latch Retraction 24 Volt AC/DC Handed.

Corbin Russwin ED5000 Pushpad Series Mortise Exit Device with Electric Latch Retraction, 24 Volt AC/DC, 36"" Door Width, Handed.

Buy the ACSI ED5600L-W036 Corbin Russwin ED5000 Pushpad Series Mortise Exit Device with Electric Latch Retraction 24 Volt AC/DC Handed for easy installation and dependable door hardware solution.

ACSI ED5600L-W036 CORBIN RUSSWIN ED5000 PUSHPAD SERIES MORTISE EXIT DEVICE WITH ELECTRIC LATCH RETRACTION OVERVIEW

  • Device Type: Mortise Device
  • Product Type: Electronic Exit Device/Trim
  • Dogging Options: Hex Key Dogging
  • Features: Device is Non-Handed; Mortise Lock Body is Handed, But Field Reversible.
  • Standards: ANSI A156.3, Type 3, Grade 1; ANSI A117.1; California State Fire Marshal pursuant to section 13144.1; NFPA 101 Life Safety Code
  • Bolt Throw: 3/4"
  • Latch Type: Deadlocking
  • Application: Single Doors; Schools, Factories, Hotels, Theaters, Office, Retail Complexes and Government Buildings
  • Finish Code: 613/US10B
  • Stile Width: 4-1/2 Inch
  • ADA Compliant: No
  • Device Rating: Panic Exit Hardware
  • Door Material: Wood
  • Finish Family: Dark Bronze
  • For Door Width: 30" to 36"
  • Function Family: Exit Only Device
  • For Door Thickness: 1-3/4"
  • Device Bar Projection: 3-1/4" Active; 2-3/4" Dogged
  • Voltage: 24 Volt
  • Warranty: 5 Years Limited
  • Power Input: 24VDC at 330 mA
  • Strike Type: ANSI Curved Lip, 4-7/8" X 1-1/4" X 1-1/4" Lip to Center
  • Device Trim Function: Device: Exit Only; Lock: Classroom; Passage
  • Electrified Features: Electric Latch Retraction
  • Device Trim ANSI Function: Device: 01; Lock: 08; 14
  • Hand: Right Hand Reverse
  • Trim Style: Lock: Lever or Flat Trim
  • Included Components: Machine Screws and Wood Door Fasteners
  • Stile: Wide Stile
  • Finish: 613/US10B-Oil Rubbed Dark Bronze
  • Series: ED5600 Pushpad
  • Function: Exit Only
  • Device Length: 36 Inch (3 Foot)
  • Fire Rated: No
  • Finish Description: Oil Rubbed Dark Bronze
  • Manufacturer Parent: ACSI
  • Handing: Right Hand Reverse

ACSI-ED5600L-W036 ELECTRIC MOTOR LATCH RETRACTION AVAILABLE CONFIGURATION

ACSI ED5600L-W036 Corbin Russwin ED5000 Pushpad Series Mortise Exit Device with Electric Latch Retraction 24 Volt AC/DC Handed
ACSI ED5600L-613-LHR-W036-1550K Corbin Russwin ED5000 Pushpad Series Mortise Exit Device Left Hand Reversible 613 - Satin Bronze Oil-Rubbed
ACSI ED5600L-613-RHR-W036-1550K Corbin Russwin ED5000 Pushpad Series Mortise Exit Device Right Hand Reversible 613 - Satin Bronze Oil-Rubbed
ACSI ED5600L-630-LHR-W036-1550K Corbin Russwin ED5000 Pushpad Series Mortise Exit Device Left Hand Reversible 630 - Satin Stainless
ACSI ED5600L-630-RHR-W036-1550K Corbin Russwin ED5000 Pushpad Series Mortise Exit Device Right Hand Reversible 630 - Satin Stainless

Product Specs

Series:
1500 Series
Collection:
1500 Series
Product Type:
Exit Device Trim
Features:
Device is Non-Handed, Mortise Lock Body is Handed, But Field Reversible
Subcategory:
Electric Motor Latch Retraction
Latch Throw:
3/4"
ANSI/BHMA:
ANSI A156.3, Type 3, Grade 1, ANSI A117.1, California State Fire Marshal pursuant to section 13144.1, NFPA 101 Life Safety Code
Commercial/Residential:
Commercial
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Mortise
Electronic:
Yes
Lock Type:
Mortise
Grade:
Grade 1
Stile Type:
Wide Stile
Product Size:
36
Dogging Configuration:
Hex Key Dogging
Product Category:
Exit Devices and Trim
Department:
Door Hardware

ACSI ACSI-ED5600L-613-RHR-W036-1550K – Frequently Asked Questions

1) Will the ACSI ED5600L electric latch retraction exit device fit a 36 inch wood door?
Yes. The ED5600L-W036 is built for door widths of 30 to 36 inches with a 36 inch (3 foot) device length, and the door material called out is wood. Machine screws and wood door fasteners come with it. Door thickness is 1-3/4 inches, the standard commercial thickness, and it needs a wide stile of at least 4-1/2 inches to take the device.
2) Does the ACSI ED5600L mortise exit device have to be ordered handed?
The device itself is non-handed, but the mortise lock body is handed. It is field reversible, so a lock body that arrives wrong hand can be flipped on site. Orderable handing is Left Hand or Right Hand in either finish.
3) What power supply do I need for the ACSI ED5600L electric latch retraction device?
It runs on 24 volt AC/DC, drawing 24VDC at 330 mA. Size the supply for that current per leaf, and plan a transfer path (hinge or door loop) to get power into the door, since latch retraction is motor driven at the device.
4) Is this exit device fire rated?
No. The ED5600L is listed as panic exit hardware, not fire exit hardware, and it carries hex key dogging, which is not permitted on a fire door. For a labeled opening you need a fire rated device without dogging. It does meet ANSI A156.3 Type 3 Grade 1, ANSI A117.1, California State Fire Marshal section 13144.1, and NFPA 101 Life Safety Code.
5) Will this latch into the strike I already have in the frame?
The device uses a 3/4 inch deadlocking bolt throw and is supplied for an ANSI curved lip strike, 4-7/8 x 1-1/4 inches with 1-1/4 inch lip to center. If your frame already has an ANSI 4-7/8 inch mortise strike prep, it drops in. A rim device strike or a T-strike prep will not work with a mortise body.
6) I need credential control at the door instead of a hardwired 24V latch retraction setup - what should I look at?
The ACSI ED5600L-W036 achieves access control through electric latch retraction powered at 24 volt AC/DC, meaning the control decision is made upstream by an access system. If you want the credential handled at the door itself, the BEST EXZ EZ Series electronic keypad exit device trim offers keypad entry with key override, and the Dormakaba E-Plex E5010 is an electronic push button exit device lever trim with key override, Grade 1, fitting doors 1-3/8 inch to 2-1/4 inch thick. Both are standalone keypad trims that mount to an existing exit device rather than motorized devices.
7) The ED5600L is exit-only - what do I order if I need a keyed lever on the outside of a classroom door?
The ACSI ED5600L-W036 carries an exit only device function with hex key dogging, so the outside is controlled electrically rather than by a keyed lever. For a mechanical classroom lever on the pull side, the Corbin Russwin K157ET is a Grade 1, heavy duty key only trim for ED2200 and ED2400 exit devices with rose, the Arrow SRX87 is a classroom function Sierra lever with rose for the S1150, S1250, ED910 and PEC910 series on 1-3/4 inch doors, and the Detex 08BN is a classroom S-lever trim with a mortise cylinder for the Value Series. Each is matched to its own device series, so confirm the device family on the door before ordering.
8) My opening is a pair of doors - does the ACSI ED5600L work, and what else do I need?
The ACSI ED5600L-W036 is specified for single doors, in a 36 inch device length for 30 inch to 36 inch door widths. For a pair with rim devices, a removable mullion carries the strike point between leaves - the Detex 90KR is a 90 Series keyed removable mullion for rim exit devices. A mullion pairs with rim hardware, not with a mortise device, so the pair of doors will need rim devices rather than the ED5600L mortise body.
9) Should I use a mortise exit device or a rim device on a single door?
The ED5600L is a mortise device for single doors, and it needs the door edge mortised for the lock body plus an ANSI strike prep in the frame. That is the right call when the opening is already prepped for a mortise lock or when you want the lock body concealed in the door edge. On a pair of doors or where you want the simplest retrofit into a flat door edge, a rim device with a removable mullion such as the Detex 90 Series keyed removable mullion is the usual approach instead.
10) Is this device ADA compliant?
The ED5600L is not marked ADA compliant, though it is built to ANSI A117.1. Where an accessible route requires ADA-compliant operable hardware, confirm the specified device carries that claim before you commit it to a schedule.
11) Can I use a Sargent 802 blank plate or Von Duprin 379L-BE escutcheon in place of the ACSI ED5600L on a wood door?
No - those are outside trims, not exit devices. The Sargent 802 is a Grade 1 blank plate exit device trim in the PE80 Series with GTB design and is not wood door compatible, and the Von Duprin 379L-BE is a Grade 1 heavy duty blank escutcheon trim for 55 Series rim exit devices. Both provide a no-operation outside face and rely on a device already mounted on the door. The ACSI ED5600L-W036 is a complete mortise exit device with electric latch retraction, supplied with machine screws and wood door fasteners for 1-3/4 inch wood doors.
12) What is the difference between the ACSI ED5600L storeroom-style operation and a Deltana lever trim for 80 or 60 series devices?
The ACSI ED5600L-W036 pairs an exit only device with a mortise lock body offering classroom and passage functions, ANSI functions 08 and 14, Grade 1 under ANSI A156.3 Type 3. The Deltana trims are outside lever trims for their own device families and are selected by function: the DDS-36 and LTED60LST are storeroom function for the 80 and 60 series devices respectively, the LTED80LP is passage function, and the LTED80LS is entry function. Storeroom keeps the lever always locked with key retraction; passage leaves it always free. Match the function to how the door is used, then match the trim to the device series on the door.
13) I only need a pull on the outside, not a lever or electrified trim - what replaces the ED5600L approach?
The ACSI ED5600L-W036 is an electronic device with 24 volt electric latch retraction and hex key dogging. If the outside only needs a grab point, pull trims are the simpler route: the Sargent 814 PSB is a heavy duty nightlatch pull trim for 80 Series devices, the Sargent 862 is a Grade 1 offset pull handle for exit devices in the P800 Series, and the Detex 0A is an A/AN Series straight pull trim with a blank escutcheon for Value Series exit devices. Nightlatch pulls allow key-controlled entry; plain pulls and blank escutcheons give no outside entry at all.
14) Can I substitute a dummy lever trim like the Corbin Russwin x650ET for the ACSI ED5600L?
No. The Corbin Russwin x650ET is a Grade 1, heavy duty dummy lever trim with rose for ED7000 Series exit devices - a dummy lever does not operate any latch, it is a fixed pull. The ACSI ED5600L-W036 is a mortise exit device with a 3/4 inch deadlocking bolt throw and electric latch retraction that actively withdraws the latch on signal. They serve opposite purposes and the x650ET is also built for a different device series.
15) What finishes does the ACSI ED5600L come in?
Two: 613/US10B oil rubbed dark bronze and 630 satin stainless steel. Both are available in Left Hand and Right Hand. If you are matching other openings in a building running satin stainless pulls and closers, take the 630.
16) How much does the push pad stick out from the door?
Projection is 3-1/4 inches active and 2-3/4 inches when dogged down. Worth checking against a corridor clear width or anything mounted on the adjacent wall inside the door swing.
17) Can I dog this device open during business hours?
Yes, it takes hex key dogging, so you can hold the pad depressed and leave the door push-pull during the day. Dogged, the pad projection drops from 3-1/4 to 2-3/4 inches. Dogging is a mechanical hold and works with power off.
