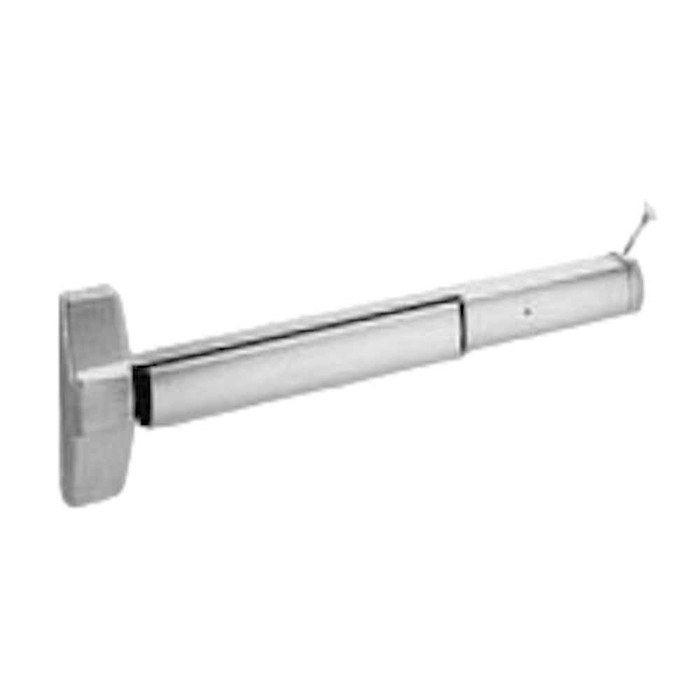

ACSI ACSI ED5200A-W036 Corbin Russwin ED5000 Pushpad Series 3 Hour Fire Rated Rim Exit Device with Electric Latch Retraction 24 Volt AC/DC ACSI-ED5200A-W036

ACSI ED5200A-W036 Corbin Russwin ED5000 Pushpad Series 3 Hour Fire Rated Rim Exit Device with Electric Latch Retraction 24 Volt AC/DC

(No reviews yet) Write a Review

Model: ACSI-ED5200A-613-W036-1550K
From the 1500 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,936.00
$2,639.24
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ACSI ED5200A-W036 CORBIN RUSSWIN ED5000 PUSHPAD SERIES 3 HOUR FIRE RATED RIM EXIT DEVICE WITH ELECTRIC LATCH RETRACTION OVERVIEW

ED5200A-W036 Corbin Russwin ED5000 Pushpad Series 3 Hour Fire Rated Rim Exit Device with Electric Latch Retraction 24 Volt AC/DC.

Corbin Russwin ED5000 Pushpad Series 3 Hour Fire Rated Rim Exit Device with Electric Latch Retraction, 24 Volt AC/DC, 36"" Door Width.

Buy the ACSI ED5200A-W036 Corbin Russwin ED5000 Pushpad Series 3 Hour Fire Rated Rim Exit Device with Electric Latch Retraction 24 Volt AC/DC for easy installation and dependable door hardware solution.

ACSI ED5200A-W036 CORBIN RUSSWIN ED5000 PUSHPAD SERIES 3 HOUR FIRE RATED RIM EXIT DEVICE WITH ELECTRIC LATCH RETRACTION PRODUCT FEATURES

  • Device Type: Rim Device
  • Product Type: Electronic Exit Device/Trim
  • Dogging Options: Electric Dogging
  • Standards: ANSI A156.3, Type 1, Grade 1; ANSI A117.1; UL /cUL Listed; California State Fire Marshal pursuant to section 13144.1; NFPA 80 Life Safety Code
  • Bolt Throw: 3/4"
  • Latch Type: Deadlocking
  • Application: Single Doors; Schools, Factories, Hotels, Theaters, Office, Retail Complexes and Government Buildings
  • Finish Code: 613/US10B
  • Stile Width: 4-1/2 Inch
  • ADA Compliant: No
  • Device Rating: Fire Exit Hardware
  • Door Material: Wood
  • Finish Family: Dark Bronze
  • For Door Width: 30" to 36"
  • Function Family: Exit Only Device
  • For Door Thickness: 1-3/4"
  • Device Bar Projection: 3-1/4" Active; 2-3/4" Dogged
  • Voltage: 24 Volt
  • Warranty: 5 Years Limited
  • Power Input: 24VDC at 0.35A
  • Strike Type: 3/8" Diameter Roller Strike With Positive Locking Plate and Shims
  • Device Trim Function: Exit Only
  • Electrified Features: Electric Latch Retraction
  • Device Trim ANSI Function: 01
  • Included Components: Machine Screws and Wood Door Fasteners
  • Stile: Wide Stile
  • Finish: 613/US10B-Oil Rubbed Dark Bronze
  • Series: ED5200 Pushpad
  • Function: Exit Only
  • Device Length: 36 Inch (3 Foot)
  • Fire Rated: Yes
  • Finish Description: Oil Rubbed Dark Bronze
  • Manufacturer Parent: ACSI

ACSI-ED5200A-W036 ELECTRIC MOTOR LATCH RETRACTION AVAILABLE CONFIGURATION

ACSI ED5200A-W036 Corbin Russwin ED5000 Pushpad Series 3 Hour Fire Rated Rim Exit Device with Electric Latch Retraction 24 Volt AC/DC
ACSI ED5200A-613-W036-1550K Corbin Russwin ED5000 Pushpad Series Rim Exit Device 613 - Satin Bronze Oil-Rubbed
ACSI ED5200A-630-W036-1550K Corbin Russwin ED5000 Pushpad Series Rim Exit Device 630 - Satin Stainless

Product Specs

Subcategory:
Electric Motor Latch Retraction
Series:
1500 Series
Collection:
1500 Series
Product Type:
Exit Device Trim
Latch Throw:
3/4"
ANSI/BHMA:
ANSI A156.3, Type 1, Grade 1, ANSI A117.1, UL /cUL Listed, California State Fire Marshal pursuant to section 13144.1, NFPA 80 Life Safety Code
Commercial/Residential:
Commercial
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Device - Rim
Electronic:
Yes
Grade:
Grade 1
Stile Type:
Wide Stile
Dogging Configuration:
Electric Dogging
Latch Specification:
Deadlocking
Product Category:
Exit Devices and Trim
Department:
Door Hardware
Product Size:
36

ACSI ACSI-ED5200A-613-W036-1550K – Frequently Asked Questions

1) Will the ACSI ED5200A-W036 electric latch retraction exit device fit a 36 inch wood door?
Yes. The ED5200A-W036 is a 36 inch (3 foot) device sized for door widths of 30 to 36 inches, and it's built for wood doors at 1-3/4 inch thickness. It needs a wide stile of at least 4-1/2 inches to mount. Machine screws and wood door fasteners come with it.
2) Is this ACSI Corbin Russwin ED5000 rim device fire rated, and what standards does it meet?
It's fire exit hardware, 3 hour fire rated, and carries ANSI A156.3 Type 1 Grade 1, ANSI A117.1, UL/cUL Listed, California State Fire Marshal per section 13144.1, and NFPA 80. Note that fire exit hardware has no mechanical dogging, which is why this one uses electric dogging instead.
3) What power supply do I need for the ED5200A electric latch retraction device?
Power input is 24VDC at 0.35A, and the device is listed as 24 Volt AC/DC. Size the supply for that draw per leaf, and run the wiring through an electric power transfer at the hinge edge since the motor sits in the device itself.
4) Can the ED5200A be used on a pair of doors?
No. This is a rim device for single doors. On a pair without a center mullion you'd need vertical rod devices; on a pair with a mullion, rim devices work but you have to order the mullion separately, such as the Detex 90 Series keyed removable mullion for rim exit devices.
5) Will the ED5200A latch into my existing rim strike?
It ships with its own strike, a 3/8 inch diameter roller strike with positive locking plate and shims, and the deadlocking latch has a 3/4 inch throw. Plan on using the supplied strike rather than an existing one, since the shims are what set the gap on a fire rated opening.
6) Can I add a lever or key trim to this exit device for outside entry?
Not as configured. The ED5200A-W036 is an exit only device, ANSI trim function 01, meaning there is no outside operating trim, just egress from the inside. Outside access is handled by the latch retraction motor when the access control system energizes it. If you need mechanical key access on an ED-series Corbin Russwin device, key trim like the K157ET is built for the ED2200/ED2400 devices, not this one.
7) Will this exit device fit a narrow stile aluminum storefront door?
No. The ED5200A is a wide stile device needing 4-1/2 inches of stile, and it's specified for wood doors. A narrow stile aluminum glass door needs a narrow stile rim device instead.
8) What should I use on a pair of doors instead of the ACSI ED5200A-W036 rim exit device?
The ACSI ED5200A-W036 is specified for single doors, so a pair opening needs a mullion between the two leaves for rim devices to latch. The Detex 90 Series keyed removable mullion is built for rim exit devices and can be taken out to open the full width when needed.
9) I need outside lever access on the ACSI ED5200A-W036 opening - what do I add or use instead?
The ACSI ED5200A-W036 is an exit only device with no outside trim, so anyone outside cannot get in. If the opening needs keyed lever access from the pull side, Corbin Russwin offers the K157ET Grade 1 key only trim for ED2200/ED2400 devices in a classroom function, and the Detex 08BN classroom S-lever trim with mortise cylinder covers the same need on Detex Value Series devices. Match the trim to the device series it is built for.
10) How much does the push bar stick out into the opening?
Device bar projection is 3-1/4 inches active and 2-3/4 inches when dogged (latch retracted). Use the 3-1/4 inch figure when checking clearance against door swing, adjacent walls, or a second leaf.
11) Is the ED5200A ADA compliant?
The product data lists ADA Compliant: No for this device, though it does reference ANSI A117.1. If barrier-free compliance is a hard requirement on your opening, verify the operating force and mounting height against your local code before you spec it.
12) Why use electric latch retraction instead of a keypad or mechanical panic trim?
Electric latch retraction pulls the latch back on a signal from a card reader, push button, or access control panel, so the door can be pushed open free from outside during business hours and relatched automatically. That is the right choice when the opening is on an access control system. If there is no system and you just need coded entry, a standalone keypad trim like the Dormakaba E-Plex E5010 or a keyless mechanical panic trim like the Lockey 285P is a simpler path, but neither of those is this device.
13) Is this device suitable for a school or government building corridor door?
Yes. It's a Grade 1 commercial device intended for schools, factories, hotels, theaters, offices, retail complexes and government buildings, with fire exit hardware rating for rated openings. Standardizing it across a facility works as long as every opening is a single wood door, 1-3/4 inch thick, with at least a 4-1/2 inch stile.
14) If I want keypad credential entry rather than remote latch retraction, what are my options?
The ACSI ED5200A-W036 retracts its latch on a signal from an access control system over 24 volt AC/DC, so credentials are read elsewhere. If the credential should live at the door itself, the BEST EXZ EZ Series electronic keypad exit device trim has key override, and the Dormakaba E-Plex E5010 electronic push button exit device lever trim with key override is Grade 1 and fits doors 1-3/8 inch to 2-1/4 inch thick. Both are trims that mount to a compatible exit device.
15) Can I order a Sargent or Von Duprin blank trim to dress the outside of the ACSI ED5200A-W036?
Those are not interchangeable across device families. The ACSI ED5200A-W036 is a Corbin Russwin ED5000 pushpad series rim device, while the Sargent 802 blank plate trim is built for the PE80 series and is listed as not wood door compatible, and the Von Duprin 379L-BE blank escutcheon is for 55 Series rim devices. Since the ED5200A-W036 is configured for a 1-3/4 inch wood door, confirm the trim is cataloged for the ED5000 series and the door material before ordering.
16) What finishes does the ACSI ED5200A-W036 come in?
Two: 613/US10B oil rubbed dark bronze and 630 satin stainless steel. 630 is the usual choice for matching existing commercial stainless hardware; 613 for dark bronze openings.
17) I need a dummy or pull-only exterior on a door with an exit device - what works?
For openings where the outside should offer a grip but no latch operation, Corbin Russwin makes a Grade 1 dummy lever trim with rose for ED7000 Series exit devices, and Sargent offers the 862 offset pull handle in the Grade 1 P800 Series along with the Detex A Series straight pull trim with blank escutcheon for Value Series devices. Each is matched to its own device family, so specify the trim that corresponds to the device on the door.
18) Which lever trims cover storeroom, passage, and entry functions if the exit only ACSI device is not the right function?
The ACSI ED5200A-W036 is an exit only device. Where the outside needs to operate, Deltana offers lever trim in three functions for its exit devices: the DDS-36 and LTED60LST in storeroom function, the LTED80LP in passage function, and the LTED80LS in entry function. Storeroom keeps the outside lever locked at all times, passage leaves it always free, and entry allows it to be locked or unlocked.
