ACSI ACSI ED5200-W036 Corbin Russwin ED5000 Pushpad Series Rim Exit Device with Electric Latch Retraction 24 Volt AC/DC ACSI-ED5200-W036

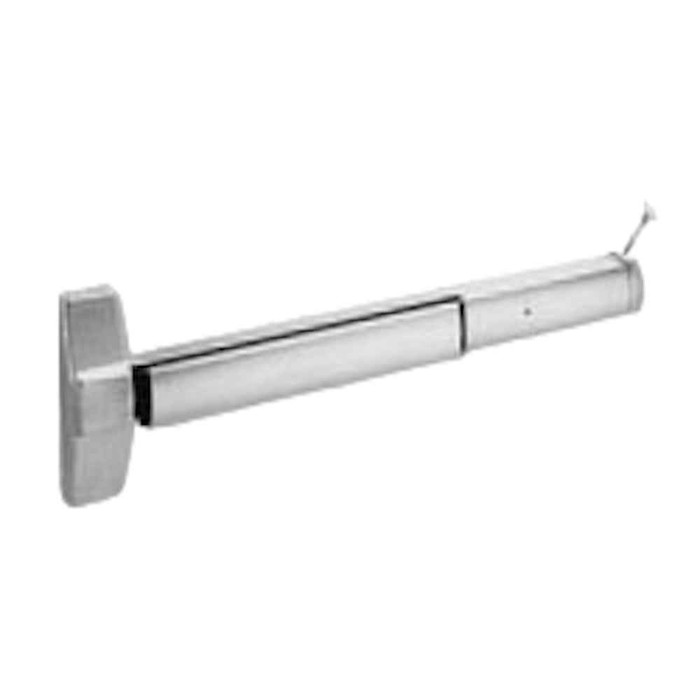

ACSI ED5200-W036 Corbin Russwin ED5000 Pushpad Series Rim Exit Device with Electric Latch Retraction 24 Volt AC/DC

(No reviews yet) Write a Review

Model: ACSI-ED5200-613-W036-1550K
From the 1500 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,689.00
$2,417.22
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ACSI ED5200-W036 CORBIN RUSSWIN ED5000 PUSHPAD SERIES RIM EXIT DEVICE WITH ELECTRIC LATCH RETRACTION OVERVIEW

ED5200-W036 Corbin Russwin ED5000 Pushpad Series Rim Exit Device with Electric Latch Retraction 24 Volt AC/DC.

Corbin Russwin ED5000 Pushpad Series Rim Exit Device with Electric Latch Retraction, 24 Volt AC/DC, 36"" Door Width.

Buy the ACSI ED5200-W036 Corbin Russwin ED5000 Pushpad Series Rim Exit Device with Electric Latch Retraction 24 Volt AC/DC for easy installation and dependable door hardware solution.

ACSI ED5200-W036 CORBIN RUSSWIN ED5000 PUSHPAD SERIES RIM EXIT DEVICE WITH ELECTRIC LATCH RETRACTION PRODUCT FEATURES

  • Device Type: Rim Device
  • Product Type: Electronic Exit Device/Trim
  • Dogging Options: Hex Key Dogging
  • Standards: ANSI A156.3, Type 1, Grade 1; ANSI A117.1; UL /cUL Listed; California State Fire Marshal pursuant to section 13144.1; NFPA 101 Life Safety Code
  • ADA Compliant: No
  • Finish Family: Dark Bronze
  • Function Family: Exit Only Device
  • Device Trim Function: Exit Only
  • Device Rating: Panic Exit Hardware
  • Bolt Throw: 3/4"
  • Latch Type: Deadlocking
  • Application: Single Doors; Schools, Factories, Hotels, Theaters, Office, Retail Complexes and Government Buildings
  • Stile Width: 4-1/2 Inch
  • For Door Width: 30" to 36"
  • For Door Thickness: 1-3/4"
  • Device Bar Projection: 3-1/4" Active; 2-3/4" Dogged
  • Device Trim ANSI Function: 01
  • Warranty: 5 Years Limited
  • Strike Type: 3/8" Diameter Roller Strike With Positive Locking Plate and Shims
  • Voltage: 24 Volt
  • Finish Code: 613/US10B
  • Power Input: 24VDC at 0.35A
  • Door Material: Wood
  • Electrified Features: Electric Latch Retraction
  • Included Components: Machine Screws and Wood Door Fasteners
  • Finish: 613/US10B-Oil Rubbed Dark Bronze
  • Series: ED5200 Pushpad
  • Function: Exit Only
  • Finish Description: Oil Rubbed Dark Bronze
  • Manufacturer Parent: ACSI
  • Stile: Wide Stile
  • Device Length: 36 Inch (3 Foot)
  • Fire Rated: No

ACSI-ED5200-W036 ELECTRIC MOTOR LATCH RETRACTION AVAILABLE CONFIGURATION

ACSI ED5200-W036 Corbin Russwin ED5000 Pushpad Series Rim Exit Device with Electric Latch Retraction 24 Volt AC/DC
ACSI ED5200-613-W036-1550K Corbin Russwin ED5000 Pushpad Series Rim Exit Device 613 - Satin Bronze Oil-Rubbed
ACSI ED5200-630-W036-1550K Corbin Russwin ED5000 Pushpad Series Rim Exit Device 630 - Satin Stainless

Product Specs

Subcategory:
Electric Motor Latch Retraction
Series:
1500 Series
Collection:
1500 Series
Product Type:
Exit Device Trim
ADA Compliant:
No
ANSI/BHMA:
ANSI A156.3, Type 1, Grade 1, ANSI A117.1, UL /cUL Listed, California State Fire Marshal pursuant to section 13144.1, NFPA 101 Life Safety Code
Commercial/Residential:
Commercial
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Device - Rim
Electronic:
Yes
Lock Function:
Exit Only
Grade:
Grade 1
Stile Type:
Wide Stile
Product Function:
Exit Only
Dogging Configuration:
Hex Key Dogging
Product Category:
Exit Devices and Trim
Department:
Door Hardware
Product Size:
36

ACSI ACSI-ED5200-613-W036-1550K – Frequently Asked Questions

1) Will the ACSI ED5200-W036 rim exit device fit a 36 inch wood door?
Yes. The ED5200-W036 is built for door widths of 30 to 36 inches, with a 36 inch (3 foot) device length, and the door material is called out as wood. Fasteners come with it: machine screws plus wood door fasteners. Door thickness has to be 1-3/4 inches, and the door needs a wide stile of at least 4-1/2 inches to take the device.
2) What power supply do I need for the ACSI ED5200 electric latch retraction exit device?
It runs on 24 volt AC/DC, drawing 24VDC at 0.35A. Size the supply for that current per device, and add up every leaf on the job if you are retracting more than one. The motor pulls the latch in on command so the opening can be pushed or pulled freely without touching the pushpad.
3) Is this ACSI ED5200 exit device fire rated?
No. The ED5200-W036 with electric latch retraction is panic exit hardware, not fire exit hardware, and it carries hex key dogging, which is not permitted on a fire door. For a fire rated opening you need a fire labeled device without mechanical dogging.
4) Can I use this ED5200 rim device on a pair of doors?
Not on its own. The application is single doors, and a rim device latches into a strike on the frame, so a pair needs either a removable mullion between the leaves or vertical rod devices. Detex sells the 90 Series keyed removable mullion for rim exit devices, which is the usual way to keep rim hardware on a pair.
5) Will the ED5200 latch into my existing rim strike?
Plan on using the strike that ships with it. The device has a 3/4 inch deadlocking bolt throw and is set up for a 3/8 inch diameter roller strike with a positive locking plate and shims. The shims are how you take up gap variation between door and frame, so reusing an old flat rim strike is a gamble on alignment.
6) Does this ACSI exit device come with outside lever trim?
No. It is an exit only device, ANSI trim function 01, meaning no outside operating trim. Access from the outside comes from retracting the latch electrically. If you need key or lever access on the outside, you would specify a trim separately, such as Sargent's 814 PSB nightlatch pull for 80 Series or a keyed escutcheon trim matched to the device series.
7) My door has a narrow aluminum stile. Is this the right exit device?
No. The ED5200-W036 is a wide stile device needing a 4-1/2 inch stile, and it is specified for wood doors. Narrow stile aluminum storefront needs a narrow stile rim device sized to that stile instead.
8) Is the Von Duprin 379L-BE blank escutcheon a substitute for the ACSI ED5200-W036 rim exit device?
No. The ACSI ED5200-W036 is a complete rim exit device with electric latch retraction, 24 volt AC/DC, in a 36 inch device length for 30 to 36 inch wood doors. The Von Duprin 379L-BE is a blank escutcheon trim for 55 Series rim exit devices in the 370 Series, meaning it is only the outside plate that mounts to a device already on the door. It has no pushpad, no latch, and no electrification. If you are replacing the device itself, the trim is not an alternative; if you only need to dress the pull side of an existing Von Duprin, the escutcheon is the part.
9) I need outside access control on the door, not just free egress. What should I look at instead of the ACSI ED5200-W036?
The ED5200-W036 is an exit only device, so it releases the latch from the inside pushpad and carries no outside operating trim. Two credential-based trims cover the outside side of an opening. The Dormakaba E-Plex E5010 is an electronic push button exit device lever trim with key override, Grade 1, E-Plex 5000 Series, fitting doors 1-3/8 inch to 2-1/4 inch thick. The BEST EXZ is an EZ Series electronic keypad exit device trim, also with key override. Both are trim only and are built to their own device series, so match the trim to the device family on the door.
10) If the opening needs a keyed lever on the outside instead of electric latch retraction, what are the options?
The ED5200-W036 is an exit only Grade 1 device with no outside lever. Where the outside side needs a keyed function, Corbin Russwin offers the K157ET Grade 1 key only trim in classroom function for ED2200 and ED2400 exit devices, and Arrow offers the SRX87 Sierra lever trim in classroom function for S1150, S1250, ED910 and PEC910 series devices, for 1-3/4 inch doors. Deltana lever trims cover other functions: the LTED80LS is entry function, the DDS-36 and LTED60LST are storeroom function, and the LTED80LP is passage function. Each trim is series-specific, so pick the one matching the device body on the door.
11) What happens to the door if power drops on an electric latch retraction device?
Egress is unaffected. The ED5200 is panic exit hardware with a mechanical pushpad, so pushing the bar always retracts the latch and opens the door regardless of power. Losing 24 volt power simply means the latch stops being held retracted electrically, and the opening returns to latched with free egress from the inside.
12) Can I dog this device down to leave the door push-open during business hours?
Yes, with hex key dogging. Insert the hex key to hold the pad depressed and the latch stays retracted mechanically, which is how retail and office openings are left on push-pull during the day. Do not use dogging on any fire rated opening.
13) What is the mechanical alternative if I do not want to run power to the door for the ACSI ED5200-W036?
The ED5200-W036 draws 24VDC at 0.35A for its motorized latch retraction, which requires a power supply and wiring to the opening. Where that is not practical and the outside side only needs a code, the Lockey 115P is a heavy duty keyless passage lever panic trim with the 1150 lock body, and the Lockey 285P is a keyless mechanical panic trim with lever handle; both fit doors 1 3/16 inch to 2 inch thick and need no power at all. Note these are trims that mount to a panic device, not standalone devices, so you still need a compatible exit device on the push side.
14) The ACSI ED5200-W036 is listed for single doors. What do I add for a pair of doors with rim devices?
The ED5200-W036 is specified for single door applications. For a pair, a removable mullion gives each leaf a strike point so two rim devices can be used. The Detex 90 Series keyed removable mullion is built for rim exit devices and pulls out of the opening when you need the full clear width. Confirm the mullion strike arrangement against the ED5200 strike, which is a 3/8 inch diameter roller strike with positive locking plate and shims.
15) My door is wood. Does that rule out any of the exit device trim alternatives?
The ACSI ED5200-W036 is built for wood doors and ships with machine screws and wood door fasteners. Among the trim alternatives, the Sargent 802 blank plate trim with GTB design is noted as not wood door compatible, so it is not a candidate on a wood leaf. The Sargent 862 offset pull handle in the P800 Series and the Sargent 814 PSB nightlatch pull in the 80 Series are the pull-style alternatives to look at when the outside side only needs a grip rather than a lever.
16) Is a Detex trim plate the same thing as the ACSI ED5200-W036?
No. The Detex 03WS is an exit device trim plate with a cylinder hole for 10, 20, 21 and 27 Series devices, and the Detex 0A is a straight pull trim with blank escutcheon for Value Series exit devices; both are outside-side components only. The ACSI ED5200-W036 is the device itself, a wide stile rim pushpad unit with hex key dogging, a 3/4 inch bolt throw deadlocking latch, 4-1/2 inch stile width and motorized latch retraction, offered in 613 oil rubbed bronze and 630 satin stainless.
17) How much does the push bar stick out into the corridor?
Projection is 3-1/4 inches with the bar active and 2-3/4 inches when dogged down. That matters where the door swings into a tight vestibule or where you are holding a clear corridor width.
18) What finishes does the ACSI ED5200-W036 come in?
Two: 613 oil rubbed bronze (US10B, dark bronze) and 630 satin stainless steel. 613 is the dark bronze look for wood door and hospitality openings; 630 is the standard commercial stainless that matches most other door hardware in an institutional building.
