Adams Rite 24-0017 Standard Duty Faceplates for 4500 Series Deadlatch

Adams Rite 24-0017 Standard Duty Faceplates for 4500 Series Deadlatch

(No reviews yet) Write a Review

Model: 24-0017-0220-628
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$13.15
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks

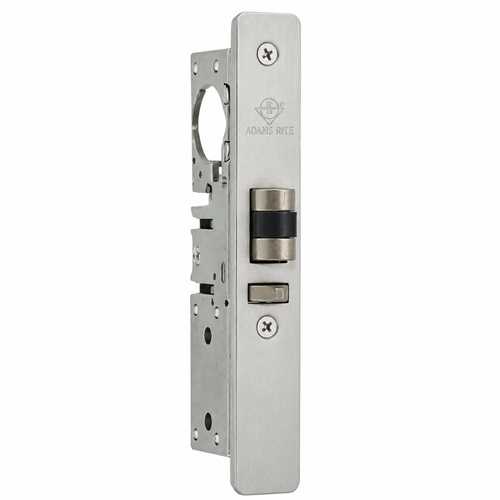

You may also like

Adams Rite 24-0017 Standard Duty Faceplates for 4500 Series Deadlatch

Professional Replacement Faceplates for 4500 Series Deadlatch Systems

The Adams Rite 24-0017 Standard Duty Faceplates are precision-engineered replacement components designed specifically for 4500 Series Deadlatch applications. These professional-grade faceplates provide reliable mounting and finishing solutions for commercial door hardware installations, ensuring proper fit and function with existing 4500 Series deadlatch mechanisms.

Professional Features & Benefits

  • Industry standard for narrow stile aluminum doors
  • 1/2" to 5/8" latchbolt throw (model dependent)
  • Stainless steel auxiliary deadlatch pin prevents "loiding"
  • Easily reversible latchbolt using screwdriver only
  • Accepts standard MS® cam mortise cylinder
  • Compatible with 7100 Series electric strikes
  • Flat, radius, and beveled faceplate options
  • Field-reversible for left or right hand doors

Technical Specifications

  • Door Application: Narrow stile aluminum doors
  • Latchbolt: 1/2" to 5/8" throw
  • Auxiliary Deadlatch Pin: Stainless steel
  • Cylinder: Standard MS® cam mortise
  • Handing: Field reversible
  • Compatible Strike: 7100, 7400 UltraLine Series
  • Backset: 1-1/8" or 1-1/2"

Installation & Operation

This replacement faceplate component is designed for use with compatible Adams Rite 4500 Series Deadlatch systems. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Available Model Configurations

  • 24-0017-0220: Flat faceplate for standard mounting applications
  • 24-0017-1220: Radius faceplate for curved door edge installations
  • 24-0017-2220: Left hand bevel faceplate for left-handed door configurations
  • 24-0017-3220: Right hand bevel faceplate for right-handed door configurations
  • 24-0017-4220: Radius with weatherstrip for exterior applications requiring weather protection

Why Choose Adams Rite Quality?

Adams Rite faceplate components deliver professional-grade reliability with precision manufacturing designed for demanding commercial applications. These standard duty faceplates ensure proper integration with 4500 Series deadlatch systems while maintaining the quality and performance standards expected from Adams Rite door hardware solutions.

Manufacturer Resources

Adams Rite Product Catalog

Product Specs

Product Group:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Commercial/Residential:
Commercial
Product Model:
24-0017
Product Category:
Parts and Accessories
Department:
Door Hardware
Product Type:
Faceplates

Adams Rite 24-0017-0220-628 – Frequently Asked Questions

1) Will the Adams Rite 24-0017 faceplate fit my 4500 Series deadlatch?
The 24-0017 standard duty faceplate is the replacement front for Adams Rite 4500 Series deadlatches, and that is the only deadlatch family it is built for. You still have to pick the right shape for your door edge: flat (24-0017-0220), radius (24-0017-1220), left hand bevel (24-0017-2220), right hand bevel (24-0017-3220), or radius with weatherstrip (24-0017-4220). Pull the old plate and match its profile before you order, because a flat plate will not sit flush on a radiused stile edge.
2) How do I know whether to order the flat, radius, or bevel Adams Rite faceplate?
It is decided by the edge of the aluminum door, not by the lock. A square, flat stile edge takes the flat 24-0017-0220. An extruded door with a rounded edge takes the radius 24-0017-1220. Doors with a beveled lock edge take a handed plate, 24-0017-2220 for left hand and 24-0017-3220 for right hand, and those two are not interchangeable. Exterior openings where the plate meets a weatherstripped jamb take the 24-0017-4220 radius with weatherstrip.
3) The bevel faceplate is handed. How do I tell if I need left hand or right hand?
Handing on the beveled 24-0017 plates follows the door, not the latch. The 4500 deadlatch itself is field reversible with a screwdriver, so the latchbolt is not what forces your choice, but the beveled plate is cut for one hand only and there is no flipping it in the field. Stand outside the opening, on the side the key goes in: if the hinges are on your left it is a left hand door and takes 24-0017-2220, hinges on your right takes 24-0017-3220. If the door edge is square rather than beveled, skip the handed plates entirely and use the flat 24-0017-0220.
4) Is this the whole deadlatch or just the faceplate?
Just the plate. The 24-0017 is the standard duty faceplate, the visible front that screws to the lock edge of the door and covers the latch case. It does not include the deadlatch body, the latchbolt, the deadlatching pin, the cylinder, or the strike. If your latch is worn or the deadlatch pin is damaged, you need a 4500 Series deadlatch, not this plate.
5) Will this Adams Rite faceplate work on a wood or hollow metal door?
No. The 4500 Series deadlatch these plates front is narrow stile aluminum door hardware, and the plate is cut for the narrow lock edge of an extruded aluminum stile. Wood and hollow metal openings take a cylindrical or mortise lock with a completely different front. Use the 24-0017 only on aluminum storefront and entrance doors.
6) Which faceplate do I use on an exterior storefront door that has weatherstripping at the jamb?
Use the 24-0017-4220, the radius plate with weatherstrip. It is the version meant for exterior openings that need weather protection at the lock edge. On an interior opening with a rounded stile edge, the plain radius 24-0017-1220 does the same job without the strip.
7) What finishes does the Adams Rite 24-0017 faceplate come in, and will they match my storefront doors?
Three anodized finishes cover the 24-0017 plates: 313 dark bronze anodized, 335 black anodized, and 628 clear anodized. All five plate shapes are offered in all three, so the profile you need never limits the color. Those are the standard aluminum storefront finishes, so 628 clear matches mill/aluminum doors, 313 matches dark bronze storefront, and 335 matches black. Anodized finishes vary slightly between production runs and against a weathered door, so on a fleet of openings buyers usually replace the visible plates on a single elevation at once rather than one at a time.
8) Do I need to know my backset before ordering an Adams Rite 24-0017 faceplate?
The 4500 Series deadlatch is made in 1-1/8 inch and 1-1/2 inch backsets, but backset is set by the lock case, not the faceplate. What the plate has to match is the door edge profile and the cutout in the stile it screws into. Measure the existing plate and note whether the edge is flat, radiused, or beveled. If you are also replacing the latch, that is where the 1-1/8 versus 1-1/2 inch decision gets made.
9) I have a 7100 electric strike on this opening. Does swapping the faceplate affect it?
No, the strike side is untouched. The 4500 Series deadlatch works with Adams Rite 7100 Series and 7400 UltraLine electric strikes, and changing the 24-0017 front plate does not change the latchbolt projection or where it lands in the keeper. The 4500 throws 1/2 inch to 5/8 inch depending on model, so as long as you are not also changing latch models, the existing strike alignment holds.
10) My storefront lock can be slipped with a card. Will a new faceplate stop that?
The plate is not what stops loiding, the deadlatch pin is. The 4500 Series uses a stainless steel auxiliary deadlatch pin that rides on the strike and blocks the latchbolt from being carded back. If your opening is getting loided, the pin is either missing, broken, or not making contact with the strike, and a new 24-0017 front will not fix it. Check pin engagement against the keeper first, then replace the deadlatch itself if the pin is damaged.
11) Can I standardize one faceplate across all the storefront doors in my building?
Only if the doors share an edge profile and a hand. Square edge doors all take the flat 24-0017-0220, and radiused edge doors all take 24-0017-1220, so those two standardize cleanly across a fleet. Beveled edge doors do not, since 24-0017-2220 and 24-0017-3220 are handed and you would need both on a building with doors swinging opposite ways. A practical approach for a multi-tenant property is to standardize on one anodized finish, 313, 335, or 628, and stock the plate shapes your openings actually use.
12) Does replacing the faceplate mean I have to rekey or change the cylinder?
No. The 4500 Series deadlatch takes a standard MS cam mortise cylinder, and the cylinder stays in place when you change the 24-0017 front plate. Your existing keying and keyway carry over, so a plate swap on a masterkeyed building does not touch the key system.
