Adams Rite 4510 - Flat Facepla...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$102.00
$58.37
Brand:
Adams Rite
Category:
Parts and Accessories
Product Group:
Parts and Accessories
Series:
4510 Series
Grade:
Grade 1
Standard Strike:
4902-01 for flat jamb where door closes flush
Fasteners:
Mounting Screws
Cylinder Included:
No
Warranty:
5 Year
Model:
4510
Door Thickness:
1-3/4"
Latch Throw:
1/2"
Handing:
Yes
Product Subgroup:
Latches
Product Type:
Deadlatches
Subcategory:
Deadlatches
Commercial/Residential:
Commercial
Cylinder and Keyways:
Mortise Cylinder
Duty Level:
Standard Duty
Dimensions:
1" x 5 13/16" x depth
Latch:
1/2" x 1" x 1/2"

Model: 4510-15-101-628

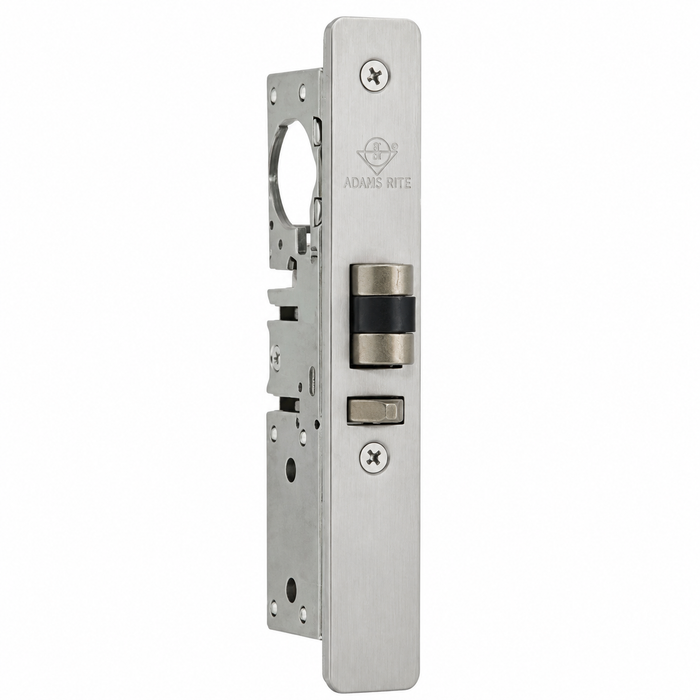

Adams Rite 4510 - Flat Faceplate Standard Duty Deadlatch

(No reviews yet) Write a Review
$102.00
$58.37
Selected Finish is
Adding to cart… The item has been added
FREE SHIPPING for orders over $149
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
FREE KEYING services available on all locks
Brand:
Adams Rite
Category:
Parts and Accessories
Product Group:
Parts and Accessories
Series:
4510 Series
Grade:
Grade 1
Standard Strike:
4902-01 for flat jamb where door closes flush
Fasteners:
Mounting Screws
Cylinder Included:
No
Warranty:
5 Year
Model:
4510
Door Thickness:
1-3/4"
Latch Throw:
1/2"
Handing:
Yes
Product Subgroup:
Latches
Product Type:
Deadlatches
Subcategory:
Deadlatches
Commercial/Residential:
Commercial
Cylinder and Keyways:
Mortise Cylinder
Duty Level:
Standard Duty
Dimensions:
1" x 5 13/16" x depth
Latch:
1/2" x 1" x 1/2"

4510 ELECTRIFIED DEADLATCH

4510 Standard Duty Deadlatches provide flexible traffic control during and after business hours.

FUNCTION

The 4510 Series Standard Duty Deadlatch offers flexibility of traffic control during and after business hours. A reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for healthcare, financial institutions, retail, and other applications that require free entrance at certain times and exit-only at other times. Interchangeable, without stile modification, with any MS1850S Deadlock of same backset and faceplate shape. They do not, however, provide the same maximum security level as the MS®Deadlock.

OPERATION

Turn key or operate handle or paddle to retract spring-loaded latchbolt. To holdbolt retracted, push it in and secure by reverse turn of key. Lock accepts any standard mortise cylinder with MS® cam, available separately. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066Thumbturn, available separately. Lock accepts cylinder from either or both sides.

FEATURES

Cylinder Backset

  • 7/8" [22.2 mm]
  • 31/32" [24.6 mm]
  • 1-1/8"[28.6 mm]
  • 1-1/2" [38.1 mm]



Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.

Latchbolt: All metal with hardened steel internal pins. Handing is reversible without special tools. Measures 1/2" x 1" x 1/2" [12.7 mm x 25.4 mm x 12.7 mm] throw.

Auxiliary Bolt: All metal. Deadlocks latchbolt to prevent “loiding” or case-knife entry.

Faceplate: Measures 1" x 6-7/8" [25.4 mm x 174.6 mm]

Strike: Standard strike furnished is 4902-01 for flat jamb where door closes flush or nearly flush. Available separately: radius strike for opposite stile in paired doors; longer strike (4901) to cover slot strike of MS lock; long lip strikes for center hung doors.

Standard Package: Individually boxed with strike and mounting screws. Cylinder, paddle, handle available separately.

Shipping Weight: 1-1/4 lbs [.57 kg]. Also available in a 25-unit pack for volume customers. Please contact factory for more information.

Product Note: The 4600M with monitoring switch option cannot be used in conjunction with the 4300 Electrified Deadlatch.

OPTIONS

  • Backset, faceplate shape, strike, handing, and finish must be specified when ordering.
  • Available without faceplate or strike plate, select 4513.
  • Available in choice of 313 Dark bronze anodized, 335 Black anodized, 628 Clear anodized.

DOCUMENTS



4510 Catalog Page

4510-4530 Installation Instructions & Templates

4510-4530 Rehanding Instructions

4500 with 4600 Lever Install Instructions
