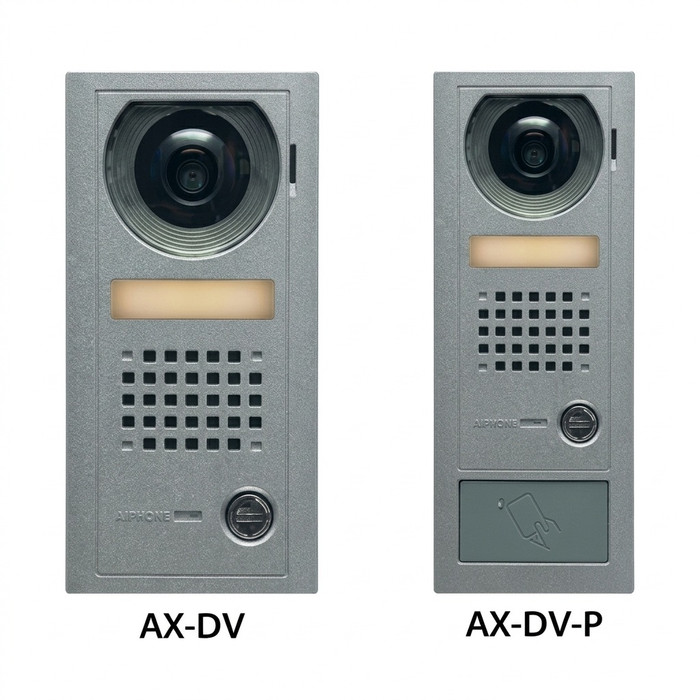

Aiphone AX-DV / AX-DV-P – Surface Mount Video Door Stations
Vandal-Resistant Entry Solutions for the Aiphone AX Series

Product Overview

The Aiphone AX-DV is a vandal-resistant, surface-mount video door station designed for use with the AX Series open voice color video entry system. It features a color CCD camera, built-in speaker and microphone, and white LED illumination for low-light visibility. The unit connects to the AX central control unit using Cat-5e cable and mounts directly to a wall surface. A clear polycarbonate lens cover protects the camera, and the aluminum die-cast faceplate ensures long-lasting durability.

The AX-DV-P offers the same functionality as the AX-DV, but includes an integrated HID® card reader with Wiegand output, enabling seamless access control integration with third-party systems.

Features

  • Cat-5e cable wiring to AX CCU for simplified installation

  • Color CCD camera with clear, fixed view

  • Hands-free voice communication

  • White LED illumination activates in low light

  • Illuminated call directory

  • Polycarbonate lens cover for camera protection

  • Durable cast aluminum faceplate

  • AX-DV-P includes embedded HID® card reader with standard Wiegand output

  • Vandal-resistant surface-mount design

Specifications

  • Camera Type: 1/4" CCD

  • Field of View: 2'1" vertical × 3'1" horizontal at 20"

  • Communication: Hands-free (VOX)

  • Mounting: Surface mount (direct to wall)

  • Wire Type: Cat-5e

  • Max. Wire Distance: 980′

  • Protection Rating: IP43

  • Operating Temperature: 14°F ~ 140°F (-10°C ~ 60°C)

  • Material: Aluminum die-cast faceplate

Product Specs

Product Type:
Door Stations
Series:
AX Series
Product Group:
Electronic Access Controls
Product Subgroup:
Intercoms
Subcategory:
Video Intercoms
Commercial/Residential:
Commercial
Electronic:
Yes
Tags:
aiphone ax dv, aiphone ax dv p
Product Category:
Electronic Access Controls
Department:
Door Hardware

Aiphone AX-DV – Frequently Asked Questions

1) Will the Aiphone AX-DV door station work with my existing intercom system, or does it need the AX central control unit?
The AX-DV is a component of the Aiphone AX Series open voice color video entry system and connects back to the AX central control unit. It is not a standalone intercom, so you need the AX CCU in place for it to function. If your building runs a different Aiphone platform, the AX-DV is not the door station for it.
2) How far can I run the wire from the AX-DV entry station back to the control unit?
Up to 980 feet on Cat-5e. That covers most single buildings and long lobby-to-equipment-room runs. The AX-DV uses Cat-5e rather than proprietary multi-conductor cable, so an installer can pull and terminate it with standard structured cabling practice.
3) What is the difference between the Aiphone AX-DV and the AX-DV-P?
Same door station, one added function. The AX-DV-P carries an embedded HID card reader with standard Wiegand output, so residents or staff can badge in while visitors use the call button. The plain AX-DV has the camera, speaker, microphone and call directory but no reader. Order the P version if you want the intercom and the credential reader in one faceplate instead of mounting a separate reader alongside it.
4) Can the AX-DV-P card reader tie into my existing access control panel?
The reader in the AX-DV-P outputs standard Wiegand, which is what conventional access control panels accept on their reader inputs. The intercom side runs to the AX control unit; the reader side runs to your access panel as a separate cable. Confirm your panel takes Wiegand credentials and that the HID card format you already issue matches.
5) Is the Aiphone AX-DV rated for outdoor entrance use?
IP43 protection and an operating range of 14 to 140 degrees F (-10 to 60 C), with a die-cast aluminum faceplate and a polycarbonate lens cover over the camera. IP43 covers spray from above, not driving rain or hose-down, so a covered entry, vestibule or recessed doorway is where it belongs. An unprotected wall face in hard weather calls for a rain hood or a sheltered location.
6) Will the AX-DV camera show a visitor's face at the door, and does it work at night?
The camera is a 1/4 inch color CCD with a fixed view covering roughly 2 feet 1 inch vertical by 3 feet 1 inch horizontal at 20 inches from the lens. That is a head-and-shoulders frame at conversational distance, not a wide area view of the entry. White LED illumination kicks in under low light so the picture holds after dark. Because the view is fixed, mounting height decides what you see; set it so an average adult's face lands in the frame.
7) Does the AX-DV need a back box, or does it mount straight to the wall?
Surface mount, direct to the wall. There is no flush box or wall cut-in required, which is why it gets specified on masonry, block and finished lobby walls where cutting a pocket is not practical. You bring the Cat-5e up to the mounting point and the station covers the penetration.
8) Does a visitor have to hold a button down to talk on the AX-DV?
No. Communication is hands-free VOX, so the visitor presses the call button and then just speaks. That matters for accessibility and for anyone with their hands full at the door. The tenant side controls the conversation from the AX master station.
9) Is the AX-DV suitable for a multi-tenant lobby where visitors need to pick a resident?
It carries an illuminated call directory on the faceplate, so it is built for an entry where a visitor selects who they are calling rather than a single-tenant door with one button. The lighting on the directory keeps it readable at night, which is when most lobby entry calls happen.
10) Is the Aiphone AX-DV tough enough for an unsupervised public entrance?
It is built as a vandal-resistant station: cast aluminum die-cast faceplate rather than plastic, and a clear polycarbonate cover shielding the camera lens. That combination is what gets it specified on street-facing doors, parking entries and school exteriors where a plastic-bodied residential intercom gets destroyed. It is a commercial-rated device, not a residential one.
