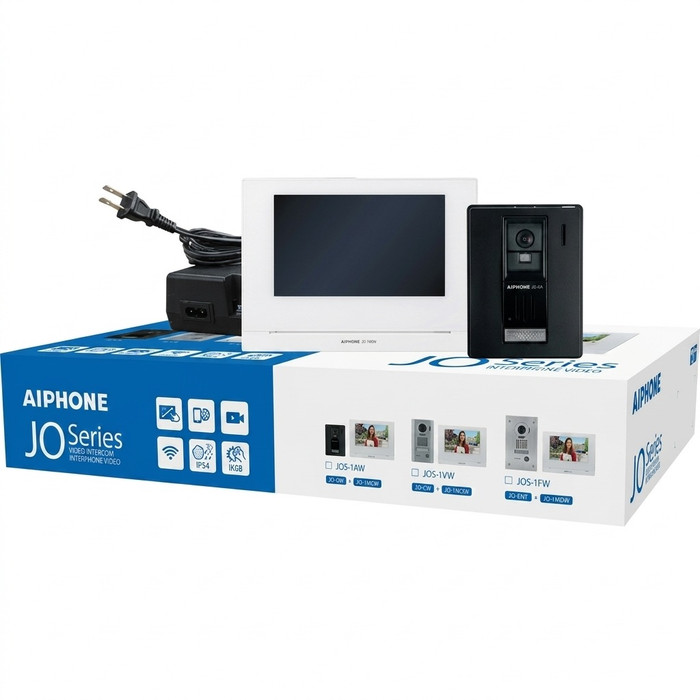

Aiphone Aiphone JOS-1AW - Mobile Ready Video Intercom Box Set, Surface Mount Door Station, 7" Touchscreen (JO-DA, JO-1MDW, PS-1820UL) JOS-1AW

Aiphone JOS-1AW - Mobile Ready Video Intercom Box Set, Surface Mount Door Station, 7" Touchscreen (JO-DA, JO-1MDW, PS-1820UL)

(No reviews yet) Write a Review

Model: JOS-1AW

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,268.00
$878.85
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

This boxed set contains all the equipment needed for an app-enabled entry security system. A call from the video doorbell rings the on-site monitor and up to eight smartphones or tablets. After answering the call, you can see and speak with your visitor then easily unlock the door with the touchscreen monitor or using the slider button on the app.

This hardwired monitor ensures calls can be answered even when the internet is down or slow and the mobile app ensures you stay connected when you're on the go. The monitor features built-in memory that can be manually activated to record video from the doorbell or set to automatically record all calls. Expand storage using the MicroSD card slot and view recorded calls on both the monitor and the app.

All this security and convenience is backed by Aiphone's quality and award-winning customer support.

Use Aiphone when you need unparalleled product quality. Use the JO Series when you need on-the-go security and convenience in a single package.

FEATURES

  • Box set includes all you need for an app capable video intercom system
  • Answer and open your door from the on-site master or your mobile device
  • Connect up to 8 smartphones or tablets per system
  • On-site monitor ensures calls get answered or recorded
  • Store calls with no added fees using onboard memory
  • Adding a MicroSD card to the on-site monitor increase call storage
  • Watch recorded calls from the on-site master or on the mobile app
  • Large 7” touchscreen provides crisp, clear detail of your caller
  • Surface mount video door intercom is crafted using sturdy ABS plastic
  • Video door intercom automatically activates white LED lights to see clearly at night
  • Replace standard doorbells to add the security of seeing and speaking with visitors
  • JO-DA not sold separately, add JO-DV for a second door station option
SPECS

Inside Monitor

Model: JO-1MDW
Video Display: 7" TFT Touchscreen
Mounting: Surface wall mount or desk mount with MCW-S stand
Internal Call Recording: 10 calls max. @ 10 seconds/call
Memory Expansion: micro SDHC card slot, 32GB max.
Call Recording with max memory: 1,000 calls max. @ 10 seconds/call
Communication style: Handsfree or PTT
Wireless Frequency: 2.4 GHz
Wireless Protocol: 802.11b, 802.11g, and 802.11n (Wireless B/G/N)
App

Model: Intercom App Type B
Max per system: 8 devices
Available at: Apple App Store℠ or Google Play™


Video Door Station

Model: JO-DA
Power Source: Supplied by inside monitor
Camera: 1/4 inch color CMOS
Mounting: Surface wall mount using a 1 gang electrical box
Faceplate Material: Self-extinguishing PC + ABS plastic
Enclosure Rating: IP54
Communication style: Handsfree
Operational Tempature: -40°~140° F (-40° ~ 60° C)
Wiring to master: 2-cond., low cap, non-shielded
Max. Wire distance: 165' (22AWG) 330' (18AWG)

Power Supply

Model: PS-1820UL
Power Source:AC 100~240V 50/60Hz
Power Output: DC 18V 2A

Product Specs

Product Type:
Video Intercom Box Sets
Series:
JO Series
Product Group:
Electronic Access Controls
Product Subgroup:
Intercoms
Subcategory:
Video Intercoms
Commercial/Residential:
Commercial
Electronic:
Yes
Product Category:
Electronic Access Controls
Department:
Door Hardware

Aiphone JOS-1AW – Frequently Asked Questions

1) What comes in the Aiphone JOS-1AW box set, and do I need to buy anything else to make it work?
The JOS-1AW set ships with three pieces: the JO-1MDW 7 inch touchscreen inside monitor, the JO-DA surface mount video door station, and the PS-1820UL power supply. That covers a complete one-door, one-monitor system. Wire is not in the box, and you supply the 1 gang electrical box the door station mounts to. If you want a desk mounted monitor instead of wall mounted, the MCW-S stand is a separate item. A MicroSD card is also extra if you want more than the onboard recording capacity.
2) How far can the Aiphone JO-DA door station be from the JO-1MDW monitor?
Run length depends on wire gauge: 165 feet on 22AWG, 330 feet on 18AWG. The run is 2 conductor, low capacitance, non-shielded, and it is not polarity-critical station-to-station wiring you need to buy special cable for. The door station draws its power from the inside monitor, so there is no second power run to the entrance.
3) Can the JO-DA door station be installed outdoors in cold or wet weather?
Yes. The JO-DA carries an IP54 enclosure rating and an operating range of -40 to 140 F (-40 to 60 C), so it handles a typical exterior entrance in northern climates. The faceplate is self-extinguishing PC + ABS plastic. IP54 is splash and dust protected, not submersible, so mount it under some overhang where you can rather than in a spot that takes direct driven rain.
4) Will the Aiphone JOS-1AW still answer the door if my internet goes down?
Yes. The JO-1MDW monitor is hardwired to the door station, so calls ring and can be answered at the monitor regardless of the network. The Wi-Fi side (2.4 GHz, 802.11b/g/n) only carries the smartphone app. If the internet drops, you lose remote answering on phones but the on-site monitor keeps working, including door release and call recording.
5) How many phones can be tied to one Aiphone JO Series intercom system?
Up to 8 smartphones or tablets per system, using the Intercom App Type B from the Apple App Store or Google Play. Each of those devices can see and talk to the visitor and release the door with the slider button in the app. For a small property management office or a family, that is usually enough; if you need more users than that, you are into a different system class.
6) How many calls will the Aiphone JO-1MDW record, and do I pay a monthly fee for the video?
No fees, no cloud subscription. Recording is local. Onboard memory holds 10 calls at 10 seconds each. Drop in a micro SDHC card up to 32GB and that goes to 1,000 calls at 10 seconds each. Recording can be triggered manually or set to capture every call automatically, and you can play recordings back on the monitor or through the app.
7) Can I add a second door station to the Aiphone JOS-1AW set?
Yes, the JO-DV is the add-on for a second entrance. Note that the JO-DA supplied in the box set is not sold separately, so if you are planning a two-door layout, plan on the JO-DV for the second opening rather than trying to source a second JO-DA.
8) What power does the Aiphone JOS-1AW need at the monitor location?
The included PS-1820UL plugs into standard building power, AC 100 to 240V 50/60Hz, and puts out DC 18V 2A to the monitor. That single supply runs the whole system, since the JO-DA door station is fed from the monitor. Plan a receptacle or a junction for the transformer near the monitor location.
9) Can the Aiphone JO-DA replace an existing doorbell button at the entrance?
That is exactly what it is built for. The JO-DA is a surface mount station that goes on a 1 gang electrical box, so it swaps into a common doorbell or pushbutton location and turns it into a video entry point with two-way audio. It has a 1/4 inch color CMOS camera and fires white LEDs automatically after dark so you can identify who is at the door at night. Communication at the door is handsfree.
10) Is the Aiphone JOS-1AW suitable for a small commercial building or is it a residential product?
Aiphone classes the JOS-1AW as commercial. Practically, it fits a single entrance with one monitor: a small office suite, a leasing office, a clinic front door, a single-tenant storefront, or a high-end residence. It is a one-door, one-master architecture with up to 8 app users. It is not a multi-tenant directory system, so a 40 unit apartment building with one panel and forty apartments is a different product family.
11) Does the Aiphone JO-1MDW monitor have to be wall mounted?
Wall mount is the standard install, surface mounted, no deep back box needed. If you would rather have it sitting on a desk or a counter at a leasing office or front desk, the MCW-S stand converts it to a desk unit. Talk at the monitor can be handsfree or push-to-talk, which is worth switching to PTT in a noisy lobby.
