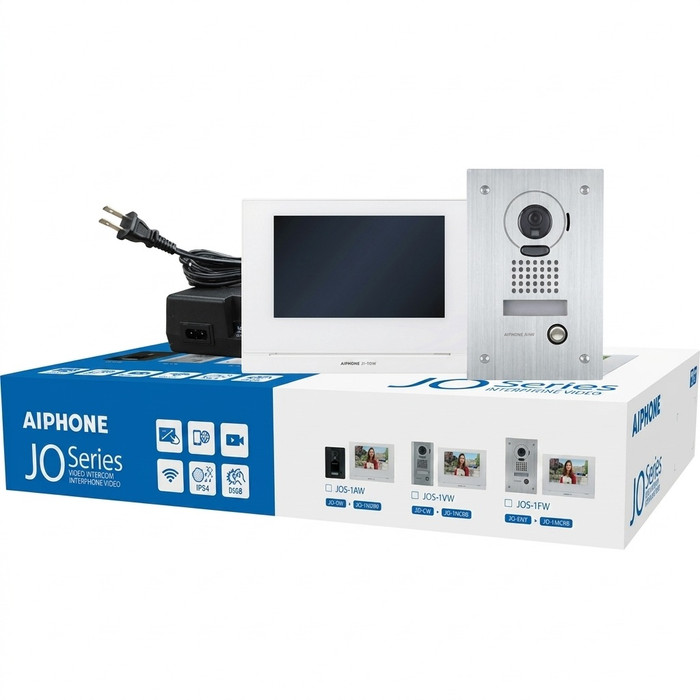

Aiphone Aiphone JOS-1FW - Mobile Ready Vandal Resistant Video Intercom Box Set, Flush Mount Door Station, 7" Touchscreen (JO-DVF, JO-1MDW, PS-1820UL) JOS-1FW

Aiphone JOS-1FW - Mobile Ready Vandal Resistant Video Intercom Box Set, Flush Mount Door Station, 7" Touchscreen (JO-DVF, JO-1MDW, PS-1820UL)

(No reviews yet) Write a Review

Model: JOS-1FW-JO

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,316.00
$1,233.77
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

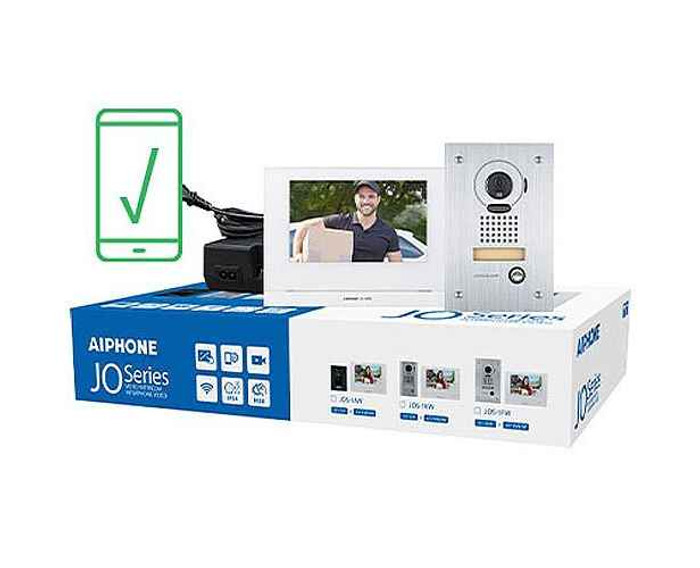

This boxed set contains all the equipment needed for an app-enabled entry security system. A call from the flush-mount video doorbell rings the on-site monitor and up to eight smartphones or tablets. After answering the call, you can see and speak with your visitor then easily unlock the door with the touchscreen monitor or using the slider button on the app.

This hardwired monitor ensures calls can be answered even when the internet is down or slow and the mobile app ensures you stay connected when you're on the go. The monitor features built-in memory that can be manually activated to record video from the doorbell or set to automatically record all calls. Expand storage using the MicroSD card slot and view recorded calls on both the monitor and the app.

All this security and convenience is backed by Aiphone's quality and award-winning customer support.

Use Aiphone when you need unparalleled product quality. Use the JO Series when you need on-the-go security and convenience in a single package.

FEATURES

  • Box set includes all you need for an app capable video intercom system
  • Answer and open your door from the on-site master or your mobile device
  • Connect up to 8 smartphones or tablets per system
  • On-site monitor ensures calls get answered or recorded
  • Store calls with no added fees using onboard memory
  • Adding a MicroSD card to the on-site monitor increase call storage
  • Watch recorded calls from the on-site master or on the mobile app
  • Large 7” touchscreen provides crisp, clear detail of your caller
  • The vandal resistant surface mount video door intercom faceplate is crafted using stainless steel
  • Video door intercom automatically activates white LED lights to see clearly at night
  • Replace standard doorbells to add the security of seeing and speaking with visitors
  • JO-DVF is not sold separately, add JO-DV for a second door station option
SPECS

Inside Monitor

Model: JO-1MDW
Video Display: 7" TFT Touchscreen
Mounting: Surface wall mount or desk mount with MCW-S stand
Internal Call Recording: 10 calls max. @ 10 seconds/call
Memory Expansion: micro SDHC card slot, 32GB max.
Call Recording with max memory: 1,000 calls max. @ 10 seconds/call
Door Release: N/O dry contact, 24V AC/DC, 500mA
Communication style: Handsfree or PTT
Wireless Frequency: 2.4 GHz
Wireless Protocol: 802.11b, 802.11g, and 802.11n (Wireless B/G/N)

App

Model: Intercom App Type B
Max per system: 8 devices
Door Release: In app slider activates contacts at JO-1MDW
Available at: Apple App Store℠ or Google Play™

Video Door Station

Model: JO-DVF
Power Source: Supplied by inside monitor
Camera: 1/4 inch color CMOS
Mounting: Flush mount using supplied box
Faceplate Material: Stainless steel
Enclosure Rating: IP54
Impact Rating: IK07
Communication style: Handsfree
Operational Tempature: -40°~140° F (-40° ~ 60° C)
Wiring to master: 2-cond., low cap, solid, non-shielded
Max. Wire distance: 165' (22AWG) 330' (18AWG)

Power Supply

Model: PS-1820UL
Power Source:AC 100~240V 50/60Hz
Power Output: DC 18V 2A

Product Specs

Product Type:
Video Intercom Box Sets
Series:
JO Series
Product Group:
Electronic Access Controls
Product Subgroup:
Intercoms
Subcategory:
Video Intercoms
Commercial/Residential:
Commercial
Electronic:
Yes
Product Category:
Electronic Access Controls
Department:
Door Hardware

Aiphone JOS-1FW-JO – Frequently Asked Questions

1) Does the Aiphone JOS-1FW box set include everything needed, or do I have to buy the door station and power supply separately?
The JOS-1FW ships as a complete system: the JO-DVF flush mount video door station, the JO-1MDW 7 inch touchscreen master monitor, and the PS-1820UL power supply. Nothing else is required to get a working entry station and monitor. Two things it does not include are the low capacitance 2 conductor station wire and a MicroSD card if you want storage beyond the onboard memory. One caution for anyone planning a second entrance: the JO-DVF in this set is not sold separately, so a second door station is ordered as a JO-DV.
2) Can the Aiphone JO Series door station be surface mounted, or does it have to go in the wall?
The JO-DVF door station is a flush mount unit and it mounts using the back box supplied in the set, so the wall needs to be opened up for it. If the entry is a solid surface, masonry face, or a jamb where you cannot cut in a box, this is the wrong station for the opening. The inside JO-1MDW monitor is the opposite: it surface wall mounts, or sits on a desk with the MCW-S stand.
3) How far can the Aiphone JO-DVF door station be run from the inside monitor?
Wire distance from the JO-DVF to the master is 165 feet on 22AWG and 330 feet on 18AWG, using 2 conductor low capacitance solid non-shielded cable. Going up a gauge is how you buy distance here, so a run from a lobby door back to a rear office is a jump to 18AWG rather than a different product. The door station takes its power from the inside monitor, so there is no separate power run to the entrance.
4) Will the Aiphone JO-DVF door station hold up outdoors in winter and rain?
The JO-DVF carries an IP54 enclosure rating and an IK07 impact rating, with a stainless steel faceplate, and its operating range runs from -40 to 140 degrees F (-40 to 60 C). IP54 is dust protected and rated against splashing water, so it belongs under some cover rather than in a spot taking direct driven rain. The temperature range covers essentially any North American climate. Built in white LEDs come on automatically so the camera still shows a caller after dark.
5) Can the Aiphone JO Series intercom release an electric strike or maglock?
Door release from the JO-1MDW monitor is a normally open dry contact rated 24V AC/DC at 500mA. That switches a strike or a mag lock power supply within those limits, but it is a dry contact only, not a power source, so the lock gets its own supply and the intercom just closes the circuit. Anything drawing more than 500mA needs a relay between the monitor and the lock. The same contact is what the mobile app slider fires, so a released door works from the touchscreen or off site.
6) How many phones can answer the door on an Aiphone JOS-1FW system?
Up to 8 smartphones or tablets per system, using the Intercom App Type B from the Apple App Store or Google Play. That is the ceiling for a JO Series set, which suits a small office, a single tenant, or a property manager who wants two or three staff on call, but is not a whole staff roster for a large building. The JO-1MDW connects over 2.4 GHz wireless on 802.11b/g/n, and because the monitor is hardwired to the door station, calls still ring and record on site when the internet is down.
7) Does the Aiphone JO-1MDW record video calls, and is there a monthly fee?
Recording is onboard, with no subscription attached to it. Out of the box the JO-1MDW holds 10 calls at 10 seconds each. Drop a micro SDHC card in the slot, up to 32GB, and that goes to 1,000 calls at 10 seconds each. Recording can be triggered by hand or set to capture every call automatically, and clips play back on the monitor or in the app. Note the 10 second per call limit, this is a record of who was at the door, not continuous surveillance footage.
8) Is the Aiphone JOS-1FW rated for commercial use or just homes?
Aiphone classifies the JOS-1FW as commercial, and the door station hardware backs that up: stainless faceplate, IK07 impact rating, IP54 enclosure. It reads well for a small commercial front entrance, a leasing office, or a clinic reception door. Where it runs out is scale, an 8 device app limit and a single master monitor is a one entrance, one answering point system, not a multi tenant directory panel for an apartment building lobby.
9) What power does an Aiphone JOS-1FW intercom system need at the panel?
The included PS-1820UL runs on AC 100 to 240V, 50/60Hz, and puts out DC 18V at 2A. That means a standard outlet or a 120V circuit at the monitor location is all the electrical rough-in required, and it works on 208/240V service as well. The door station draws off the monitor, so the only power point in the whole system is wherever the JO-1MDW lands.
10) Can an Aiphone JO Series video intercom replace a standard doorbell?
Yes, that is one of the intended swaps, the JO-DVF takes the place of an ordinary doorbell button and adds video and two way audio to it. The catch is that it is not a doorbell wiring retrofit. The JO-DVF is flush mounted in its supplied back box and needs a 2 conductor low capacitance solid non-shielded run back to the monitor, so plan on cutting in a box at the entry and pulling new station wire rather than reusing the existing bell wire and chime.
11) Is the Aiphone JO-1MDW handsfree or do you have to hold a button to talk?
Either one at the monitor. The JO-1MDW supports handsfree or push to talk, which is the setting to reach for at a noisy entrance where handsfree keeps clipping. The JO-DVF door station itself is handsfree only, so the visitor never has to hold anything down.
12) What camera is in the Aiphone JO-DVF door station and how well does it see at night?
A 1/4 inch color CMOS camera feeds the 7 inch TFT touchscreen on the monitor. For night, the station switches on built in white LEDs automatically rather than using infrared, so what you see after dark is a lit color image of the person's face at the door. That is the practical difference for identifying a visitor, IR gives you a grey image, the white LED keeps the color.
