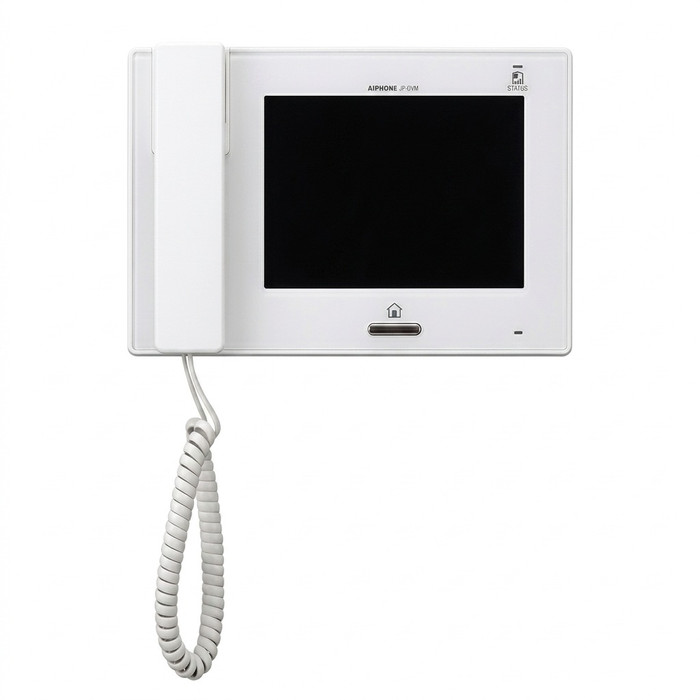

Aiphone Aiphone JP-4MED - 7" Video Master Station with Touchscreen LCD JP-4MED

Aiphone JP-4MED - 7" Video Master Station with Touchscreen LCD

(No reviews yet) Write a Review

Model: JP-4MED

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,506.00
$1,811.75
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

The JP-4MED is a video master station with a 7" touchscreen LCD. The JP-4MED offers handset (duplex) and hands-free (VOX) communication. This unit will support up to four door stations and eight inside stations. All inside stations are equipped with a door release button for the user to allow visitor entry.

The JP‑4MED is also equipped with PTZ and brightness controls, giving the user control of the door station camera angle and camera lighting for better visibility. Picture memory records up to 20 calls to internal memory and 1,000 calls to a removable SD / SDHC card (not included).

The JP‑4MED connects to door stations using 18AWG, 2-conductor cable and connects to sub master stations using CAT‑5e or CAT‑6 cable.

FEATURES

  • 7″ Touchscreen LCD
  • Hands-free (VOX) or handset (duplex) communication
  • Selective door release controls
  • Room to room calling
  • Monitor door station with the touch of a button
  • Hearing aid T-Mode compatibility
  • Digital pan, tilt, and zoom
  • Brightness control
  • Connects to JP-4MED or JP-8Z with a single Cat-5e cable
  • Internal / Built-In picture memory: record max. 20 calls (6 images per call) with up to 5 calls protected from overwriting SD / SDHC card: record max. 1,000 calls (40 images per call) with up to 100 calls protected from overwriting
SPECS
  • Power consumption: 340mA (max.)
  • Video Monitor: 7" TFT color LCD
  • Type of communication: Open voice hands-free auto-voice actuation, Handset Simultaneous Communication
  • Wire Type for Door Station to Master Station: 2-cond., mid cap, solid, non shielded - use Aiphone #871802
  • Wire Type for Power Supply to Master Station: 2-cond., mid cap, solid, non shielded - use Aiphone #871802
  • Wire Type for Master Station to JP-8Z/Sub Master: Cat-5e or Cat-6
  • Wire Distance from Door Station to Master Station: 165' (22AWG), 330' (18AWG)
  • Wire Distance from Master Station to Distribution Adaptor: 650'
  • Wire Distance from Power Supply to Master Station: 16'(22AWG) 33'(18AWG)
  • Door Release Contact: 24V AC/DC, 0.5A (N/O dry closure contact)
  • Temperature Rating: 32-104°F (0-40°C)
  • Dimensions: 5-11/16" H x 10-1/16" W x 1-7/8" D

Manufacturer Resources

JP-4MED Brochure

Product Specs

Product Type:
Master Stations
Series:
JP Series
Product Group:
Electronic Access Controls
Product Subgroup:
Intercoms
Subcategory:
Video Intercoms
Commercial/Residential:
Commercial
Electronic:
Yes
Product Category:
Electronic Access Controls
Department:
Door Hardware

Aiphone JP-4MED – Frequently Asked Questions

1) How many door stations and inside stations can the Aiphone JP-4MED master station handle?
The JP-4MED supports up to four door stations and eight inside stations. That is the ceiling for the system, so if you are wiring a building with more than four entries, or need a ninth inside station, the JP-4MED will not cover it. Every inside station on the system carries a door release button, so a tenant at any station can let a visitor in without going to the main master.
2) What wire do I need to run from the door station to the JP-4MED, and how far can it go?
Door station to master runs on 2-conductor, mid cap, solid, non-shielded wire (Aiphone #871802). Distance is the deciding factor: 165 feet on 22AWG, 330 feet on 18AWG. If your entry is more than 165 feet from where the master hangs, pull 18AWG. Power supply to the master uses the same wire type but a much shorter leash, 16 feet at 22AWG or 33 feet at 18AWG, so plan on mounting the power supply close to the master, not in a remote closet.
3) Can I use Cat-5e for the whole Aiphone JP-4MED video intercom system?
No, and this trips people up. Cat-5e or Cat-6 is only for the run between the JP-4MED and a JP-8Z or sub master station. The door stations do not run on Cat cable, they need 2-conductor, mid cap, solid, non-shielded wire (Aiphone #871802), as does the power supply feed. So a typical job is a mix: Cat-5e between masters, 2-conductor to the doors.
4) Can the Aiphone JP-4MED release an electric strike or maglock directly?
The JP-4MED has a door release contact rated 24V AC/DC at 0.5A, and it is a normally open dry closure contact. A dry contact carries no power of its own, so it switches the strike circuit rather than powering the strike. Size your lock power supply separately and keep the switched load within 24V and half an amp. Release is selective, meaning the user picks which door opens when more than one door station is on the system.
5) Will the JP-4MED fit the wall space where my old intercom master was mounted?
The JP-4MED measures 5-11/16 inches H x 10-1/16 inches W x 1-7/8 inches D. It is a wide, shallow unit, so the constraint is usually horizontal space, not depth. Check that you have a clear 10-1/16 inches of width at the mounting location before you pull the old master off the wall.
6) Does the JP-4MED record images of visitors, and do I need an SD card?
Picture memory is built in for up to 20 calls at 6 images per call, with up to 5 of those calls protected from being overwritten. Add a removable SD or SDHC card and capacity jumps to 1,000 calls at 40 images per call, with up to 100 calls protected. The card is not included, so order one alongside the master if you want the larger archive. For a property manager who wants a record of who came to the door, the built-in 20 calls fills up fast on a busy entry.
7) Can I aim the camera at the door from inside without going outside to adjust it?
Yes. The JP-4MED gives you digital pan, tilt and zoom plus brightness control from the master, so you can reframe what the door station camera shows and compensate for a dark or backlit entry without touching the outdoor unit. Useful on a glass front entry where the afternoon sun washes out the caller. You can also pull up the door station view any time with one button press, not just when someone rings.
8) Is the Aiphone JP-4MED handsfree or does it have a handset?
Both. The JP-4MED does open voice hands-free with automatic voice actuation (VOX) and handset simultaneous communication (duplex). Hands-free is one party at a time and convenient at a front desk; the handset gives you simultaneous two-way talk and more privacy, which matters at a leasing office or a reception counter where callers are within earshot. It also carries hearing aid T-Mode compatibility for users with a telecoil-equipped aid.
9) Can I mount a video intercom master station in an unheated vestibule or garage?
Not the JP-4MED. Its temperature rating is 32 to 104 degrees F (0 to 40 C), so anything that goes below freezing is outside its range. This is an interior master station, meant for conditioned space. Put the master somewhere heated and let the door station take the weather.
10) How much current does the JP-4MED draw, and how do I size the power supply?
Power consumption on the JP-4MED master is 340mA maximum. Size the supply for that draw plus whatever the rest of the system pulls, and remember the supply has to sit within 16 feet of the master on 22AWG or 33 feet on 18AWG, which usually means a supply in the same room or closet rather than a central panel.
11) Can residents call each other on the Aiphone JP-4MED system, or only answer the door?
Room to room calling is included, so inside stations on the system can call one another, not just handle entry calls. In a multi-family or small commercial build that means the intercom does double duty as internal communication between a front office and a back shop, or between floors, without a separate system.
12) Is the Aiphone JP-4MED meant for a commercial building or a house?
The JP-4MED is classed as commercial. Its practical limits tell you where it fits: four door stations, eight inside stations, and a 7 inch color TFT touchscreen at the master. That covers a small office building, a leasing office, a clinic front entry, or a small multi-family property, rather than a large REIT portfolio needing dozens of entries.
13) How far can the JP-4MED be from the distribution adaptor?
The master station to distribution adaptor run tops out at 650 feet, which is the longest allowance in the JP-4MED wiring chart. That is what usually lets you place the master in an office well away from the entry, while the door station run itself is capped at 165 feet on 22AWG or 330 feet on 18AWG.
