Aiphone LS-NVP/C - 3-Gang Sub Station, Vandal Resistant

Aiphone LS-NVP/C - 3-Gang Sub Station, Vandal Resistant

(No reviews yet) Write a Review

Model: LS-NVP/C

In Stock (leaves warehouse same day if ordered before 3pm ET)

$324.00
$242.30
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

The LS-NVP/C is a vandal proof and weather resistant sub station designed for use with the systems listed above. It's constructed of 11 gauge carbon steel with a white powder-coated finish. The LS-NVP/C mounts vertically, either flush into a 3-gang masonry box, or surface mounted with the SBX-NVP. Each unit includes tamper proof screws and tool for installation.

FEATURES

  • Provides communication and call-in
  • Powder-coated steel panel
  • Weather and Vandal Resistant
  • Hands-free communication when master answers
SPECIFICATIONS
  • Type of communication: Open voice hands-free communication
  • Mounting: Mounts flush in wall with 3-gang box/ring or directly on wall with SBX-NVP/A
  • Wire Type: 3 cond., overall shield - use Aiphone #822203(22AWG) or #821803(18AWG)
  • Wire Distance: Door Station to farthest Master Station: 650'(22AWG) 1,600(18AWG)
  • Temperature Rating: 14° ~ 140°F (-10°~60°C)
  • Dimensions: 7-1/2" H x 5-1/2" W x 2" D

Product Specs

Product Type:
Sub Stations
Series:
LEF Series
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Subcategory:
Audio Intercoms
Commercial/Residential:
Commercial
Electronic:
Yes
Product Category:
Electronic Access Controls
Department:
Door Hardware

Aiphone LS-NVP/C – Frequently Asked Questions

1) Can the Aiphone LS-NVP/C be installed outdoors at a gate or loading dock?
Yes. It's built as a weather and vandal resistant station, with an 11 gauge carbon steel panel and white powder-coated finish, and it's rated to operate from 14 to 140 degrees F (-10 to 60 C). Tamper proof screws and the matching tool ship with the unit, which is what you want at an exposed door or gate.
2) Is the Aiphone LS-NVP/C a master station or a door station?
It's a sub station, meaning it calls in and talks but does not initiate selective calls to other stations the way a master does. In an Aiphone LEF Series audio intercom system it sits at the door or remote point, and a LEF master handles answering. You need at least one master station on the system for it to function.
3) Does the LS-NVP/C need a handset, or does it work hands free?
No handset. The LS-NVP/C is an open voice, hands-free station: someone at the door presses the call button, and once the master station answers, the conversation is hands-free at the door panel. That's the reason it works as a flush steel plate with no moving parts to tear off.
4) What else do I need to order with the Aiphone LS-NVP/C to finish the install?

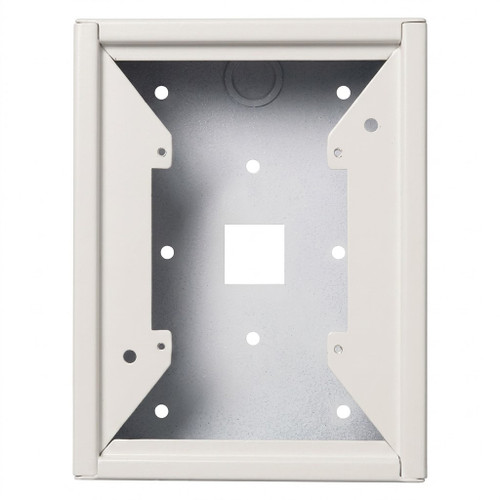

Three things beyond the station itself. A 3-gang masonry box or ring if you're flush mounting, or the SBX-NVP/A surface back box if you're not. Aiphone 3 conductor shielded cable, #822203 in 22 AWG or #821803 in 18 AWG depending on your run length. And a compatible LEF Series master station to answer the call. The tamper proof screws and the driver tool come in the box, so you don't order those separately.
5) Will the LS-NVP/C fit a horizontal 3-gang opening?
No. The LS-NVP/C mounts vertically, and the panel is taller than it is wide at 7-1/2 by 5-1/2 inches. If your existing opening is a horizontal 3-gang, it has to be reworked to a vertical orientation or you surface mount over it with the SBX-NVP/A.
6) I'm standardizing intercom door stations across an apartment property. Is the LS-NVP/C suited to that or is it a residential part?
It's a commercial-duty part. The steel panel, tamper resistant fasteners and the outdoor temperature range are aimed at high-traffic and exposed openings, which is where property managers usually lose plastic door stations. Because it drops into a standard 3-gang opening, repeating the same detail across multiple buildings is straightforward, and the SBX-NVP/A back box covers the openings where you can't recess it.
