Aiphone Aiphone SBX-DV30 - 30° Angle Box for JF/JP/JO-DV Door Stations SBX-DV30

Aiphone SBX-DV30 - 30° Angle Box for JF/JP/JO-DV Door Stations

(No reviews yet) Write a Review

Model: SBX-DV30

In Stock (leaves warehouse same day if ordered before 3pm ET)

$140.00
$99.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

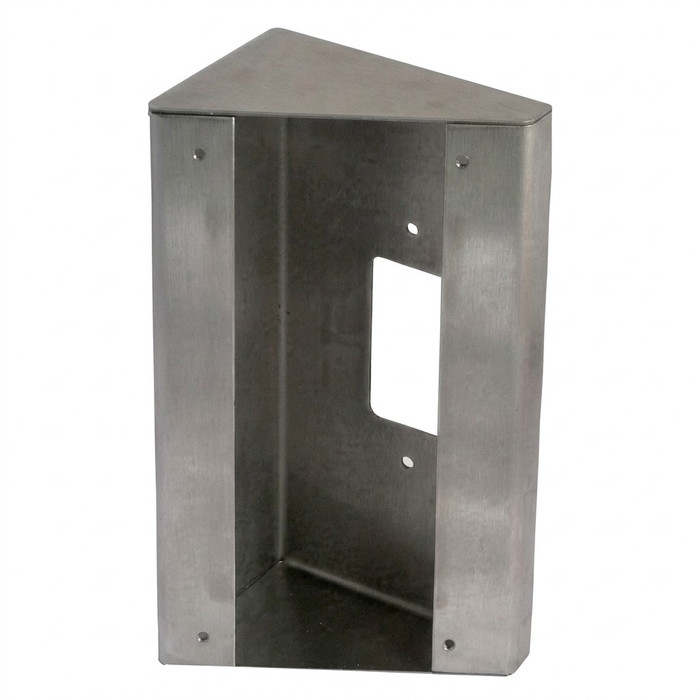

The SBX-DV30 is an 18-Gauge stainless steel surface mount 30° box designed for angle mounting the JF-DV and MK-DV video door stations. This is applicable for wide or double door entrances where the door station needs to be mounted off to the side of the door, and provides a better viewing angle for the camera.

FEATURES

  • Included Hardware: 8x32 with T-15 Torx head
  • Weather resistant
  • Vandal-resistant
  • Inside space for cabling
  • Mounts to flat wall surface
  • Opening at bottom for drainage

SPECIFICATIONS

  • Included Hardware: 8x32 with T-15 Torx head
  • Dimensions: 6-13/16" H x 3-5/8" W x 2-7/8" D

Product Specs

Product Type:
Angle Boxes
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Subcategory:
Accessories
Commercial/Residential:
Commercial
Electronic:
Yes
Product Category:
Electronic Access Controls
Department:
Door Hardware

Aiphone SBX-DV30 – Frequently Asked Questions

1) What does the Aiphone SBX-DV30 angle box actually do for a door station?
The SBX-DV30 is a surface mount box that cants an Aiphone JF-DV or MK-DV video door station 30 degrees off the wall. You use it where the station has to sit off to the side of the opening, such as a wide entrance or a double door, so the camera still points at whoever is standing at the door instead of across the face of the wall.
2) What size opening do I need on the wall for the Aiphone SBX-DV30?
The box measures 6-13/16 inches H x 3-5/8 inches W x 2-7/8 inches D and mounts to a flat wall surface, so it sits proud of the wall rather than dropping into a cut-in. Plan your conduit or cable stub inside that 6-13/16 by 3-5/8 footprint; the box has internal space for the cabling.
3) Will the SBX-DV30 fit any Aiphone door station, or only certain ones?
It is built for the JF-DV and MK-DV video door stations. It is not a universal back box, so if your station is a different Aiphone series, match the angle box to that station rather than assuming this one will take it.
4) Can the Aiphone SBX-DV30 be used outdoors at an exterior entry?
Yes. The box is 18-gauge stainless steel, weather resistant and vandal resistant, with a drainage opening at the bottom so water that gets behind the station can escape. That drain opening has to stay at the bottom, so mount it in the orientation it is made for.
5) Does any mounting hardware come with the Aiphone angle box or do I supply my own?
Fasteners are included: 8-32 screws with a T-15 Torx head. Bring a T-15 Torx driver to the install, since the tamper-style head is part of what makes the assembly vandal resistant. Anchors for the wall substrate are a separate item.
6) Is the Aiphone SBX-DV30 angle box rated for commercial installs?
It is a commercial-grade item, stainless steel construction with weather and vandal resistance, which is what you want on a multi-family lobby entry, a school vestibule, or any exterior door with public traffic.
