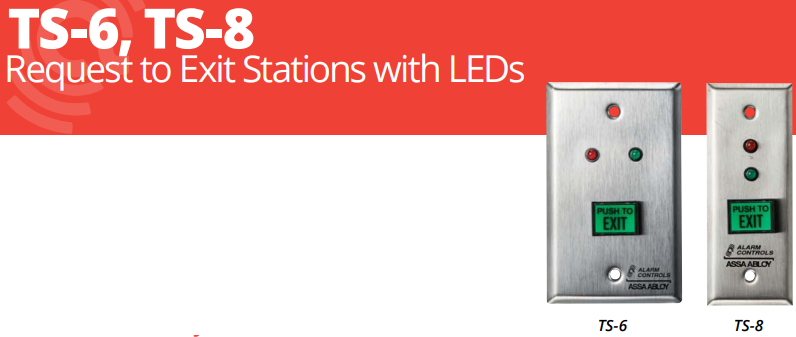

Alarm Controls - TS-6 & TS-8 Request to Exit Stations with LEDs
The single gang TS-6 and narrow stile TS-8
request to exit stations, with rectangular push
button and LED status indicators, provide
a convenient way to add authorized access
control for a variety of applications. Red and
green LED offer an at-a-glance visual indication
of system status.
Features
Standard Features
• TS-6 switch mounted on single gang wall plate with 430 stainless steel finish

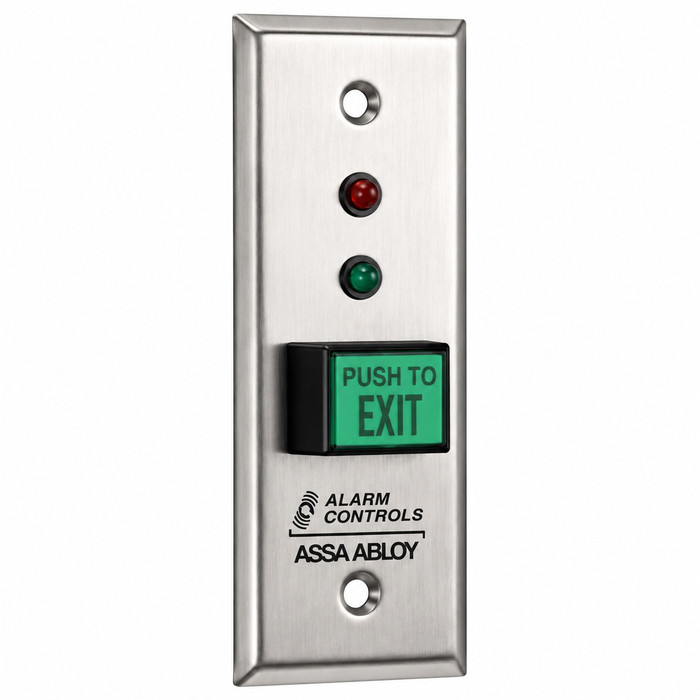

• TS-8 switch mounted on narrow 1-3/4" wall plate with 302 stainless steel finish
• 5/8" x 7/8" green rectangular push button; illuminated with hi-brightness LED
• Button labeled “PUSH TO EXIT” for easy to follow egress instructions
• 1/4" red and green LED status indicators
• Momentary DPDT action switch
Specifications
Certifications & Listings
• UL 294 listed Electrical
• DPDT timed contacts, rated 3A at 35 VDC or 120 VAC
• Timed output is SPDT contacts, rated 2A at 35 VDC
• Switch depth behind plate: 1-1/4"
• Switch terminated with 10” colored leads
• LED operates on 12 or 24 VAC/VDC
Operating Temperature
•-13F to +158 F (-25 to 70 C)
Resources:
- Brand:
- Alarm Controls
- Category:
- Door Trim and Accessories
- Series:
- TS-6 & TS-8
- Subcategory:
- Push Buttons
- Commercial/Residential:
- Commercial
- Temperature Range:
- Minus 13F to 158 F (Minus 25 to 70 C)
- Product Type:
- Push Buttons
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Sensors, Switches, Relays and Timers
- Plate Finish:
- Satin Stainless Steel
- Model:
- TS-6
- Voltage:
- 35/120 VDC
- Finish:
- Satin Stainless Steel
