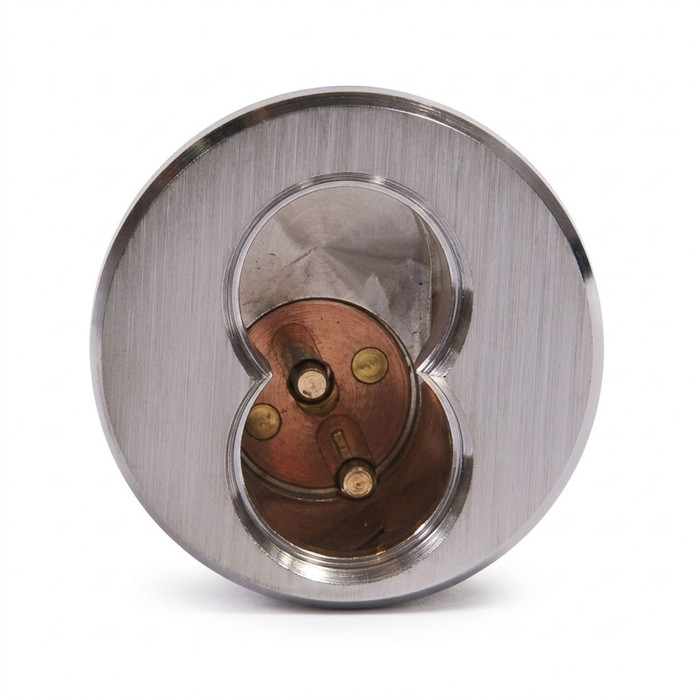

Arrow 16CR-001 SFIC Staked-On Cam, Standard Straight, 001 Configuration

Arrow 16CR-001 SFIC Staked-On Cam, Standard Straight, 001 Configuration

(No reviews yet) Write a Review

Model: 16CR-001

In Stock (leaves warehouse same day if ordered before 3pm ET)

$18.27
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Arrow 16CR-001 SFIC Staked-On Cam, Standard Straight, 001 Configuration

The Arrow 16CR-001 is a Small Format Interchangeable Core (SFIC) Staked-On Cam in a Standard Straight configuration, 001 designation, engineered as a precision replacement part for Arrow cylinder assemblies. Designed for commercial-grade mechanical lock applications, this cam component ensures reliable and consistent operation when restoring or upgrading compatible Arrow cylinder hardware. As an Arrow genuine replacement part, it is built to exact manufacturer tolerances for seamless integration with existing lock cylinder systems.

Key Features

  • SFIC Compatibility: Designed specifically for Small Format Interchangeable Core (SFIC) cylinder systems, enabling straightforward core swaps and serviceability in commercial environments.
  • Staked-On Construction: Staked-on cam design provides a secure, positive attachment to the cylinder tailpiece, ensuring reliable engagement and consistent lock operation.
  • Standard Straight Profile: Standard straight cam geometry is suited for a wide range of lock bodies and applications, offering broad compatibility across Arrow cylinder assemblies.
  • 001 Configuration: Factory-designated 001 configuration ensures precise fitment and drop-in replacement for compatible Arrow cylinder applications.
  • Genuine Arrow Replacement Part: Manufactured as an authentic Arrow component, maintaining original performance standards and fit for Arrow mechanical lock cylinders.
  • Commercial-Grade Application: Engineered for commercial use, delivering the durability and precision required in high-demand door hardware environments.

Technical Specifications

  • Department: Door Hardware
  • Product Category: Mechanical Locks
  • Product Group: Parts and Accessories
  • Subcategory: Parts and Accessories
  • Product Subgroup: Parts and Accessories
  • Product Type: Cylinders
  • Parts and Accessories Type: Replacement Parts
  • Commercial/Residential: Commercial
  • Product Model: 16CR-001
  • Features: Arrow Parts

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Government and Municipal Buildings
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties

Why Arrow 16CR-001?

Arrow mechanical lock components are manufactured to precise tolerances, ensuring genuine replacement parts like the 16CR-001 SFIC Staked-On Cam deliver dependable, drop-in performance in commercial door hardware applications. Engineered for demanding commercial environments, this cam maintains the operational integrity of Arrow cylinder assemblies, supporting long-term reliability across a wide range of commercial facilities.
