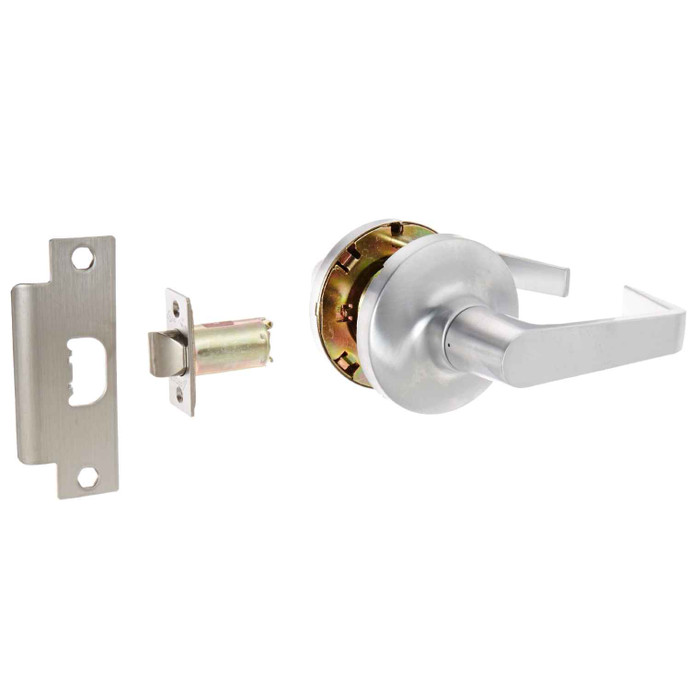

Arrow Arrow GL01 Passage Function Cylindrical Lock - Grade 2, Sierra Lever, Non-Keyed AR-GL01

Arrow GL01 Passage Function Cylindrical Lock - Grade 2, Sierra Lever, Non-Keyed

(No reviews yet) Write a Review

Model: GL01-SR-26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$287.36
$118.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ARROW GL Series Cylindrical Locksets

Arrow GL Series Grade 1 heavy duty levers offer an economically pleasing solution for ADA compliance.
The GL solution is designed with the installer in mind, providing fewer subcomponents to allow for an easier to install system. Simply put, the GL Series will be your number one choice when economy is your first priority.


Standard features

  • Housing: Interlocking lever tubes are made from dichromate plated steel. The tubes are attached to the rose insert. This offers fantastic support for a ridged feel without excess movement. Standard bearing sleeves used on most other Arrow lever series are not used on the GL.
    Requires standard 2-1/8" (53.97mm) bore through door.
  • Thru-Bolts: Removable thru-bolts standard on GL Series.
  • OverDrive: Freewheeling lever action occurs when latch retraction mechanism disengages from lever handle when handle is locked. Built-in stops in the rose insert prevent lever from traveling beyond approximately 70 degrees.
  • Backset: 2-3/4" (69.85mm) standard. See price book for alternate backsets.
  • Latch: Stainless Steel with 1/2" (12.7mm) throw standard. Latch housing is steel, zinc dichromate finish for corrosion resistance. 1" (25.4mm) bore in edge of door is required.
  • Latch Front: Brass and stainless steel. 2-1/4" (57.15mm) x 1-1/8" (28.57mm), 1/8" (3.175mm) in 2" (50.8mm).
  • Exposed Trim: Levers are pressure cast zinc. Streamline rose scalp of brass or bronze complements other series of lever locks.
  • Rose Inserts: Contain coil spring which is a permanent assembly within rose insert. Inside and outside rose scalps are retained by dimples that create an interference fit with the rose inserts. There are no special retention features added to the rose insert that align the scalp.
  • Strike: Brass and stainless steel. ANSI A115.2, 4-7/8" (123.82mm) x 1-1/4" (31.75mm) curved lip strike standard.
  • Door Thickness: 1-3/8" (34.92mm) to 2" (50.8mm).
  • Handing: Non-Handed

DOWNLOADS and RESOURCES

GL Series Cut Sheet


Manufacturer Resources

Arrow Express Catalog

Product Specs

Subcategory:
Cylindrical Locks
Product Group:
Mechanical Locks
Series:
GL Series
Grade:
Grade 2
Keyed Function:
Non-Keyed
Warranty:
5 Year
Standard Latch:
G73 Springlatch; 2-3/4" Backset
Standard Strike:
306 ASA ANSI Strike, 4-7/8" x 1-1/4"
ANSI/BHMA:
F75
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
No
Fasteners:
Wood and Machine Screws
Commercial/Residential:
Commercial
Latch Faceplate:
1-1/8" x 2-1/4"
Function Description:
Latchbolt operated by lever either side.
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Passage
Product Attribute:
Cylindrical Locks
Product Model:
GL01
Product Function:
Passage/Hall/Closet
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4" to 2"
Product Category:
Mechanical Locks
Department:
Door Hardware

Arrow GL01-SR-26D – Frequently Asked Questions

1) Will the Arrow GL01 latch into the strike already in my frame?
It ships with a 306 ASA ANSI strike, 4-7/8 by 1-1/4 inches, which is the common commercial frame cutout, and the latchbolt has a 1/2 inch throw. If your frame carries an ASA strike of that size you can reuse it; if the existing strike is a small T-strike or a round-corner residential plate, use the supplied ASA strike and the frame will need matching prep.
2) Does the Arrow GL01 lock or take a key?
No. The GL01 is a passage set, non-keyed, with the latchbolt operated by the lever from either side at all times. Use it on corridor, hall and closet doors. For a bathroom or bedroom you need a privacy function instead, and for a keyed opening you need an entry, office or storeroom function.
3) I need the door to lock - what takes the place of the Arrow GL01 passage lever?
The Arrow GL01 is non-keyed, so it cannot lock; the latchbolt is operated by the lever from either side. For a keyed opening in the same Grade 2 class, the Hager 2525 is a Grade 2 commercial entry lever, the Falcon B511CP6D is a Grade 2 entry/office lever, the Hager 2580 is a Grade 2 storeroom lever with a Withnell lever, and the Cal-Royal AG05 is a Grade 2 storeroom lockset with a deadlocking latchbolt. For a bath or bedroom that needs privacy rather than a key, the Baldwin Estate 5103 is offered in a privacy function.
4) What is a direct cross-brand equivalent to the Arrow GL01 passage lever?
The Arrow GL01 is a Grade 2 non-keyed cylindrical passage lever with the latchbolt operated by lever from either side. Close equivalents in the same grade and function include the Falcon B101 Grade 2 cylindrical passage lever, the Hager 2510 Grade 2 passage cylindrical lever, the Accentra 5301LN Augusta Grade 2 passage/closet lever, and the Design Hardware J75 Grade 2 passage lever. All four are Grade 2 passage-function cylindrical leversets, so any of them covers a hall, closet or corridor opening that needs latching without locking.
5) What should I use instead of a Grade 2 passage lever on a high-traffic or abuse-prone corridor door?
For openings that need heavy-duty cycle life rather than the Arrow GL01's Grade 2 rating, step up to a Grade 1 passage cylindrical lever. The Falcon K101 is a Grade 1 heavy-duty passage lever that carries a fire rating, the Falcon T101 is a Grade 1 heavy-duty passage lever with pressure release technology, the Corbin Russwin CL3110 is a Grade 1 vandal-resistant passage/closet lever that is fire rated, and the Dexter C1000 passage is a Grade 1 clutching non-keyed passage lever. The Design Hardware X75 is also a Grade 1 passage lever.
6) What looks like a substitute for the Arrow GL01 but will not actually latch the door?
Dummy trim is the common mix-up. The Arrow GL01 is a functioning cylindrical lockset with a G73 springlatch on a 2-3/4 inch backset and a 306 ASA strike. Dummy levers such as the BEST 7KC single dummy trim, the BEST 9K 1DT single dummy trim, the Accentra 455LN Augusta single dummy, the Callan Bentley BN5051 dummy lever, and the Baldwin Estate 5103 half dummy in left or right hand are surface-mounted pulls with no latch at all. They suit inactive leaves and closet doors held by a roller catch, not an opening that needs to latch.
7) Which Grade 2 passage lever should I pick if my doors are thinner than 1-3/4 inch?
The Arrow GL01 covers a door thickness range of 1-3/4 inch to 2 inch. If the openings measure down to 1-3/8 inch, the Hager 2510 Grade 2 passage cylindrical lever is rated for 1-3/8 inch to 2 inch, which spans both. The Design Hardware J75 Grade 2 passage lever is specified for 1-3/4 inch doors. For a wider span on a Grade 1 opening, the Falcon K101 passage lever covers 1-3/8 inch to 2-1/4 inch.
8) For a school classroom door, is the Arrow GL01 the right lever or do I need something else?
The Arrow GL01 is passage function only, non-keyed, with the latchbolt operated from either side, so it suits corridors, halls and closets rather than a classroom that must be secured. Classroom-specific alternatives include the Cal-Royal AG03 classroom lever in the AG Series, the Dexter C1000 Grade 1 classroom clutching keyed lever, and the Dexter C1000 classroom security version, both of which cover 1-3/8 inch to 1-3/4 inch doors. For institutional and utility rooms, the Dexter C1000 asylum F87 is a Grade 1 option for 1-3/8 inch to 2 inch doors.
9) Do I have to specify handing when ordering the Arrow GL01?
No handing to call out. The GL01 is non-handed, so one part number covers left and right hand doors and you can stock a single set across a building.
10) Is the Arrow GL01 heavy enough for a commercial corridor?
It is a Grade 2 commercial cylindrical lockset carrying ANSI/BHMA function F75. Grade 2 suits moderate commercial traffic such as offices, multi-family corridors and closets. For high-abuse openings like a school corridor, step up to a Grade 1 passage set such as the Falcon K101 or the Dexter C1000 passage.
11) Is the Arrow GL01 ADA compliant for a barrier-free opening?
The GL Series uses a lever handle rather than a knob, which is what ADA requires for operation without grasping or twisting. The rose insert stops limit lever travel to roughly 70 degrees.
12) What mounting hardware comes with the Arrow GL01, and do I need thru-bolts?
Removable thru-bolts are standard on the GL Series, and the set includes wood and machine screws. The interlocking lever tubes are dichromate plated steel attached to the rose insert, so the assembly pulls up tight without the bearing sleeves used on other Arrow lever series. Nothing extra is required beyond the latch and strike supplied.
13) What is a good alternative to the Arrow GL01 if I want to match hardware I already run?
Other Grade 2 passage levers in the same class include the Falcon B101, the Hager 2510 with the Withnell lever, the Accentra 5301LN Augusta and the Design Hardware J75. All are Grade 2 cylindrical passage function. Pick by whichever lever style already hangs on the rest of your doors, since the function is the same.
14) I need a lever on a door that does not latch at all, is the GL01 right?
No. The GL01 has a working latchbolt. For a closet or inactive leaf where the lever is pull-only, order a dummy trim instead, such as the BEST 7KC single dummy (Grade 2), the BEST 9K 1DT (Grade 1) or the Accentra 455LN Augusta single dummy.
15) Is there a lighter-duty passage lever I can use on interior residential doors instead of the Arrow GL01?
The Arrow GL01 is specified as commercial Grade 2 hardware. For interior residential openings, Grade 3 passage levers include the Kwikset 200BRNL Breton passage lever set, which covers 1-3/8 inch to 1-3/4 inch doors, and the Callan Asheville AH5011 Grade 3 passage leverset in satin nickel. Note the GL01 covers a door thickness range of 1-3/4 inch to 2 inch, so on a thinner 1-3/8 inch interior door the Kwikset range is the one that matches.
16) How does the Arrow GL01 compare to Bravura passage leversets for a mixed commercial and residential property?
Both are Grade 2 passage leversets. The Arrow GL01 is a commercial cylindrical lock with a Sierra lever, non-handed, on a 2-3/4 inch backset with a 306 ASA strike. Bravura offers Grade 2 passage leversets in several trim styles: Atlanta, Orlando and Miramar with round trim, and Tampa with square trim. The choice between them comes down to trim appearance and rose shape rather than function, since all are passage function at Grade 2.
17) If I want keyless code entry instead of the Arrow GL01, what lever locks do that?
The Arrow GL01 is a non-keyed mechanical passage lever, so it has no code or credential control. For keypad operation on a lever, the Lockey 2835 is a mechanical pushbutton keyless lever lock with passage function that is ADA compliant and fits 1-3/16 inch to 2 inch doors, and the Lockey 2835DC is the double-combination version on the same thickness range. The Lockey 1150 is a heavy-duty mechanical keypad lever set with double combination and passage function for 1-1/8 inch to 2 inch doors, with the 1150S adding an adjustable backset. Electronic options include the Delaney LP250 Grade 2 keypad leverlock.
18) Can I standardize a building on the Arrow GL01 for passage doors and match it with keyed levers from the same grade?
Yes on the passage side: the Arrow GL01 is a Grade 2 non-handed cylindrical passage lever with a 306 ASA ANSI 4-7/8 inch by 1-1/4 inch strike and a 1-1/8 inch by 2-1/4 inch latch faceplate, which is the standard commercial prep. To keep the same door prep on the locking openings, Grade 2 cylindrical companions include the Hager 2525 entry and Hager 2580 storeroom on the Withnell lever, the Falcon B511CP6D entry/office, and the Cal-Royal AG00 entrance lever with a 6-pin Schlage C keyway. Lever styling will differ between brands even where the prep matches.
19) What is the difference between the Arrow GL01 and the Accentra Augusta 4601LN and 5301LN passage levers?
All three are Grade 2 passage/hall/closet cylindrical levers. The Arrow GL01 is in the GL Series with a Sierra lever, non-handed, 2-3/4 inch standard backset and removable thru-bolts. The Accentra 4601LN is a Grade 2 passage cylindrical lever with Augusta trim in the 4600 Series, and the Accentra 5301LN Augusta is the Grade 2 passage/closet lever in the 5300 Series. The distinction among the Accentra pair is the series platform and the GL01 differs in lever design and series.
20) What finishes does the Arrow GL01 Sierra lever come in?
Three: 605 bright brass, 613 satin bronze oil-rubbed, and 626 satin chrome. 626 is the usual match for existing commercial hardware; 613 and 605 are the ones to pick when you are matching decorative trim elsewhere in the building.
21) Will the Arrow GL01 lever hold up outdoors or in a damp area?
The latchbolt is stainless steel and the latch housing is steel with a zinc dichromate finish for corrosion resistance; the latch front and strike are brass and stainless. The levers themselves are pressure cast zinc with a brass or bronze rose scalp. That is a reasonable interior and sheltered-opening build, not a marine or fully exposed exterior spec.
22) Does the Arrow GL01 work as a decorative passage lever, or should I look at a residential-style set?
The Arrow GL01 uses a Sierra lever with a streamline rose scalp of brass or bronze and comes in 605 bright brass, 613 satin bronze oil-rubbed, and 626 satin chrome, which reads as commercial trim. For a decorative interior, the Baldwin Estate 5103 passage lever with the 5048 rose is a passage-function alternative, and Deltana offers entry-function levers in Claremont, Manchester, Morant and Linstead styles, the latter three covering 1-3/8 inch to 2 inch doors. Emtek Classic and Arts & Crafts leversets are decorative but are dummy pairs, so they do not latch.
