Arrow Arrow MLX72 Privacy Function Cylindrical Lock - Grade 2, Key in Lever Cylinder, Sierra Lever, Non-Keyed AR-MLX72

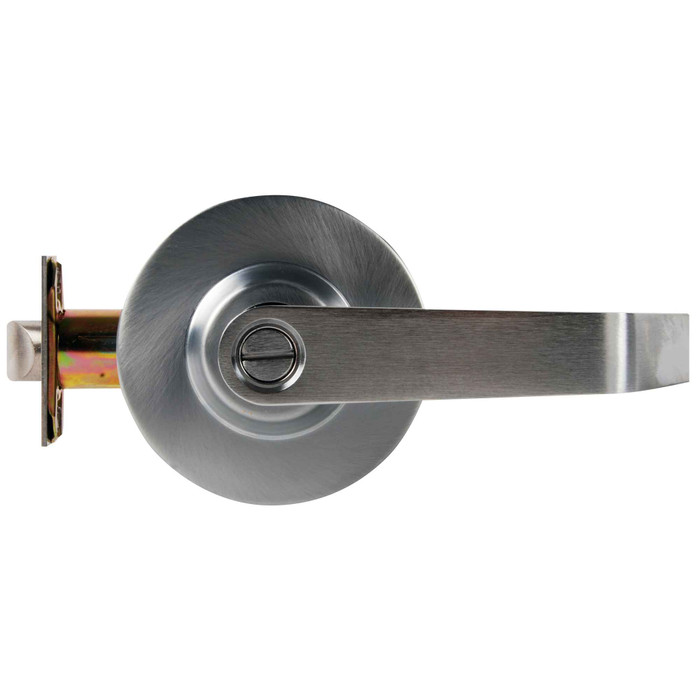

Arrow MLX72 Privacy Function Cylindrical Lock - Grade 2, Key in Lever Cylinder, Sierra Lever, Non-Keyed

(No reviews yet) Write a Review

Model: MLX72-SR-26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$178.19
$91.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ARROW MLX Series Cylindrical Locksets

The MLX Series is a robust Grade 2 lockset featuring a FreeWheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.



Standard features

  • Door Preparation: Requires standard 2-1/8" (53.97mm) bore
    through door.
  • Door thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors
    standard.
  • Backset: 2-3/4" (69.85mm).
  • Latch: Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
  • Latch Front: 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
  • Exposed Trim: MLX Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. MLX Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).
  • Strike: 4-7/8" ANSI (123.83mm)
  • Cylinder: Solid brass 6 pin, Arrow AR and Schlage CS Keyway,
    keyed different
  • Keys: 2 brass keys.
  • Handing: Non-Handed
  • Thru-bolts: Removable thru-bolts standard on RL Series.



DOWNLOADS & RESOURCES

MLX Series Cut Sheet

MLX Series Instruction



Manufacturer Resources

Product Specs

Subcategory:
Cylindrical Locks
Product Group:
Mechanical Locks
Series:
MLX Series
Grade:
Grade 2
Keyed Function:
Non-Keyed
Warranty:
10 Year
Standard Latch:
R23 Springlatch; 2-3/4" Backset
Standard Strike:
306 ASA ANSI Strike, 4-7/8" x 1-1/4"
ANSI/BHMA:
F76
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
No
Fasteners:
Wood and Machine Screws
Commercial/Residential:
Commercial
Latch Faceplate:
1-1/8" x 2-1/4"
Function Description:
Latchbolt operated by lever either side except when inside turnbutton locks outside. Unlocked by rotating button or by using tool outside.
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Privacy/Bed/Bath
Product Attribute:
Cylindrical Locks
Product Model:
MLX72
Product Function:
Privacy/Bed/Bath
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/8" to 1-3/4"
Product Category:
Mechanical Locks
Department:
Door Hardware

Arrow MLX72-SR-26D – Frequently Asked Questions

1) Will the Arrow MLX72 privacy lever fit my existing 2-1/8 inch bore door prep?
Yes. The MLX72 drops into a standard 2-1/8 inch cross bore with a 2-3/4 inch backset, and it fits doors from 1-3/8 to 1-3/4 inches thick. The latch front is 1-1/8 x 2-1/4 inches, which is the standard commercial latch face, so most existing edge prep takes it without rework.
2) How does the Arrow MLX72 privacy function actually lock and unlock?
The lever works from both sides until you turn the inside turnbutton, which locks the outside lever. Rotating the button releases it, and from the corridor side you can unlock it with an emergency tool. That is ANSI/BHMA F76, the standard bed and bath privacy function, so no key and no cylinder are involved.
3) Do I need to order the Arrow MLX72 handed for a left or right swing door?
No handing to specify. The MLX72 is non-handed, so one part number covers both swings and you can stock a single SKU across a building.
4) Will the Arrow MLX72 latch into the strike already in my frame?
It ships with a 306 ASA ANSI strike, 4-7/8 x 1-1/4 inches, which is the standard commercial frame cutout. If your frame is already prepped for a 4-7/8 inch ANSI strike, the existing prep works. Residential frames with a small T-strike or round-corner faceplate will need new prep.
5) Will the Arrow MLX72 work on a 2 inch thick door?
No. Standard range is 1-3/8 to 1-3/4 inches. For thicker leaves, the Hager 2540 privacy lever covers 1-3/8 to 2 inches, and the Falcon K101 goes to 2-1/4 inches though it is a passage function.
6) What is a comparable Grade 2 commercial privacy lever to the Arrow MLX72?
The Hager 2540 with the Withnell lever is a close commercial match. Both the Arrow MLX72 and the Hager 2540 are Grade 2 cylindrical privacy locks with a lever handle. The MLX72 fits doors 1-3/8 inch to 1-3/4 inch thick, while the Hager 2540 covers 1-3/8 inch to 2 inch, so the Hager reaches thicker doors if the opening calls for it.
7) I need the same lever style on a bedroom door but with no locking at all - what do I order instead of the MLX72?
The MLX72 is a privacy function, where the inside turnbutton locks the outside lever. For an opening that should never lock, use a passage function instead: the Falcon B101 is a Grade 2 non-handed cylindrical passage lever, and the Accentra 5301LN Augusta is a Grade 2 cylindrical passage lever in the 5300 Series. Both match the MLX72's Grade 2 rating with the lever free from both sides at all times.
8) Is there a heavier duty alternative to the Arrow MLX72 for a high traffic opening?
The MLX72 is a Grade 2 lock. For a heavier specification, Falcon's K Series K101 and T Series T101 are both Grade 1 heavy duty cylindrical levers, and the Corbin Russwin CL3110 is a Grade 1 vandal resistant cylindrical lever. Note these three are passage function rather than privacy, so they do not carry the turnbutton locking the MLX72 provides.
9) What looks like a substitute for the MLX72 but will not lock a bathroom door?
Dummy trim is the common mix-up. The BEST 7KC 1DT and 9K 1DT single dummy trims, the Accentra 455LN Augusta single dummy, and the Callan Bentley dummy lever are all fixed levers with no latch and no locking mechanism - they are pull trim only. The Arrow MLX72 is a working privacy lock whose latchbolt is operated by the lever from either side until the inside turnbutton locks the outside.
10) The doors I am doing need a key, not a turnbutton - what takes the place of the MLX72?
The MLX72 is non-keyed. For a keyed opening in the same Grade 2 cylindrical lever class, the Cal-Royal AG05 is a storeroom function lockset with a deadlocking latchbolt, the Cal-Royal AG03 is a classroom lever in the AG Series, the Hager 2525 is a Grade 2 entry lever, and the Falcon B511CP6D is a Grade 2 entry/office lever. Pick by function: storeroom stays locked outside, entry/office locks by button or key.
11) My doors are 2 inches thick - will the Arrow MLX72 work, or do I need something else?
The Arrow MLX72 is built for doors 1-3/8 inch to 1-3/4 inch. For a 2 inch door, look at the Hager 2510 Grade 2 passage lever or Hager 2525 Grade 2 entry lever, both rated 1-3/8 inch to 2 inch, the Dexter C1000 Asylum at 1-3/8 inch to 2 inch, or the Falcon K101 Grade 1 passage at 1-3/8 inch to 2-1/4 inch. Match the function you need on the opening when you switch.
12) Is a Grade 2 privacy lever enough for apartment bathrooms and bedrooms?
Grade 2 is the normal commercial spec for bed and bath doors in multi-family and hospitality. The MLX72 is a commercial-rated cylindrical lockset with a stainless steel springlatch, and its FreeWheeling lever spins free when locked so kicking or hanging on the handle does not break the internal works. For a heavily abused opening you would step up to a Grade 1 cylindrical such as the Corbin Russwin CL3100 Series or the Falcon K Series.
13) How much clearance does the Arrow MLX Sierra lever need off the face of the door?
Total projection is 2-17/32 inches from the door face. The lever itself measures 4-3/4 inches long in pressure cast zinc and the rose is wrought brass at 3-11/32 inches diameter. Worth checking against tight door-to-wall conditions and against adjacent trim on paired openings.
14) What hardware comes with the Arrow MLX72 and what do I still need to buy?
The lockset includes the R23 springlatch, the 306 ANSI strike, and wood and machine screws. Installation is a two-screw lockset, so a screwdriver and the standard bore are all a tech needs for a swap. Since it is a privacy set there is no cylinder or key to order.
15) I need the same lever style on a closet door that shouldn't lock. What do I use?
The MLX72 is privacy only, so it is wrong for a closet or hall door where you don't want a locking button. Passage versions of the same Grade 2 cylindrical class include the Accentra 5301LN Augusta, the Falcon B101, and the Hager 2510 with the Withnell lever. For a lever that does nothing at all, a single dummy trim like the BEST 7KC Series is the part.
16) Can the Arrow MLX72 be keyed into my building master key system?
No. The MLX72 is a non-keyed privacy set with a turnbutton, so there is nothing to key. For openings in the same building that need to be on the master system, you need a keyed function from the same MLX Series, such as an entrance, classroom, or storeroom lockset.
17) Can I use the Kwikset 300BRNL Breton privacy lever in place of the Arrow MLX72?
Both are privacy function levers for doors 1-3/8 inch to 1-3/4 inch thick, so the opening prep is in the same range. The difference is the rating: the Arrow MLX72 is Grade 2 and specified as commercial, while the Kwikset 300BRNL Breton is Grade 3. For apartment interiors and light residential doors the Breton is a fit; for commercial corridors and restrooms the MLX72 carries the higher grade.
18) Is there a decorative privacy lever alternative to the Arrow MLX72 for a residential project?
The Baldwin Estate 5103 Privacy lever with the 5048 rose is a privacy function lever with a decorative estate-grade trim treatment. The Arrow MLX72 takes the commercial approach: a Grade 2 lock specified for commercial use with a pressure cast zinc Sierra lever and wrought brass rose. Choose the Baldwin where the trim appearance drives the job and the Arrow where the ANSI grade does.
19) We want keyless code entry instead of a turnbutton privacy lock - what replaces the MLX72?
For code entry, the Lockey 2835 mechanical pushbutton keyless lever lock is ADA compliant with passage function and fits doors 1 3/16 inch to 2 inch, the Lockey 1150 heavy duty keypad lever set fits 1-1/8 inch to 2 inch, and the Delaney LP250 is a Grade 2 electronic keypad leverlock. These control access by code rather than the inside turnbutton the Arrow MLX72 uses, so they suit offices and storerooms rather than bed and bath openings.
20) I need matching passage levers for the closets on the same job as the MLX72 privacy locks - what pairs with it?
Keep the grade consistent. The Arrow MLX72 is a Grade 2 cylindrical privacy lever; Grade 2 cylindrical passage levers in the same class include the Falcon B101, the Accentra 4601LN with Augusta trim in the 4600 Series, the Design Hardware J75 flat lever, and the Hager 2510. Lever shape and rose design differ by brand, so if visual match across the suite matters, hold to one manufacturer's series for both functions.
21) What finishes does the Arrow MLX72 come in for matching existing doors?
Four finishes: 605 bright brass, 626 satin chrome, 613 oil-rubbed satin bronze, and BSP black suede. 626 is the usual commercial standard and the easiest match to existing office and multi-family hardware.
