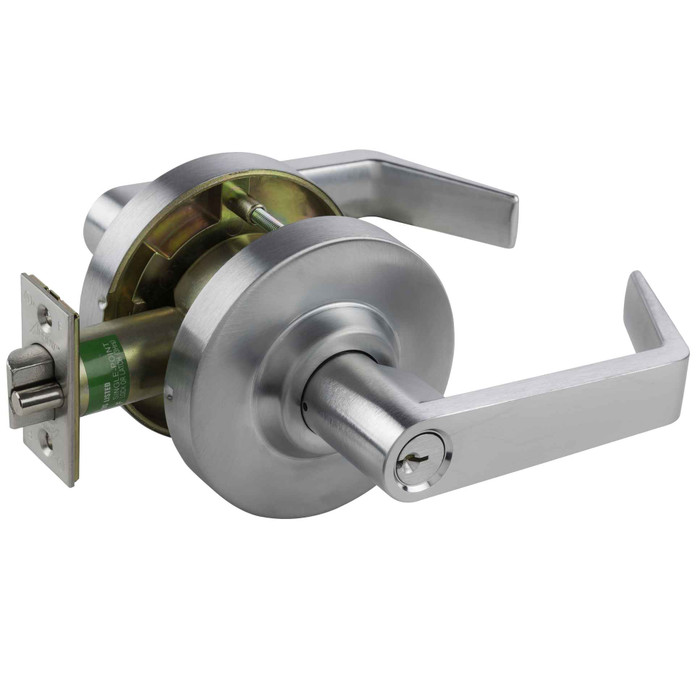

Arrow Arrow MLX81 Entrance Function Cylindrical Lock - Grade 2, Key in Lever Cylinder, Sierra Lever, Keyed AR-MLX81

Arrow MLX81 Entrance Function Cylindrical Lock - Grade 2, Key in Lever Cylinder, Sierra Lever, Keyed

(No reviews yet) Write a Review

Model: MLX81-SR-26D
$194.66
$112.38
Selected Finish is
Selected Cylinder Type is
Selected Keying is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$194.66
$112.38
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ARROW MLX Series Cylindrical Locksets

The MLX Series is a robust Grade 2 lockset featuring a FreeWheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.


Standard features

  • Door Preparation: Requires standard 2-1/8" (53.97mm) bore
    through door.
  • Door thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors
    standard.
  • Backset: 2-3/4" (69.85mm).
  • Latch: Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
  • Latch Front: 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
  • Exposed Trim: MLX Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. MLX Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).
  • Strike: 4-7/8" ANSI (123.83mm)
  • Cylinder: Solid brass 6 pin, Arrow AR and Schlage CS Keyway,
    keyed different
  • Keys: 2 brass keys.
  • Handing: Non-Handed
  • Thru-bolts: Removable thru-bolts standard on RL Series.

DOWNLOADS and RESOURCES

MLX Series Cut Sheet

MLX Series Instruction


Manufacturer Resources

Product Specs

Subcategory:
Cylindrical Locks
Product Group:
Mechanical Locks
Series:
MLX Series
Grade:
Grade 2
Keyed Function:
Single Cylinder
Warranty:
10 Year
Standard Latch:
R21 Deadlatch; 2-3/4" Backset
Standard Strike:
306 ASA ANSI Strike, 4-7/8" x 1-1/4"
ANSI/BHMA:
F109
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
Yes
Fasteners:
Wood and Machine Screws
Commercial/Residential:
Commercial
Latch Faceplate:
1-1/8" x 2-1/4"
Function Description:
Latchbolt operated by lever either side except when outside lever is locked by turn-button inside. When outside lever is locked, latchbolt operated by key outside or turning inside lever. Inside button must be manually released.
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Entrance
Product Attribute:
Cylindrical Locks
Product Model:
MLX81
Product Function:
Entrance
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/8" to 1-3/4"
Product Category:
Mechanical Locks
Department:
Door Hardware

Arrow MLX81-SR-26D – Frequently Asked Questions

1) Will the Arrow MLX81 entrance lever fit a 1-3/8 inch door, or does it need a 1-3/4 inch door?
Both. The MLX81 cylindrical lever lock is built for 1-3/8 inch to 1-3/4 inch doors as standard, so it covers older interior slabs and standard commercial doors without an extension kit. It goes into a standard 2-1/8 inch bore with a 2-3/4 inch backset, and it's non-handed, so one lock works on a left or right hand opening.
2) What does entrance function mean on the Arrow MLX81, and how does the lock get locked and unlocked?
Inside turn-button locking. The lever works from either side until the inside turn-button is pushed, which locks the outside lever. Once locked, the outside lever is opened by key and the inside lever always retracts the latch for free egress. The button does not release when the door is opened or the inside lever is turned, it has to be released by hand. That's the difference between this and an entry/office lock that pops the button automatically, and it's why entrance function suits an apartment or office door someone wants to leave locked all day.
3) Will the Arrow MLX81 latch into the strike I already have in my frame?
It depends what's cut into the frame. The MLX81 ships with a 306 ASA ANSI strike measuring 4-7/8 x 1-1/4 inches, so if the frame already has the standard ANSI 4-7/8 inch strike prep that most hollow metal commercial frames carry, it drops straight in. The latch is an R21 deadlatch on a 2-3/4 inch backset with a 1/2 inch stainless throw and a 1-1/8 x 2-1/4 inch faceplate. A frame prepped only for a small residential T-strike would need to be enlarged for the ANSI strike.
4) Can the Arrow MLX81 be keyed into my existing Schlage keyway so my building master key still works?
The MLX81 conventional cylinder is a solid brass 6-pin available in Schlage CS keyway as well as Arrow AR, so a building already keyed to a Schlage C section can take these on the same system. It ships keyed different with two brass keys unless you order keyed alike. If you run small format interchangeable cores across the property instead, order the IC less core version and drop your own SFIC in, which keeps every door on your existing core program.
5) What do I need to specify when ordering an Arrow MLX81, and does a cylinder come with it?
Two choices decide the part. First cylinder type: Standard Conventional Cylinder arrives complete with cylinder and two keys, or IC SFIC Less Core, which arrives without a core so you supply your own to match your system. Second finish, from 605 bright brass, 626 satin chrome, 613 satin bronze oil-rubbed, or BSP black suede. Keying is a required selection too, keyed different, keyed alike for multiple locks that should share one key, or none if you're taking the less-cylinder route, and there's a key code field if the job has to match an existing bitting.
6) Will the Arrow MLX81 replace an existing cylindrical lever on the same door prep?
On a standard commercial prep, yes. It takes the 2-1/8 inch cross bore with a 2-3/4 inch backset and an ANSI 4-7/8 inch strike, which is the common commercial bored lock prep, so it swaps for another lock cut the same way. Where it will not drop in is a door bored on a 2-3/8 inch backset, which is the other usual backset and common on residential-grade locks, or a frame with only a small residential strike cut. Check the backset by measuring from the door edge to the centre of the bore before ordering.
7) What is the Grade 1 step up from an Arrow MLX81 entrance lever?
The Dexter C1000 Entry/Office is the Grade 1 equivalent by function - a keyed clutching cylindrical lever in entry/office function fitting 1-3/8 inch to 1-3/4 inch doors, the same thickness window the Grade 2 MLX81 covers. For higher-abuse openings, the Corbin Russwin CL3100 series is a Grade 1 vandal resistant cylindrical lever line, and the Falcon K Series is Grade 1 heavy duty.
8) Which entrance lever should I use on a door thicker than 1-3/4 inch?
The Arrow MLX81 is built for 1-3/8 inch to 1-3/4 inch doors. For a thicker leaf, the Deltana 6201 Manchester and Deltana 6411 Morant are entry levers rated 1-3/8 inch to 2 inch, and the Hager 2525 Grade 2 commercial entry lock also covers 1-3/8 inch to 2 inch. On heavy commercial doors up to 2 inch, the Corbin Russwin CL3100 series runs 1-3/4 inch to 2 inch.
9) I need a lever that always stays locked outside and keys in - is the MLX81 right?
No. The MLX81 entrance function unlocks with an inside turn-button and stays unlocked until the button is manually released, so the outside lever is free whenever someone leaves it that way. For an outside lever that is always locked and always keyed, use a storeroom function - the Cal-Royal AG05 Grade 2 storeroom lever with deadlocking latchbolt or the Hager 2580 Grade 2 storeroom lock with Withnell lever.
10) Is a Cal-Royal AG00 entrance lever a drop-in for an Arrow MLX81?
Not without checking the latch. The MLX81 ships with an R21 deadlatch on a 2-3/4 inch backset and a 306 ASA ANSI strike measuring 4-7/8 inch by 1-1/4 inch. The Cal-Royal AG00 entrance lever is specified with a 2-3/8 inch backset, so it lands on a different cross-bore centerline. Within the same Cal-Royal AG family, the AG03 classroom lever is the 2-3/4 inch backset version.
11) Which lever do I use where the opening has to release on a fire alarm or card reader?
The MLX81 is a mechanical entrance lock operated by key and inside turn-button, with no electrical option. For an opening tied into access control, the Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever at 12VAC/DC for 1-3/4 inch to 2 inch doors, available keyed. Note it takes a thicker door than the MLX81's 1-3/8 inch to 1-3/4 inch range.
12) Is the Arrow MLX81 heavy enough for an apartment building corridor or a busy office door?
It's a commercial-rated Grade 2 lock certified to ANSI/BHMA F109, which is the entrance function designation, and the lever freewheels when locked so someone yanking or hanging on it doesn't transfer force into the lock body. For very high abuse openings, a stairwell or a school corridor, Grade 1 is the step up, and ZenSupply carries Grade 1 cylindrical levers such as the Corbin Russwin CL3100 Series and the Falcon T Series. For an apartment entry, office or a light commercial tenant door, Grade 2 is the normal spec.
13) How far does the Arrow MLX81 lever stick out from the door, and will it clear a frame or an adjacent wall?
Total projection from the face of the door is 2-17/32 inches. The Sierra lever itself is pressure cast zinc and 4-3/4 inches long, on a wrought brass rose 3-11/32 inches in diameter. Worth checking on doors in a tight return or beside a jamb where a long lever could catch, and on a pair of doors where two levers meet at the astragal.
14) How hard is the Arrow MLX81 to install, and does it come with the screws?
Two screws and it's on. The MLX Series uses a two-screw lockset install through a standard 2-1/8 inch cross bore, and both wood and machine screws are included so it goes into a wood door or a hollow metal one without a separate fastener pack. Because it's non-handed, there's nothing to reverse in the field. Removable thru-bolts are the standard fixing.
15) What's the difference between an entrance function lever and a storeroom or classroom lever, and which do I want?
It comes down to who controls the lock. Entrance function, which is what the MLX81 is, gives you a turn-button inside so an occupant locks the door themselves and a key gets you in from outside. Storeroom function has no button, the outside lever is locked at all times and only a key retracts it, better for mechanical rooms and supply closets nobody should be able to leave unlocked. Classroom is keyed from outside to lock and unlock with no inside button. ZenSupply carries the Cal-Royal AG05 as a Grade 2 storeroom lever and the Cal-Royal AG03 in the same AG Series for classroom.
16) I need a Grade 2 commercial entry lever but not Arrow specifically. What else is comparable?
The closest cross-brand match is the Hager 2525, a Grade 2 commercial cylindrical entry lock rated for 1-3/8 to 2 inch doors, so it covers a slightly thicker door than the Arrow's 1-3/8 to 1-3/4 inch range. The Falcon B511CP6D is a Grade 2 medium duty cylindrical lever in entry/office function, which differs from true entrance function in how the button releases. If the opening is residential rather than commercial, the Cal-Royal AUS00 is a Grade 3 entrance/office lever for the same 1-3/8 to 1-3/4 inch doors.
17) Can I put Arrow MLX81 locks on every unit door and have one key open all of them?
Yes, order them keyed alike. The MLX81 is a single cylinder lock and the keying selection includes KA keyed alike for multiple locks, so a run of unit or office doors can share one key. Keyed different is the standard if each occupant needs their own. For a property that wants to rekey doors in-house later without pulling locks, the SFIC less core version lets maintenance swap cores instead.
18) What is a lighter-duty alternative to the Arrow MLX81 for a keyed entry door?
The Cal-Royal AUS00 is a Grade 3 entrance/office lever with a solid brass forged body covering 1-3/8 inch to 1-3/4 inch doors, the same thickness range as the Grade 2 MLX81. The Callan Artino and Callan Bennett are also Grade 3 entrance leversets, the Bennett as an entrance and deadbolt combo. The Master Lock RL Series is a Grade 3 keyed entry lever in a return style.
19) Which lever matches the MLX81 on the same corridor doors that do not need a key?
For unkeyed openings alongside a keyed MLX81, the Falcon B101 is a Grade 2 non-handed cylindrical passage lever, matching the MLX81's non-handed build, and the Hager 2510 is a Grade 2 passage lever fitting 1-3/8 inch to 2 inch doors. The Accentra 5301LN Augusta and the Design Hardware J75 are also Grade 2 passage leversets.
20) What looks like an alternative to the MLX81 but will not lock a door?
Dummy trim. The BEST 7KC single dummy trim is a Grade 2 non-keyed lever and the BEST 9K 1DT is the Grade 1 non-keyed version; the Accentra 455LN Augusta is a Grade 1 single dummy, and the Baldwin Estate 5103 comes in left and right hand half dummy. All of those are pull trim with no latch and no cylinder, where the MLX81 is a keyed single-cylinder cylindrical lock with a stainless steel deadlatch. Use dummy trim only on the inactive leaf of a pair.
21) What should I use instead of the MLX81 if I do not want to issue keys?
A keyless lever. The Lockey 2835 is a mechanical pushbutton keyless lever lock with passage function and ADA compliance fitting 1-3/16 inch to 2 inch doors, and the 2835DC is the double combination version. The Lockey 1150 is a heavy duty mechanical keypad lever set for 1-1/8 inch to 2 inch doors, with the 1150S offering an adjustable backset. The Delaney LP250 is a Grade 2 electronic keypad leverlock. The MLX81 by contrast is keyed, with a solid brass 6 pin cylinder in Arrow AR and Schlage CS keyways and two brass keys.
22) Which lever meets a fire-rated opening spec that the Arrow MLX81 does not cover?
The Falcon K101 carries a fire rating as a Grade 1 heavy duty passage lever with non-handed levers and covers 1-3/8 inch to 2-1/4 inch doors, and the Corbin Russwin CL3110 passage/closet is fire rated as a Grade 1 vandal resistant lever for 1-3/4 inch to 2 inch doors. Both are passage function, so where the drawing calls for a keyed entrance opening on a rated door, the function change has to be reviewed against the spec.
23) Is there another Grade 2 keyed entry lever that works on 1-3/8 inch doors like the MLX81?
Yes. The Falcon B511CP6D is a Grade 2 medium duty cylindrical lever in entry/office function, and the Hager 2525 Grade 2 commercial entry lock takes 1-3/8 inch to 2 inch doors. Both sit at the same Grade 2 level as the MLX81, which is built for commercial use across 1-3/8 inch to 1-3/4 inch doors and meets ANSI/BHMA F109.
24) Which Arrow MLX81 finish matches the rest of the hardware in my building?
Four finishes cover the usual specs: 626 satin chrome, the standard commercial finish that matches most closers, hinges and exit devices; 605 bright brass; 613 satin bronze oil-rubbed for darker traditional trim; and BSP black suede. Every one of the four is offered with either the conventional cylinder or the SFIC less core build, so the finish choice doesn't limit your cylinder choice.
25) Can I use a Kwikset 200 or 300 series Breton lever in place of an Arrow MLX81?
They serve different openings. The Kwikset 200BRNL Breton is a Grade 3 passage lever and the 300BRNL Breton is a Grade 3 privacy lever, both for 1-3/8 inch to 1-3/4 inch doors - neither takes a key. The MLX81 is a Grade 2 commercial lock with a single-cylinder keyed outside lever, so on a keyed entrance the Kwikset units are not a substitute.
26) I need a bathroom lock to go with the entrance levers - what pairs with an MLX81?
For a bed or bath opening, the Hager 2540 Grade 2 privacy cylindrical lock with Withnell lever covers 1-3/8 inch to 2 inch doors, and the Baldwin Estate 5103 privacy lever with 5048 rose is the decorative option. The MLX81 itself is an entrance function keyed lock, which is not the right function for a restroom.
