Arrow GL81 Entrance Function C...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$365.64
$205.57
Brand:
Arrow
Category:
Mechanical Locks
Subcategory:
Cylindrical Locks
Product Group:
Mechanical Locks
Series:
GL Series
Grade:
Grade 2
Keyed Function:
Single Cylinder
Warranty:
5 Year
Door Thickness:
1-3/4" to 2"
Standard Latch:
G71 Deadlatch; 2-3/4" Backset
Standard Strike:
306 ASA ANSI Strike, 4-7/8" x 1-1/4"
Handing:
Non-Handed
ANSI/BHMA:
F109
Model:
GL81
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
Yes
Fasteners:
Wood and Machine Screws
Commercial/Residential:
Commercial
Latch Faceplate:
1-1/8" x 2-1/4"
Function:
Entrance
Function Description:
Dead locking latch bolt operated by lever from either side except when outside lever is locked by pushing turn button inside. Key outside or operating inside lever releases turn button unlocking outside lever except when turn button had been rotated
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Entrance

Model: GL81-SR-26D

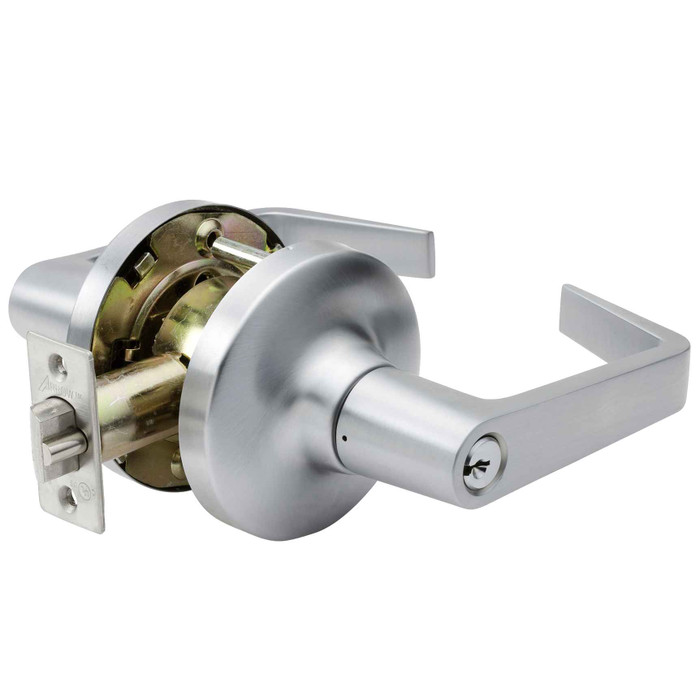

Arrow GL81 Entrance Function Cylindrical Lock - Grade 2, Key in Lever Cylinder, Sierra Lever, Keyed

(No reviews yet) Write a Review
$365.64
$205.57
Selected Finish is
Selected Cylinder Type is
Selected Keying is
Adding to cart… The item has been added
FREE SHIPPING for orders over $149
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
FREE KEYING services available on all locks
Brand:
Arrow
Category:
Mechanical Locks
Subcategory:
Cylindrical Locks
Product Group:
Mechanical Locks
Series:
GL Series
Grade:
Grade 2
Keyed Function:
Single Cylinder
Warranty:
5 Year
Door Thickness:
1-3/4" to 2"
Standard Latch:
G71 Deadlatch; 2-3/4" Backset
Standard Strike:
306 ASA ANSI Strike, 4-7/8" x 1-1/4"
Handing:
Non-Handed
ANSI/BHMA:
F109
Model:
GL81
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
Yes
Fasteners:
Wood and Machine Screws
Commercial/Residential:
Commercial
Latch Faceplate:
1-1/8" x 2-1/4"
Function:
Entrance
Function Description:
Dead locking latch bolt operated by lever from either side except when outside lever is locked by pushing turn button inside. Key outside or operating inside lever releases turn button unlocking outside lever except when turn button had been rotated
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Entrance

ARROW GL Series Cylindrical Locksets

Arrow GL Series Grade 1 heavy duty levers offer an economically pleasing solution for ADA compliance.
The GL solution is designed with the installer in mind, providing fewer subcomponents to allow for an easier to install system. Simply put, the GL Series will be your number one choice when economy is your first priority.


Standard features

  • Housing: Interlocking lever tubes are made from dichromate plated steel. The tubes are attached to the rose insert. This offers fantastic support for a ridged feel without excess movement. Standard bearing sleeves used on most other Arrow lever series are not used on the GL.
    Requires standard 2-1/8" (53.97mm) bore through door.
  • Thru-Bolts: Removable thru-bolts standard on GL Series.
  • OverDrive: Freewheeling lever action occurs when latch retraction mechanism disengages from lever handle when handle is locked. Built-in stops in the rose insert prevent lever from traveling beyond approximately 70 degrees.
  • Backset: 2-3/4" (69.85mm) standard. See price book for alternate backsets.
  • Latch: Stainless Steel with 1/2" (12.7mm) throw standard. Latch housing is steel, zinc dichromate finish for corrosion resistance. 1" (25.4mm) bore in edge of door is required.
  • Latch Front: Brass and stainless steel. 2-1/4" (57.15mm) x 1-1/8" (28.57mm), 1/8" (3.175mm) in 2" (50.8mm).
  • Exposed Trim: Levers are pressure cast zinc. Streamline rose scalp of brass or bronze complements other series of lever locks.
  • Rose Inserts: Contain coil spring which is a permanent assembly within rose insert. Inside and outside rose scalps are retained by dimples that create an interference fit with the rose inserts. There are no special retention features added to the rose insert that align the scalp.
  • Strike: Brass and stainless steel. ANSI A115.2, 4-7/8" (123.82mm) x 1-1/4" (31.75mm) curved lip strike standard.
  • Door Thickness: 1-3/8" (34.92mm) to 2" (50.8mm).
  • Handing: Non-Handed
