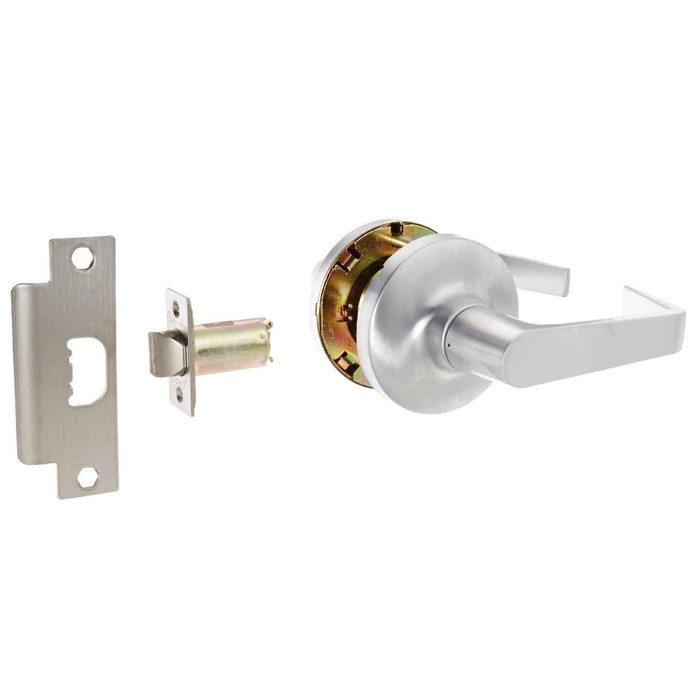

Arrow Arrow GL02 Privacy Function Cylindrical Lock - Grade 2, Sierra Lever, Non-Keyed AR-GL02

Arrow GL02 Privacy Function Cylindrical Lock - Grade 2, Sierra Lever, Non-Keyed

(No reviews yet) Write a Review

Model: GL02-SR-26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$329.59
$138.09
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ARROW GL Series Cylindrical Locksets

Arrow GL Series Grade 1 heavy duty levers offer an economically pleasing solution for ADA compliance.
The GL solution is designed with the installer in mind, providing fewer subcomponents to allow for an easier to install system. Simply put, the GL Series will be your number one choice when economy is your first priority.



Standard features

  • Housing: Interlocking lever tubes are made from dichromate plated steel. The tubes are attached to the rose insert. This offers fantastic support for a ridged feel without excess movement. Standard bearing sleeves used on most other Arrow lever series are not used on the GL.
    Requires standard 2-1/8" (53.97mm) bore through door.
  • Thru-Bolts: Removable thru-bolts standard on GL Series.
  • OverDrive: Freewheeling lever action occurs when latch retraction mechanism disengages from lever handle when handle is locked. Built-in stops in the rose insert prevent lever from traveling beyond approximately 70 degrees.
  • Backset: 2-3/4" (69.85mm) standard. See price book for alternate backsets.
  • Latch: Stainless Steel with 1/2" (12.7mm) throw standard. Latch housing is steel, zinc dichromate finish for corrosion resistance. 1" (25.4mm) bore in edge of door is required.
  • Latch Front: Brass and stainless steel. 2-1/4" (57.15mm) x 1-1/8" (28.57mm), 1/8" (3.175mm) in 2" (50.8mm).
  • Exposed Trim: Levers are pressure cast zinc. Streamline rose scalp of brass or bronze complements other series of lever locks.
  • Rose Inserts: Contain coil spring which is a permanent assembly within rose insert. Inside and outside rose scalps are retained by dimples that create an interference fit with the rose inserts. There are no special retention features added to the rose insert that align the scalp.
  • Strike: Brass and stainless steel. ANSI A115.2, 4-7/8" (123.82mm) x 1-1/4" (31.75mm) curved lip strike standard.
  • Door Thickness: 1-3/8" (34.92mm) to 2" (50.8mm).
  • Handing: Non-Handed



DOWNLOADS & RESOURCES

GL Series Cut Sheet



Manufacturer Resources

Arrow Express Catalog

Product Specs

Subcategory:
Cylindrical Locks
Product Group:
Mechanical Locks
Series:
GL Series
Grade:
Grade 2
Keyed Function:
Non-Keyed
Warranty:
5 Year
Standard Latch:
G73 Springlatch; 2-3/4" Backset
Standard Strike:
306 ASA ANSI Strike, 4-7/8" x 1-1/4"
ANSI/BHMA:
F76
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
No
Fasteners:
Wood and Machine Screws
Commercial/Residential:
Commercial
Latch Faceplate:
1-1/8" x 2-1/4"
Function Description:
Latchbolt operated by lever either side except when inside pushbutton locks outside lever. Unlocked by turning inside lever, using emergency key outside or closing door.
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Privacy/Bed/Bath
Product Attribute:
Cylindrical Locks
Product Model:
GL02
Product Function:
Privacy/Bed/Bath
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4" to 2"
Product Category:
Mechanical Locks
Department:
Door Hardware

Arrow GL02-SR-26D – Frequently Asked Questions

1) How does the Arrow GL02 privacy lock actually lock and unlock on a bathroom door?
The GL02 is a privacy (bed/bath) function lever. The latchbolt works from either lever until you press the inside pushbutton, which locks the outside lever. It unlocks three ways: turn the inside lever, use the emergency key from outside, or simply close the door. That emergency release on the outside is what makes it acceptable for a tenant bathroom or bedroom where staff may need to get in.
2) What door prep does the Arrow GL Series lever need - will it drop into an existing 2-1/8 inch bore?
Yes. The GL Series needs a standard 2-1/8 inch cross bore through the face of the door and a 1 inch bore in the door edge for the latch. That is the normal commercial cylindrical prep, so it goes into most existing bored openings without redrilling the face.
3) What backset does the Arrow GL02 come with, and will it line up with my existing latch prep?
It ships with the G73 springlatch on a 2-3/4 inch backset, which is the standard commercial spacing. If your doors were prepped at 2-3/8 inches the standard latch will not reach the bore centerline, so you need the alternate backset latch instead of the one in the box.
4) Will the Arrow GL02 latch work with the ASA strike already mortised into my frames?
The lock comes with a 306 ASA ANSI strike measuring 4-7/8 by 1-1/4 inches, cut to ANSI A115.2 frame prep. If your frames are already ASA prepped, the new latch drops straight in and you can reuse the existing strike cutout. The latch throw is 1/2 inch, standard for a springlatch, and the latch front measures 2-1/4 by 1-1/8 inches.
5) Is the Arrow GL02 rated for commercial use, and what ANSI function is it?
It is a Grade 2 commercial cylindrical lock carrying ANSI/BHMA function F76, the privacy bed/bath designation. Grade 2 suits multi-family, hospitality, and light commercial interior openings. For heavier institutional traffic, a Grade 1 cylindrical such as the Corbin Russwin CL3100 Series is the step up.
6) What is the closest commercial Grade 2 privacy lever to the Arrow GL02?
The Hager 2540 with the Withnell lever is the nearest Grade 2 cylindrical privacy lock in the same class. Both are Grade 2 cylindrical lever locks in a privacy/bed/bath role; the Arrow GL02 uses the Sierra lever and ships with a G73 springlatch on a 2-3/4 inch backset and a 306 ASA ANSI strike, 4-7/8 inch by 1-1/4 inch. The Hager 2540 lists a 1-3/8 inch to 2 inch door thickness range against the GL02 door thickness range of 1-3/4 inch to 2 inch, so on a 1-3/8 inch door the Hager is the one that covers it.
7) I need the same lever on a hall or closet door with no locking - what do I order instead of the GL02?
The GL02 is a privacy function, meaning the inside pushbutton locks the outside lever, so it is the wrong pick for a door that should never latch locked. For passage duty in the same Grade 2 commercial class, the Falcon B101 is a Grade 2 medium duty cylindrical passage lever with a non-handed design, the Hager 2510 is a Grade 2 passage lever with the Withnell design covering 1-3/8 inch to 2 inch doors, and the Accentra 5301LN Augusta is a Grade 2 passage/closet cylindrical lever in the 5300 Series.
8) The opening is high traffic and the spec calls for Grade 1 - what replaces the Arrow GL02 there?
The GL02 is a Grade 2 cylindrical lockset, so it will not meet a Grade 1 line item. Grade 1 cylindrical levers in the same bored family include the Falcon K101, a Grade 1 heavy duty passage lock with non-handed levers, fire rated, covering 1-3/8 inch to 2-1/4 inch doors; the Falcon T101 Grade 1 heavy duty passage lever with pressure release technology; and the Corbin Russwin CL3110, a Grade 1 vandal resistant passage/closet lever, fire rated, for 1-3/4 inch to 2 inch doors. Note these are passage function rather than privacy, so confirm the function code on the schedule before substituting.
9) The door needs to be keyed, not just privacy - what is the equivalent in a keyed lever?
The Arrow GL02 is non-keyed, with the outside lever released only by turning the inside lever, an emergency key, or closing the door. For a keyed opening in the same Grade 2 cylindrical class, the Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors, the Hager 2580 is a Grade 2 storeroom lever with the Withnell trim for 1-3/8 inch to 2 inch doors, and the Falcon B511CP6D is a Grade 2 cylindrical lever in entry/office function.
10) Is the Arrow GL02 keyed, and does it need a cylinder ordered with it?
Non-keyed. The GL02 privacy lever takes no cylinder and no keyway needs specifying, so it stays out of your masterkey system entirely. Outside access is by emergency key tool only, not a pin tumbler cylinder.
11) Do I have to order the Arrow GL02 handed for a left or right swing door?
No handing to specify. The GL02 is non-handed, so one part number covers left and right hand doors in either swing. For a property manager stocking spares across a building, that means a single SKU on the shelf.
12) What happens if someone forces the outside lever on the Arrow GL when it is locked?
The GL uses OverDrive freewheeling. With the pushbutton set, the latch retraction mechanism disengages from the outside lever so the handle spins free instead of transmitting torque into the works. Stops built into the rose insert hold lever travel to roughly 70 degrees. That is the feature that keeps dorm and apartment bathroom levers alive.
13) I need a passage lever to match my Arrow GL02 privacy locks on closet doors - what should I look at?
The GL02 is privacy only, so closets and corridors need a separate passage function lever. Within the same Grade 2 class ZenSupply carries the Falcon B101 passage cylindrical lever and the Hager 2510 passage lever; both are Grade 2 non-keyed passage sets. They will not visually match the Arrow Sierra lever trim, so if appearance matters across a floor, order the passage function from the Arrow GL Series instead.
14) How is the Arrow GL02 different from a Grade 3 residential privacy lever like the Kwikset 300BRNL?
Both are privacy function, but the GL02 is a Grade 2 commercial cylindrical lock with a cast zinc lever, thru-bolted rose, and an ASA 4-7/8 inch strike. The Kwikset 300BRNL Breton privacy lever is a Grade 3 residential set. For apartment turns and light commercial interiors the Grade 2 is the one that survives the cycle count; for single-family interior doors the Grade 3 is the usual pick.
15) Is the Kwikset 300BRNL Breton privacy lever an acceptable swap for the Arrow GL02?
Only on residential openings. The Kwikset 300BRNL Breton is a Grade 3 privacy lever set for 1-3/8 inch to 1-3/4 inch doors, while the Arrow GL02 is a Grade 2 lock classified for commercial use with a 1-3/4 inch to 2 inch door thickness range. If the job is multi-family corridor or any commercial bed/bath spec, the grade difference is the deciding factor; for a single-family interior door the Kwikset covers the function.
16) Can I use a Baldwin 5103 privacy lever where an Arrow GL02 was specified?
They share the privacy/bed/bath function, so the door behaves the same way for the occupant. The difference is the class of product: the Arrow GL02 is a Grade 2 commercial cylindrical lockset with a G73 springlatch on a 2-3/4 inch backset and a 306 ASA ANSI strike, while the Baldwin Estate 5103 privacy lever with the 5048 rose is a decorative residential-style set. On a commercial schedule that calls a grade, the Arrow is the one that answers it; on a high-end residential interior the Baldwin is the trim match.
17) What do I order for the inactive leaf or a pull-only door instead of the GL02?
The Arrow GL02 is an operating lockset with a latchbolt and a 1 inch edge bore requirement, so it is more hardware than a dummy opening needs. For non-operating trim, the BEST 7KC Series 1DT is a Grade 2 medium duty single dummy trim cylindrical lever, the BEST 9K Series 1DT is the Grade 1 heavy duty single dummy, and the Callan Bentley is a Grade 2 dummy lever. Single dummy covers one side; order two if both faces need trim.
18) How does the Arrow GL02 compare to a keyless pushbutton lever like the Lockey 2835?
Different access method entirely. The Arrow GL02 is a mechanical privacy lock with an inside pushbutton that locks the outside lever, non-keyed, for 1-3/4 inch to 2 inch doors. The Lockey 2835 is a mechanical pushbutton keyless lever lock in passage function that fits 1 3/16 inch to 2 inch doors, and the 2835DC is the double combination version of the same. Choose the Lockey when a code needs to control entry from the outside; choose the GL02 when the requirement is simple occupant privacy on a bed or bath door.
19) We are standardizing a building - can I run Arrow GL02 privacy sets alongside another brand for passage doors?
Yes, if you accept a trim difference between the two door types. The Arrow GL02 uses the Sierra lever and a 306 ASA ANSI strike at 4-7/8 inch by 1-1/4 inch with a 1-1/8 inch by 2-1/4 inch latch faceplate, which matches standard ANSI prep. Grade 2 passage partners on the same prep include the Design Hardware J75 flat lever passage set for 1-3/4 inch doors and the Accentra 4601LN Grade 2 passage lever with Augusta trim. For a single lever profile across both functions, staying within one brand's series is the cleaner route.
20) What fasteners come with the Arrow GL02 and does it thru-bolt?
Removable thru-bolts are standard on the GL Series, and the set ships with wood and machine screws. Thru-bolting is why these hold up on wood doors where a rose-screw-only lock loosens under daily use.
21) What finishes does the Arrow GL02 privacy lever come in for matching existing doors?
Three finishes: 605 bright brass, 613 satin bronze oil-rubbed, and 626 satin chrome. 626 is the usual match for commercial corridors already running satin chrome or brushed hardware; 613 pairs with darker residential-style trim in multi-family.
22) Is a lever like the Arrow GL02 required instead of a knob for accessibility?
Lever handles are what accessible openings call for, and the GL Series was built as an economy lever solution for ADA compliance. Anywhere a knob would need a tight grasp and twist, this lever operates with a closed fist or forearm.
23) Does the Cal-Royal AUS00 work as a substitute for the Arrow GL02?
Not for the same opening. The Cal-Royal AUS00 is a Grade 3 lever lock in entrance/office function with a solid brass forged body, fitting 1-3/8 inch to 1-3/4 inch doors. The Arrow GL02 is a Grade 2 privacy lock for 1-3/4 inch to 2 inch doors, where the inside pushbutton locks the outside lever. The AUS00 is a keyed entry opening; the GL02 is a bed or bath door.
