Arrow Arrow RL01 Passage Cylindrical Lever Lock - Grade 2, Non-Keyed AR-RL01

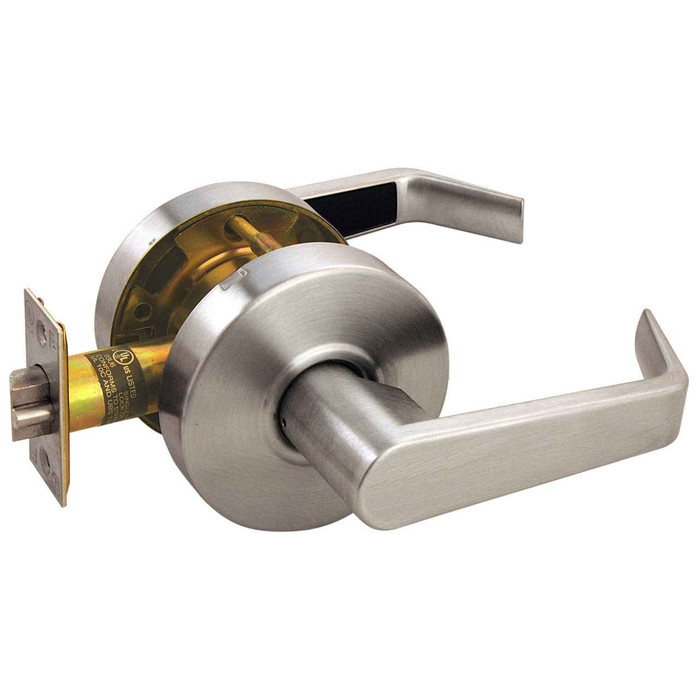

Arrow RL01 Passage Cylindrical Lever Lock - Grade 2, Non-Keyed

(No reviews yet) Write a Review

Model: RL01-SR-26D
Selected Finish is
Selected Lever is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$123.00
$51.78
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ARROW RL Series Cylindrical Locksets

The RL Series has been enhanced to offer removable throughbolts and a wide variety of designs, finishes and functions. The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.



Standard features

  • Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
  • Door thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
  • Backset: 2-3/8" (60.31mm) or 2-3/4" (69.85mm).
  • Latch: Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions.
  • Latch Front: 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
  • Exposed Trim: RL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. RL Roses are wrought brass 3-3/8" (85.73mm) diameter. Total projection from face of door is 2-1/2" (63.5mm).
  • Strike: 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
  • Cylinder: – Solid brass 6 pin. Arrow "A" keyway standard. Available in Schlage CS keyway and other competitive keyways.
  • Keys: 2 brass keys.
  • Handing: Non-Handed
  • Thru-bolts: Removable thru-bolts standard on RL Series.



DOWNLOADS & RESOURCES

RL Series Cut Sheet

RL Series Instructions



Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
RL Series
Grade:
Grade 2
Keyed Function:
Non-Keyed
Warranty:
5 Year
Standard Latch:
R73 Springlatch; 2-3/4" Backset
Standard Strike:
R62 ASA Strike, 4-7/8" x 1-1/4"
ANSI/BHMA:
F75
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Subcategory:
Cylindrical Locks
Keyed:
No
Latch Throw:
1/2"
Fasteners:
Wood and Machine Screws
Commercial/Residential:
Commercial
Latch Faceplate:
1-1/8" x 2-1/4"
Function Description:
Latchbolt operated by lever either side.
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Passage
Product Attribute:
Cylindrical Locks
Product Model:
RL01
Product Function:
Passage/Hall/Closet
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/8" to 1-3/4"
Product Category:
Mechanical Locks
Department:
Door Hardware

Arrow RL01-SR-26D – Frequently Asked Questions

1) Will the Arrow RL01 passage lever fit a 1-3/8 inch door, or do I need a 1-3/4 inch door?
Both. The RL01 passage lever is built for 1-3/8 inch through 1-3/4 inch doors as standard, which covers the older interior doors you find in apartment turnovers as well as standard commercial leaf. It needs a standard 2-1/8 inch cross bore through the door, so it drops into an existing bored prep without redrilling the face.
2) Does the Arrow RL01 lever lock or take a key?
No key, no lock. The RL01 is passage function only: the latchbolt is retracted by the lever from either side and there is no cylinder, no button, no thumbturn. Use it on hallway, closet, and corridor doors where the opening never needs to be secured. If the door needs to lock, you want a different function in the RL family, not this one.
3) Do I have to order the Arrow RL01 handed for a left or right hand door?
Handing is not a factor. The RL01 is non-handed, so one part number works on a left or right hand door swinging either direction. For a property manager buying a pallet of passage sets for a building, that means no field sorting and no wrong-hand returns.
4) Which backset does the Arrow RL01 come with, and will it work in a 2-3/8 inch prep?
The set ships standard with the R73 springlatch at a 2-3/4 inch backset, and the RL Series is built for either 2-3/8 inch or 2-3/4 inch backsets, the two backsets you find on nearly every bored door. Check the hole you have before ordering: the latch front changes with the backset, 1 x 2-1/4 inches on the 2-3/8 inch latch and 1-1/8 x 2-1/4 inches on the 2-3/4 inch.
5) Will the Arrow RL01 latch into the strike already in my frame?
It depends on which strike is in the jamb. The RL01 ships with the R62 ASA strike, 4-7/8 x 1-1/4 inches, which is the tall commercial strike cut into a hollow metal frame. The latch throws 1/2 inch, so the existing strike lip and pocket have to give it that much travel. Arrow also builds the RL Series for a 2-3/4 inch T strike and a 2-1/4 inch full lip strike, so a wood jamb with a small T strike can be matched instead of chiselling out for the ASA plate.
6) I need a passage lever for a high traffic corridor - what steps up from a Grade 2 Arrow RL01?
The Arrow RL01 is a Grade 2 passage lever built for multi-family housing and light commercial openings. For heavier traffic the Falcon K101 is a Grade 1 heavy duty passage cylindrical lock with non-handed levers, fire rated, covering 1-3/8 inch to 2-1/4 inch doors. The Falcon T101 is also a Grade 1 heavy duty cylindrical passage lever, built with pressure release technology. The Corbin Russwin CL3110 is a Grade 1 vandal resistant passage/closet lever, fire rated, for 1-3/4 inch to 2 inch doors. The Design Hardware X75 is a Grade 1 passage lever with a flat lever for 1-3/4 inch doors.
7) What is the closest Grade 2 passage lever equivalent to the Arrow RL01?
The Arrow RL01 is a Grade 2 non-keyed cylindrical passage lever with the latchbolt operated by the lever from either side. The Accentra 5301LN Augusta from the 5300 Series is also a Grade 2 lever in the Passage/Hall/Closet function, as is the Accentra 4601LN with Augusta trim in the 4600 Series. The Falcon B101 is a Grade 2 medium duty cylindrical passage lever with a non-handed design, matching the RL01's non-handed build. The Hager 2510 with Withnell design is a Grade 2 passage lever rated for 1-3/8 inch to 2 inch doors, where the RL01 covers 1-3/8 inch to 1-3/4 inch.
8) My doors are thicker than 1-3/4 inches - what passage lever fits instead of the Arrow RL01?
The Arrow RL01 fits 1-3/8 inch to 1-3/4 inch doors. For thicker leaves, the Falcon K101 Grade 1 heavy duty passage lock covers 1-3/8 inch to 2-1/4 inch, the Hager 2510 Grade 2 passage lever covers 1-3/8 inch to 2 inch, and the Corbin Russwin CL3110 Grade 1 passage/closet lever covers 1-3/4 inch to 2 inch. Confirm the door thickness at the bore before ordering, since the through-bolt length is what governs the fit.
9) What looks like a substitute for the Arrow RL01 passage lever but will not work on a latching door?
The Arrow RL01 has a working latchbolt operated by the lever from either side, so it latches the door. Dummy levers look similar on the door but have no latch and no moving mechanism. The BEST 7KC single dummy trim lever is Grade 2 medium duty and the BEST 9K 1DT single dummy trim is Grade 1 heavy duty, both dummy function. The Accentra 455LN Augusta is a Grade 1 single dummy lever, and the Callan Bentley BN5051 is a Grade 2 dummy lever. The Baldwin Estate 5103 half dummy is handed, offered left hand and right hand, where the RL01 is non-handed. Order a dummy only for a door leaf that does not need to latch.
10) The opening needs to lock - what do I order instead of an Arrow RL01 passage lever?
The Arrow RL01 is non-keyed and passage function only, so it never locks. For a keyed opening in the same Grade 2 class, the Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors, the same door range as the RL01. The Cal-Royal AG00 entrance lever takes a 6-pin Schlage C keyway keyed different on a 2-3/8 inch backset, and the AG03 classroom lever from the AG Series uses the same 6-pin Schlage C keyway on a 2-3/4 inch backset. The Hager 2580 Withnell is a Grade 2 storeroom lever and the Hager 2525 is a Grade 2 commercial entry lock, both for 1-3/8 inch to 2 inch doors. For a bath or bedroom, the Hager 2540 Withnell is a privacy cylindrical lock.
11) Is the Master Lock RL Series the same as the Arrow RL01?
No. Both carry an RL Series name but they are different locks. The Master Lock BC Series RL is a Grade 3 return style lever in keyed entrance function. The Arrow RL01 is a Grade 2 non-keyed passage lever where the latchbolt is operated by the lever from either side, non-handed, for 1-3/8 inch to 1-3/4 inch doors. Order by the full Arrow part number so the keyed entrance model does not ship in its place.
12) What passage lever should I use on a classroom or institutional door instead of the Arrow RL01?
The Arrow RL01 is a Grade 2 non-keyed passage lever, so it holds no security function for a classroom. The Dexter C1000 classroom lever is Grade 1 with a clutching keyed mechanism for 1-3/8 inch to 1-3/4 inch doors, and the C1000 classroom security version is Grade 1 on the same door range. For patient rooms and utility spaces, the Dexter C1000 asylum lock is Grade 1 in F87 asylum/institution/utility function for 1-3/8 inch to 2 inch doors. The Cal-Royal AG03 classroom lever uses a 6-pin Schlage C keyway on a 2-3/4 inch backset, which matches one of the two backsets the RL01 is built in.
13) What lever styles and finishes does the Arrow RL01 passage set come in?
Two lever designs, Broadway (BRR) and Sierra (SR), each offered in six finishes: 605 bright brass, 606 satin brass, 612 satin bronze, 613 oil-rubbed bronze, 625 bright chrome, and 626 satin chrome. Twelve combinations in all, so you can match the passage doors to the keyed openings already in the building. The levers are pressure cast zinc at 4-3/4 inches long on a wrought brass rose 3-3/8 inches in diameter.
14) How far does the Arrow RL01 lever stick out from the door face?
Total projection is 2-1/2 inches from the face of the door, with the lever itself 4-3/4 inches long. That matters where the door swings back against a wall or where a lever could catch on adjacent trim or a second leaf in a tight vestibule.
15) Does anything else need to be ordered to install an Arrow RL01, or is the set complete?
It installs complete. Wood and machine screws come with the set, along with the R73 latch and R62 ASA strike, so you have what the door and the frame both need. Throughbolts are standard on the RL Series and they are removable, which is the detail that saves time on a retrofit: you can pull the trim off without dismantling the chassis.
16) What is the difference between a passage lever and a dummy lever for a closet door?
A passage set like the Arrow RL01 has a working latchbolt that the lever retracts from either side, so the door stays shut until someone pushes the lever. A dummy is a fixed pull with no latch and no moving parts, used on an inactive leaf or a door held by a ball catch. If the closet door needs to stay closed on its own, buy the passage. If you just need something to grab, a dummy trim like the BEST 7KC Series single dummy or the Accentra 455LN Augusta is the cheaper answer.
17) Can I get the Arrow RL01 keyed to match the other locks in my building?
There is nothing to key. The RL01 is the passage version of the RL Series and carries no cylinder at all. Keying only comes into play on the locking functions in the family, where Arrow's A keyway is standard and Schlage C and other competitive keyways are offered. Order the RL01 for the doors that never lock and put the keyed function on the doors that do, and the trim will match across both.
18) The Arrow RL01 is more lock than I need for interior residential doors - what is a lighter option?
The Arrow RL01 is a Grade 2 commercial cylindrical passage lever. For lighter residential interior openings, the Kwikset 200BRNL Breton passage lever set is Grade 3 for 1-3/8 inch to 1-3/4 inch doors, the same door range the RL01 covers. The Kwikset 200DL Delta passage lever is a hall and closet lock, reversible, supplied with an adjustable 6AL latch and RCS strike. The Callan Asheville AH5011 is a Grade 3 passage leverset in satin nickel.
19) How does the Arrow RL01 compare to the Design Hardware J75 passage lever?
Both are Grade 2 passage levers. The Design Hardware J75 is a J Series passage lockset with a flat lever for 1-3/4 inch doors. The Arrow RL01 fits 1-3/8 inch to 1-3/4 inch doors, is non-handed, and is offered with the Broadway lever or the Sierra lever in bright brass, satin brass, satin bronze, oil-rubbed bronze, bright chrome and satin chrome. Design Hardware also builds the X75 to the same passage function at Grade 1 for 1-3/4 inch doors.
20) Is there a decorative passage lever alternative to the Arrow RL01 for a residential-style opening?
The Arrow RL01 uses pressure cast zinc levers on wrought brass roses and is a commercial Grade 2 lock. For a decorative look, the Baldwin Estate 5103 passage lever with the 5048 rose is a passage function lever, with matching Estate 5103 privacy and half dummy versions in the same trim so an entire suite of doors reads the same. Bravura offers Grade 2 passage leversets in several trims: Atlanta and Orlando with round trim, Tampa with square trim, and Miramar with round trim in US4 satin brass.
21) I want keyless code entry rather than an Arrow RL01 passage lever - what are the options?
The Arrow RL01 is a mechanical non-keyed passage lever with no code entry. For pushbutton access, the Lockey 2835 is a mechanical pushbutton keyless lever lock with passage function and ADA compliance for 1 3/16 inch to 2 inch doors, and the 2835DC adds a double combination on the same door range. The Lockey 1150 is a heavy duty mechanical keypad lever set with double combination in passage function for 1-1/8 inch to 2 inch doors, and the 1150S version has an adjustable backset. For electronic entry, the Delaney LP250 is a Grade 2 electronic keypad leverlock.
22) For an office door that needs to be locked from outside but always exit freely, what replaces the Arrow RL01?
The Arrow RL01 is passage function, always free from both sides, so it offers no locking. For entrance and office use, the Falcon B511CP6D is a Grade 2 medium duty cylindrical lever in entrance/office function, the Hager 2525 is a Grade 2 commercial entry lever for 1-3/8 inch to 2 inch doors, and the Dexter C1000 entry/office lever is Grade 1 with a clutching keyed design for 1-3/8 inch to 1-3/4 inch doors. The Cal-Royal AUS00 is a Grade 3 entrance/office lever with a solid brass forged body for 1-3/8 inch to 1-3/4 inch doors.
23) Will an Arrow RL01 hold up in an apartment building with a lot of turnover?
That is what the RL Series was built around. It is a Grade 2 commercial cylindrical lockset aimed at multi-family housing and light commercial work, with a cold rolled steel chassis in a zinc dichromate finish for corrosion resistance. The removable throughbolts are the practical part for a maintenance crew, since trim comes off for a finish swap or a damaged lever without pulling the whole lock out of the door.
How fast can I get the Arrow RL01-SR-26D delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Arrow RL01-SR-26D come with a warranty?
Absolutely. The Arrow RL01-SR-26D is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Arrow RL01-SR-26D?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Arrow RL01-SR-26D from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
!
