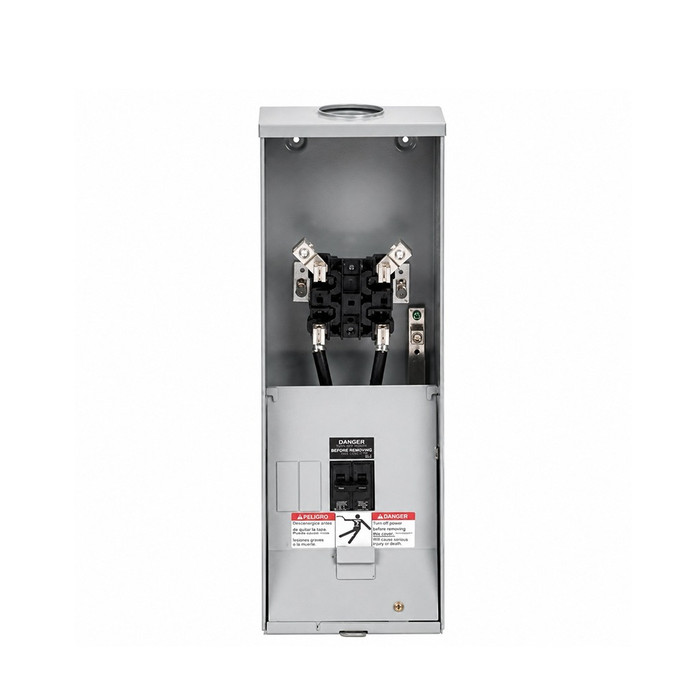

B-Line 2M2RP F Eaton series meter breakers, 200 A, Single meter position, Ring type, 3R, Overhead, ANSI 61 gray painted, AW Hub, 010 kAIC, #6 - 250 MCM, MCB, (1) 200 A, 2P, Galvanized, Flush mount, 4 jaws, 3 wires, 1 phase, 1Ø/3W, 120/240 V

B-Line 2M2RP F Eaton series meter breakers, 200 A, Single meter position, Ring type, 3R, Overhead, ANSI 61 gray painted, AW Hub, 010 kAIC, #6 - 250 MCM, MCB, (1) 200 A, 2P, Galvanized, Flush mount, 4 jaws, 3 wires, 1 phase, 1Ø/3W, 120/240 V

(No reviews yet) Write a Review

Model: 2M2RP F

In Stock (leaves warehouse same day if ordered before 3pm ET)

$5,072.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series meter breakers, 200 A, Single meter position, Ring type, 3R, Overhead, ANSI 61 gray painted, AW Hub, 010 kAIC, #6 - 250 MCM, MCB, (1) 200 A, 2P, Galvanized, Flush mount, 4 jaws, 3 wires, 1 phase, 1Ø/3W, 120/240 V

Manufacturer Resources

Product Specs

Amperage Rating:
200A
Application:
Single meter position
Bus Material:
Aluminum
Certifications:
UL
Compliances:
EUSERC Approved
Interrupt Rating:
10 kAIC
Main Circuit Breaker:
(1) 200 A, 2P
Phase:
Single-phase
Product Height:
32 in
Product Length Depth:
4.625 in
Product Weight:
28 lb
Product Width:
8 in
Voltage Rating:
120/240V
Department:
Electrical
Product Finish:
ANSI 61 gray paint
Product Material:
Galvanized steel
Product Length:
4.625 in

B-LINE 2M2RP F – Frequently Asked Questions

1) Will the B-Line 2M2RP F meter breaker work on a standard 120/240V single-phase residential service?
Yes. The 2M2RP F is built for 120/240 V single-phase, 3-wire service with a single meter position, and it carries a 200 A rating with one 200 A 2-pole main breaker in the can. That is the normal configuration for a single-family dwelling or a single tenant space fed from a 1-phase overhead drop.
2) Is this meter breaker for overhead or underground service entrance?
Overhead. The 2M2RP F is configured for an overhead service with an AW hub on top for the service mast conduit. If the utility is feeding you from an underground lateral, you need an underground-configured meter main instead, not this one.
3) Can the B-Line 2M2RP F be surface mounted, or does it have to go in the wall?
It is a flush mount enclosure, so it sets into the wall with the trim finishing flat against the finished surface. The can is 32 in high, 8 in wide and 4.625 in deep, so frame the opening to accept that depth. If the utility or the job calls for a surface-mounted can on a finished wall, this is the wrong version.
4) What size service entrance conductors will the lugs on this 200 A meter main take?
The terminals accept #6 through 250 MCM conductors, which covers the usual 200 A aluminum and copper service entrance sizes. The bus in the enclosure is aluminum, so use an antioxidant compound on aluminum conductors as you would on any aluminum bus.
5) Is the 2M2RP F a ringless or ring-type meter socket?
Ring type, with 4 jaws. Utilities differ on which style they will accept and whether they seal with a ring, so match the socket style your serving utility specifies. The 4-jaw arrangement is the single-phase 3-wire configuration.
6) Is a 10 kAIC interrupting rating enough for my service?
The 2M2RP F is rated 10 kAIC. That is adequate where the available fault current at the service point is 10,000 A or less, which is common on typical residential transformers. If the utility's available fault current letter comes back higher than 10 kA, you need equipment with a higher interrupting rating.
7) Is the B-Line 2M2RP F EUSERC approved for West Coast utility jobs?
Yes, it is EUSERC approved and UL listed. That matters on utility work in the western states where the serving utility requires EUSERC-conforming metering equipment before they will set the meter.
8) Can this meter breaker be installed outdoors?
It carries a 3R enclosure rating, so it is suitable for outdoor use against rain and falling water. The enclosure is galvanized steel finished in ANSI 61 gray paint. Recessing a 3R can into an exterior wall means flashing and sealing the opening so water is not driven in behind the trim.
9) Does this Eaton B-Line meter main include branch breaker space for a panel?
No. The 2M2RP F is a meter socket with a main breaker only, one 200 A 2-pole main in a single meter position. There is no branch circuit space in it. Feed a separate load center downstream for your branch circuits.
10) How much does the 2M2RP F weigh and is it a one-man set?
28 lb, so one electrician can handle it on the wall, though setting a 32 in tall can plumb in a rough opening goes faster with a second pair of hands.
11) What is the exact part number to order this Eaton B-Line 200 A flush meter breaker?
Order it as B-Line 2M2RP F. That designation covers the 200 A, single position, ring type, 3R, overhead, flush mount, 120/240 V single-phase configuration with the 200 A 2-pole main.
