B-Line 2M2RP Eaton series mete...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$4,718.00
Image coming soon

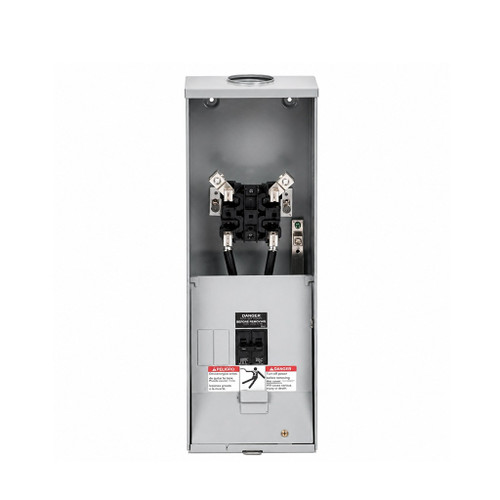

B-Line 2M2RP Eaton series meter breakers, 200 A, Single meter position, Ring type, 3R, Overhead, ANSI 61 gray painted, AW Hub, 010 kAIC, #6 - 250 MCM, MCB, (1) 200 A, 2P, Galvanized, Surface mount, 4 jaws, 3 wires, 1 phase, 1Ø/3W, 120/240 V

(No reviews yet) Write a Review

Model: 2M2RP

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4,718.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series meter breakers, 200 A, Single meter position, Ring type, 3R, Overhead, ANSI 61 gray painted, AW Hub, 010 kAIC, #6 - 250 MCM, MCB, (1) 200 A, 2P, Galvanized, Surface mount, 4 jaws, 3 wires, 1 phase, 1Ø/3W, 120/240 V

Manufacturer Resources

Product Specs

Amperage Rating:
200A
Application:
Single meter position
Bus Material:
Aluminum
Certifications:
UL
Compliances:
EUSERC Approved
Interrupt Rating:
10 kAIC
Main Circuit Breaker:
(1) 200 A, 2P
Phase:
Single-phase
Product Height:
32 in
Product Length Depth:
4.625 in
Product Weight:
25 lb
Product Width:
8 in
Voltage Rating:
120/240V
Department:
Electrical
Product Finish:
ANSI 61 gray paint
Product Material:
Galvanized steel

B-LINE 2M2RP – Frequently Asked Questions

1) Will the B-Line 2M2RP meter breaker work on a 120/240V single-phase residential service?
That's exactly what the 2M2RP is built for. It's rated 120/240 V, single-phase, with a 4-jaw socket wired 1 phase / 3 wire, and a single 200 A 2-pole main breaker. If your service is 3-phase or needs a 5-jaw or 7-jaw socket, this is the wrong unit.
2) Is the 2M2RP a ringless or ring-type meter socket?
Ring type. The 2M2RP takes a sealing ring style meter, so if your utility specifies a ringless cover you need a different socket. Utility acceptance is the deciding factor here, and many западных utilities call out one or the other on the service application.
3) Can the 2M2RP meter breaker be mounted outdoors?
Yes. The enclosure is NEMA 3R rated for outdoor rain-tight service, built from galvanized steel and finished in ANSI 61 gray paint. It surface mounts to the wall.
4) Is the 2M2RP set up for overhead or underground service entrance?
Overhead. It ships with an AW hub on top for the service drop conduit. For a lateral (underground) feed you'd want a socket configured without the top hub.
5) What size service conductors will the 2M2RP lugs take?
The line and load terminals accept #6 through 250 MCM, which covers the usual 2/0 to 4/0 aluminum range used on a 200 A single-family service. Bus is aluminum.
6) Is the 2M2RP EUSERC approved for utility jobs on the West Coast?
Yes, the 2M2RP is EUSERC approved and UL listed, which is what most western utilities require before they'll set a meter on the enclosure.
7) What is the short circuit interrupting rating on the 2M2RP?
10 kAIC. That's adequate for most residential and light commercial services, but if the utility transformer calculation puts available fault current above 10 kA at the service point, you need a higher AIC assembly.
8) How much wall space do I need for the 2M2RP, and how heavy is it to hang?
Plan on 32 inches high by 8 inches wide, with 4.625 inches of depth off the wall. It weighs 25 lb, so a single installer can set it, though the tall narrow footprint makes a second pair of hands easier on a ladder.
9) Does the 2M2RP include distribution breaker space for branch circuits?
No. It's a meter breaker combination with a single 200 A 2-pole main only, sized for one meter position. Branch circuits go in a separate downstream panelboard fed from the 200 A main.
10) Can I use the 2M2RP for a duplex or multi-tenant building with two meters?
Not as a single unit. The 2M2RP is a single meter position enclosure. Two dwelling units metered separately need a two-position meter pack or two individual sockets.
11) What is the exact part number to order this Eaton B-Line meter breaker?
Order it as B-Line 2M2RP: 200 A, single meter position, ring type, 3R overhead with AW hub, 200 A 2-pole main, 4 jaw, 120/240 V single-phase.
