Eaton B-Line series hanging system, KwikWire wire rope, Toggle termination, 1/16" wire max, 12" wire length
Manufacturer Resources
Product Specs
- Certifications:
- cULus Listed
- Product Diameter:
- .06 in
- Product Height:
- 12 in
- Product Weight:
- .288 lb
- Wire Diameter Max:
- .062 in
- Wire Length:
- 12 in
- Department:
- Electrical
- Product Type:
- Toggle termination
- Product Model:
- KwikWire wire rope
- Product Details:
- Toggle termination
B-LINE BKT-063-12 – Frequently Asked Questions
1) What does the toggle end on this KwikWire hanger attach to?
Toggle termination means the anchor end is a folding toggle, made to pass through a drilled hole in the structure above (hollow deck, panel, or similar) and swing open behind it to bear. It is not a threaded stud or a beam clamp, so you need access to drill a through-hole sized for the toggle. If your attachment point is solid concrete or a bar joist, a different KwikWire end fitting is the right choice.
2) Can I use a single 1/16 inch KwikWire hanger, or do I need several per fixture?

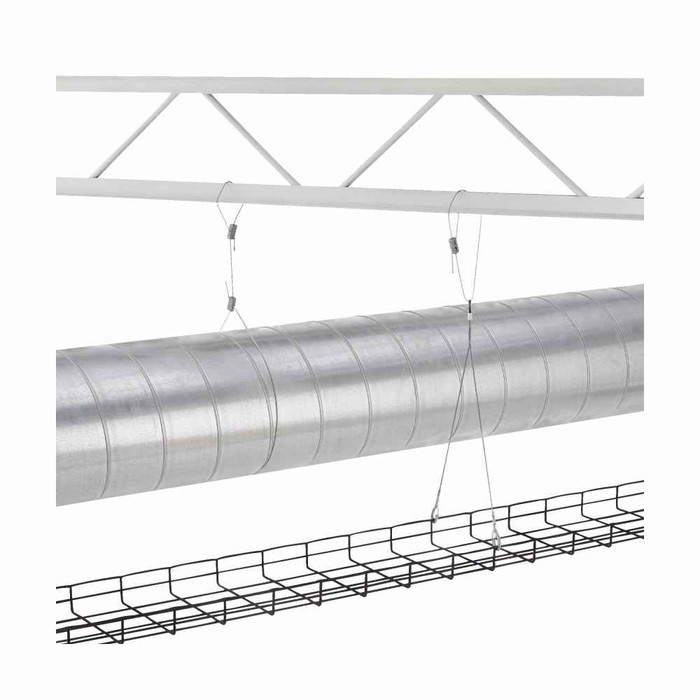

Wire rope hangers like the BKT-063-12 are used in sets. A linear fixture or a tray section is normally picked up at two points minimum, four for a square fixture, so the load is shared and the assembly stays level. Count your hangers per support point and order accordingly, since each BKT-063-12 is a single 12 inch assembly.
3) Do I need to cut the wire or add a gripper to install the B-Line KwikWire toggle hanger?
The BKT-063-12 comes as a made-up assembly: toggle on one end, 12 inches of 1/16 inch wire rope. Adjustment is made at the gripper, and any excess cable is trimmed with wire rope cutters on site. No crimping tool and no threading of rod.
4) How much does one B-Line BKT-063-12 KwikWire toggle hanger weigh for shipping or takeoff?
Each assembly weighs .288 lb. Handy when you are pricing out a few hundred hangers for a warehouse lighting package.
