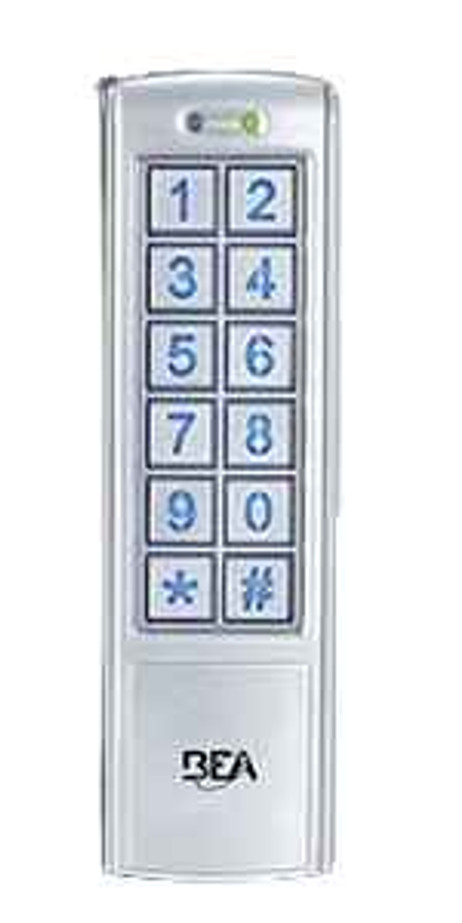

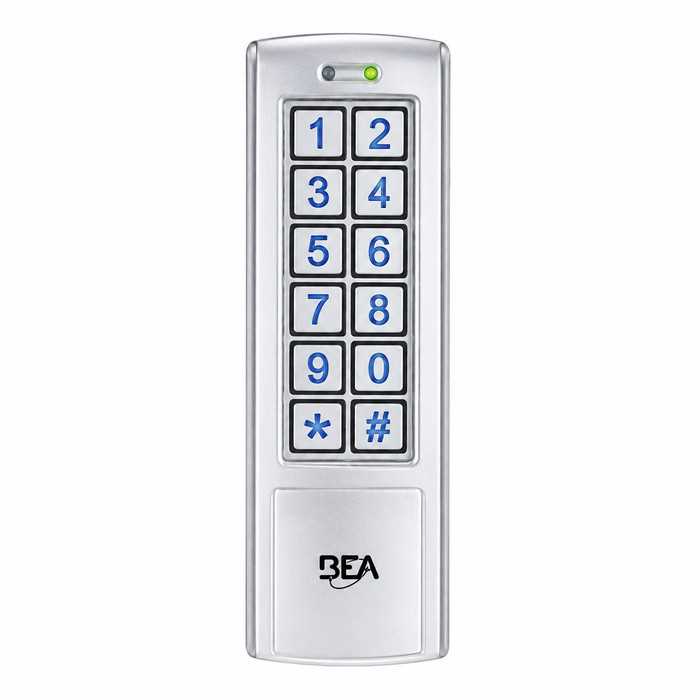

BEA 10KEYPADUSL Universal Slim-Line Keypad with IP66 Rating for Indoor/Outdoor Access Control

BEA 10KEYPADUSL Universal Slim-Line Keypad with IP66 Rating for Indoor/Outdoor Access Control

Professional Access Control Solution for Harsh Environments

The BEA 10KEYPADUSL Universal Slim-Line Keypad delivers robust access control functionality with support for up to 1,010 user codes and IP66 environmental rating for reliable operation in both indoor and outdoor applications. This versatile keypad features tamper alarm protection, dual relay outputs for two-zone applications, and back-lit numbers for enhanced visibility in low-light conditions.

Professional Features & Benefits

• High-Capacity User Management: Supports up to 1,010 user codes providing flexible access control for large facilities and multiple user groups.
• IP66 Environmental Protection: Weatherproof rating ensures reliable operation in harsh industrial and outdoor environments with protection against dust and water ingress.
• Tamper-Resistant Security: Built-in tamper alarm feature provides additional security monitoring and alerts for unauthorized access attempts.
• Dual-Zone Capability: Two-zone feature provides 2 relays and 2 exit button outputs enabling control of multiple access points from a single keypad.
• Enhanced Visibility: Back-lit numbers ensure clear visibility and ease of use in dimly lit areas and nighttime conditions.
• Universal Compatibility: Designed for flexible integration with various access control systems and applications.
• Slim-Line Design: Compact profile allows for versatile mounting options while maintaining professional appearance.

Technical Specifications

• Supply Voltage: 12 - 24 VAC / VDC (DO NOT EXCEED 30 VDC or 24 VAC)
• Standby Current: <= 30 mA
• Working Current: <= 160 mA
• Max User Codes: 1010 (zone 1: 1000 users; zone 2: 10 users)
• Relock Time: 0 s - 99 s
• Output: 2 relays (free of potential change-over contact)
• Max. Contact Current: 1 A (resistive)
• Max. Contact Voltage: 42 VAC / VDC
• Max. Switching Power: 30 W (DC) / 48 VA (AC)
• Cable Length: 3 ft
• Operating Temperature: -22 deg. F - 158 deg. F
• Operating Humidity: 0 - 95% (non-condensing)
• IP Rating: IP66, waterproof, dust proof
• Dimensions (10KEYPADU): 3.0 in (W) x 4.7 in (H) x 0.9 in (D)
• Dimensions (10KEYPADUSL): 1.7 in (W) x 5.9 in (H) x 0.95 in (D)
• Certifications: CE, RoHS
• Backlight: Blue keypad illumination

Installation & Operation

1. Verify electrical requirements match available power supply and confirm current capacity before proceeding with installation.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the keypad in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including user codes, relay outputs, and tamper alarm settings per application requirements.
6. Restore power and test all functions including normal operation, tamper alarm activation, dual relay outputs, and back-lighting functionality.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Industrial Facility Access Control
• Outdoor Perimeter Security Points
• Multi-Zone Access Management
• Harsh Environment Installations
• Emergency Exit Compliance Systems
• Warehouse and Distribution Centers

Tamper-Resistant Design

The integrated tamper alarm feature provides enhanced security monitoring by detecting unauthorized attempts to access or manipulate the keypad housing. This standard security feature helps maintain system integrity and provides alerts for potential security breaches.

Why Choose BEA Quality?

BEA access control products deliver professional-grade reliability with IP66-rated weatherproof construction designed for demanding commercial and industrial applications. The robust design with tamper protection and dual-zone capability ensures dependable performance where secure access control is essential.
