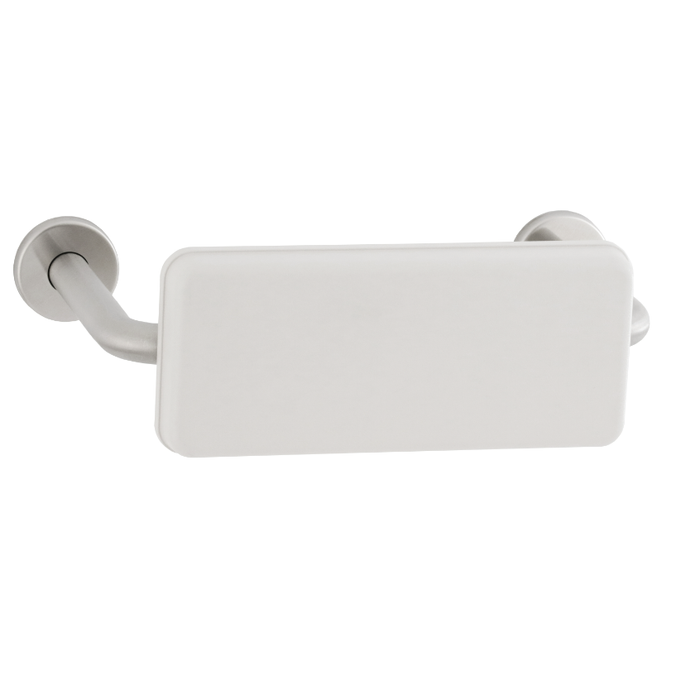

Bobrick 5891 Grab Bar With Backrest

Bobrick 5891 Grab Bar With Backrest

(No reviews yet) Write a Review

Model: 5891
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$161.50
$136.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bobrick 5891 Grab Bar With Backrest

Grab bar shall be Type-304 stainless steel with satin finish.
Grab bar shall have 18 gauge 1.2mm (18-gauge) wall thickness and 30mm (1-1/4") outside diameter.
Clearance between the grab bar and wall shall be 210mm (8-1/4").
Concealed mounting flanges shall be 3mm (11-gauge) stainless steel plate, 50 x 80mm (2" x 3‑1/8"), and equipped with six screw holes for attachment to wall.
Flange covers shall be 0.8mm (22-gauge) stainless steel, 85mm (3-1/4") diameter, and shall snap over mounting flanges to conceal mounting screws.
Ends of grab bar shall pass through concealed mounting flanges and be heliarc welded to form one structural unit.
Grab bar shall be equipped with a 255 x 100 x 13mm (10" x 4" x 1-1/2") white solid phenolic backrest.

Mounting Kits, Fasteners and Anchors are NOT included with Bobrick grab bars and must be ordered separately as an optional accessory:

MOUNTING KITS - Bobrick grab bar screw mounting kit available for different types of installations.
One mounting kit is required for each flange.
Bobrick Part No. 252-30 - Consists of (3) 1/4" x 2 1/2" type-304 stainless steel round-head sheet-metal screws.

FASTENERS: Bobrick WingIt™ grab bar fastening system secures grab bars installed without backing in wall. Fastener to be used with 2 1/2" or deeper hollow walls with finished wall surfaces 1/4" to 1 1/2" thick. The fastener will support 300 lbs load.
One fastener is required for each flange.
Bobrick Part No. 251-4 - Consists of (3) 10–32 x 5/16" round-head, Phillips 18/8 stainless steel screws and (1) WingIt grab bar fastener.

ANCHORS: Bobrick grab bar anchor used for mounting to toilet partition.
One anchor is required for each flange.
Bobrick Part No. 2583 - Consists of (1) anchor for 3/4" to 1" thick toilet partition panel and stainless steel machine screws.
Bobrick Part No. 2586 - Consists of (1) anchor for 1/2" thick toilet partition panel and stainless steel machine screws.

Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended.

Features

  • Grab bar shall be Type-304 stainless steel with satin finish.
  • Grab bar shall have 18-gauge 1.2mm (18-gauge) wall thickness and 30mm (1-1/4″) outside diameter.
  • Concealed mounting flanges shall be 3mm (11-gauge) stainless steel plate.

Product Specs

  • Finish : Satin-Finish Stainless Steel
  • Diameter : 1-1/4" (32mm)

Resources

Manufacturer Resources

Product Specs

Product Type:
Grab Bars
Product Group:
Washroom/Bath Accessories
Product Subgroup:
Grab Bars
Product Diameter:
11/4"
Product Material:
Satin Finish Stainless Steel
Department:
Plumbing

Bobrick 5891 – Frequently Asked Questions

1) Does the Bobrick 5891 grab bar come with mounting screws or anchors?
No. Mounting kits, fasteners and anchors ship separately on Bobrick grab bars, and you need one per flange. The screw kit is Bobrick 252-30, which holds three 1/4 inch x 2-1/2 inch Type-304 stainless round-head sheet-metal screws. For hollow walls with no backing, the WingIt fastener kit is 251-4, with three 10-32 x 5/16 inch Phillips round-head 18/8 stainless screws and one WingIt fastener. For mounting into a toilet partition panel, use anchor 2583 for 3/4 to 1 inch panels or 2586 for 1/2 inch panels. Budget two of whichever you pick, since the bar has two flanges.
2) Can the 5891 grab bar with backrest be installed on a drywall wall with no blocking behind it?
Yes, using the Bobrick WingIt fastening system (part 251-4), which is made for grab bars installed without in-wall backing. The fastener works in hollow walls 2-1/2 inches deep or more with a finished wall surface 1/4 to 1-1/2 inches thick, and supports a 300 lb load. One fastener per flange, so two for this bar. If you do have solid backing or studs, the 252-30 screw kit is the straightforward route.
3) How far does the Bobrick 5891 stand off the wall?
Clearance between the bar and the wall is 8-1/4 inches (210mm). That is considerably more than a standard grab bar because the assembly carries a backrest, so the bar sits out where a seated user's back can clear it. Check your stall or fixture layout for that 8-1/4 inch projection before committing.
4) Will the 5891 grab bar mount to a toilet partition panel instead of a wall?
Yes, with the Bobrick partition anchors. Use 2583 for a panel 3/4 to 1 inch thick, or 2586 for a 1/2 inch panel. Each anchor comes with stainless steel machine screws, and one anchor is needed for each flange. Bear in mind Bobrick's own caution: a grab bar is only as strong as the panel and anchor it is fixed to, so the partition has to be able to carry the load.
5) What is the backrest on the Bobrick 5891 made of and how big is it?
It is a white solid phenolic backrest measuring 10 x 4 x 1-1/2 inches (255 x 100 x 13mm). Solid phenolic holds up to wet, high-traffic public washrooms and cleans without absorbing moisture, which is why it is used instead of a padded or plastic pad.
6) What gauge and material is the Bobrick 5891 grab bar tube?
Type-304 stainless steel with a satin finish, 1-1/4 inch (30mm) outside diameter and 18-gauge (1.2mm) wall thickness. The 1-1/4 inch tube diameter is the size most facilities standardize on for washroom grab bars, so it will visually match other 1-1/4 inch bars already on your openings. Satin 304 is the usual spec for commercial restrooms because it resists corrosion and hides wear patterns.
7) Are the mounting screws visible after the 5891 grab bar is installed?
No. The mounting flanges are concealed: 11-gauge (3mm) stainless plate, 2 x 3-1/8 inches (50 x 80mm), with six screw holes each for wall attachment. Snap-on flange covers of 22-gauge (0.8mm) stainless, 3-1/4 inches (85mm) in diameter, cover the screws once the bar is fixed. The bar ends pass through the flanges and are heliarc welded, so the bar and flanges are one structural unit rather than a bolted joint.
8) How many fasteners do I need to order for one Bobrick 5891?
One mounting kit, fastener, or anchor per flange. The 5891 is a two-flange bar, so order two of whichever mounting method suits the wall: two 252-30 screw kits into solid backing, two 251-4 WingIt fasteners into hollow wall, or two partition anchors (2583 or 2586) on a stall panel.
