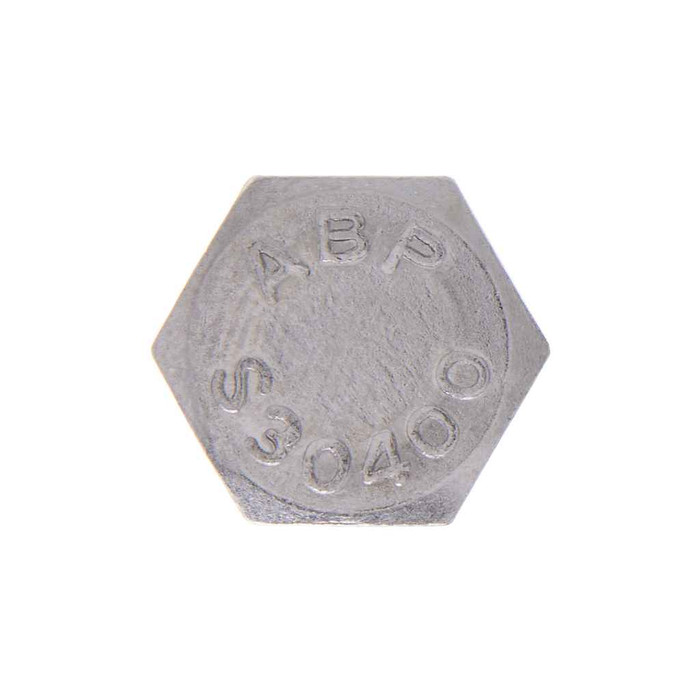

Bolts 3/8-16 x 1-3/4 HXBT SS (Jar 100)
Features
- Used in products that require general atmospheric corrosion resistance, such as chemical and food-processing equipment. Some chemical environments may require special corrosion resistant materials and precautions.
- 18-8 and 316 stainless steel cap screws are both made from austenitic alloy
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Country Of Origin:
- United States
- Division:
- Electrical H1
- Fastener Head Height:
- 15/64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.551 - 0.562 in.
- Fastener Height:
- 0.226 - 0.243
- Fastener Length:
- 1/3/04
- Fastener Width:
- 0.628 - 0.650
- Hardness:
- Rockwell B95-C32
- Language Code:
- EN
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.3690 - 0.3750 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 100000 - 150000 psi minimum
- Thread Per Inch:
- 16
- Yield Strength:
- 65000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- SBHC and JSBHC
- Product Details:
- Hexagonal Bolt
- Product Material:
- 18-8 Stainless Steel
Metallics JSBH27D – Frequently Asked Questions
1) Will 18-8 stainless hex bolts hold up outdoors or in a food plant washdown area?
18-8 stainless is used where general atmospheric corrosion resistance is needed, including chemical and food-processing equipment. Both 18-8 and 316 are austenitic alloys. Harsher chemical exposure can call for a more corrosion resistant material and added precautions, so for aggressive chlorides or salt spray step up to 316 rather than 18-8.
2) Do these Metallics stainless bolts qualify for a Buy American or ARRA funded job?
No. The JSBH27D is listed as not Buy American compliant and not ARRA compliant, even though country of origin is the United States. On a federally funded project with domestic sourcing requirements, you will need a fastener that carries the compliance certification.
3) How many bolts come in the JSBH27D, and can I buy fewer?
The JSBH27D ships as a jar of 100 bolts, and 100 count is the order minimum, so it is bought by the full jar rather than loose by the piece. Metallics does make other sizes and quantities in this stainless hex bolt line available by request.
4) Can I mix these stainless bolts with galvanized or plain steel nuts and washers?
It works mechanically, but pairing 18-8 stainless with zinc or galvanized steel in a wet location sets up galvanic action that eats the coating off the steel part. On anything exposed to weather or washdown, keep the nut and washers stainless too. Indoors and dry, the mix is far less of an issue.
