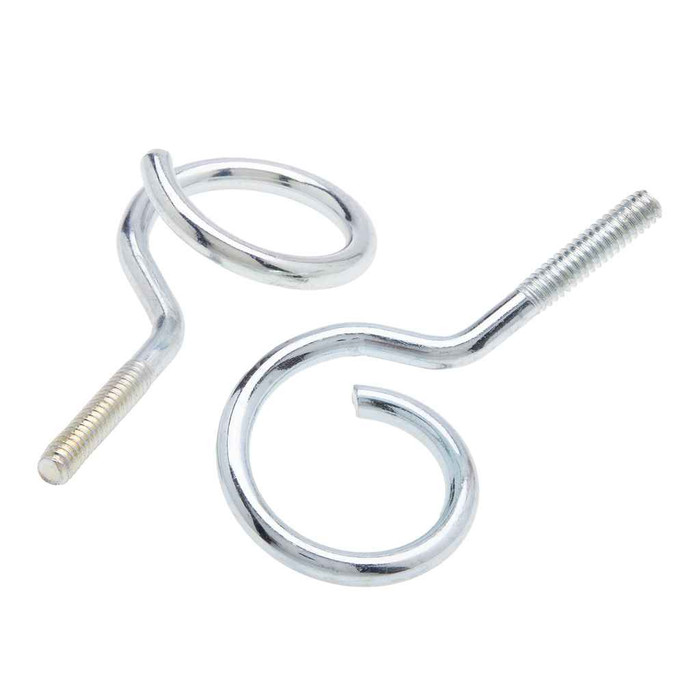

Bridle Ring 1-1/2" Ms St-zn (Bag 10)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Bag
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
Metallics MBR150 – Frequently Asked Questions
1) What size cable bundle does the Metallics MBR150 bridle ring hold?
The MBR150 is a 1-1/2 inch bridle ring, so the ring opening carries low voltage cable bundles up to that diameter. Size the ring to the finished bundle, not the single cable, and leave room if more runs get pulled through the same path later.
2) Does the MBR150 bridle ring have a machine screw thread or a wood screw point?
The MBR150 is the machine screw version. The threaded stud mates with a tapped hole, a nut, or a beam clamp or threaded insert, so it is the one to order when you are attaching to metal framing or existing hardware rather than driving straight into wood.
3) What is the Metallics MBR150 bridle ring made of, and can I use it in a damp area?
It is steel with a zinc finish. Zinc plated steel is intended for dry interior work such as ceiling spaces, equipment rooms and finished walls. For wet, outdoor or corrosive environments, specify a stainless or hot dip galvanized support instead.
4) Can I use a bridle ring to support electrical branch circuit wiring?
Bridle rings like the 1-1/2 inch MBR150 are cable pathway supports for low voltage work, data, communications, fire alarm and control cable. They hold a bundle off the ceiling and keep it out of the plenum clutter. They are not a substitute for the raceway, clamps or straps that power wiring methods require, so run branch circuits in their listed support system.
5) Does the Metallics MBR150 come with the nut or anchor to mount it?
What you get is ten 1-1/2 inch zinc plated steel bridle rings with the machine screw stud. The mating hardware, nuts, threaded rod couplings, beam clamps or inserts, is ordered separately to suit the structure you are fastening to.
