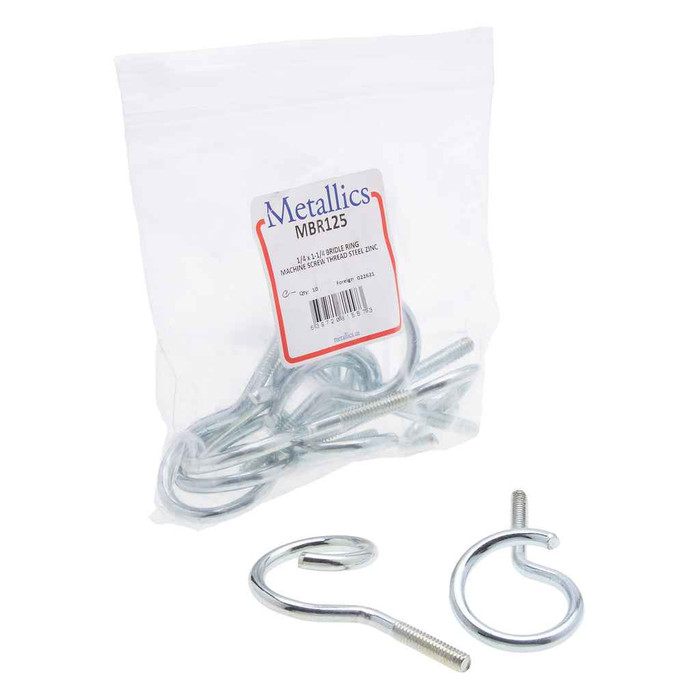

Bridle Ring 1-1/4" Ms St-zn (Bag 10)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Bag
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
Metallics MBR125 – Frequently Asked Questions
1) What size cable bundle does the Metallics MBR125 bridle ring hold?
The MBR125 is a 1-1/4 inch bridle ring, so the ring opening carries low voltage cable, data, or fire alarm bundles up to that 1-1/4 inch diameter. Run bundles loose inside the ring rather than packing it tight, so you can add drops later without pulling the ring.
2) How does a bridle ring attach to wood joists or metal studs?
The MBR125 carries a threaded machine screw style shank, so it lands in a tapped hole, a threaded insert, or a nut rather than biting into wood on its own. For wood joists or drywall, pair it with the matching anchor, insert, or a drive screw adapter; on metal studs or strut, thread it into an existing tapped hole or use a nut and washer on the back side. The anchor is not supplied with the rings.
3) What is the Metallics MBR125 bridle ring made of, and can I use it in a damp area?
Steel with a zinc finish. Zinc plated steel is fine for dry indoor work such as ceiling plenums, telecom closets, and open joist spaces. For wet, corrosive, or exterior locations, specify a stainless or hot dip galvanized support instead.
4) Can I use a bridle ring instead of conduit for low voltage cable runs?
A bridle ring like the MBR125 is a cable support, not a raceway. It is the normal choice for supporting communications, data, and fire alarm cable in accessible ceilings and closets where a raceway is not required. If the cable needs physical protection or the circuit requires an enclosed raceway, use conduit and fittings instead, with the bridle ring reserved for open supported runs.
How fast can I get the Metallics MBR125 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Metallics MBR125 come with a warranty?
Absolutely. The Metallics MBR125 is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Metallics MBR125?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
