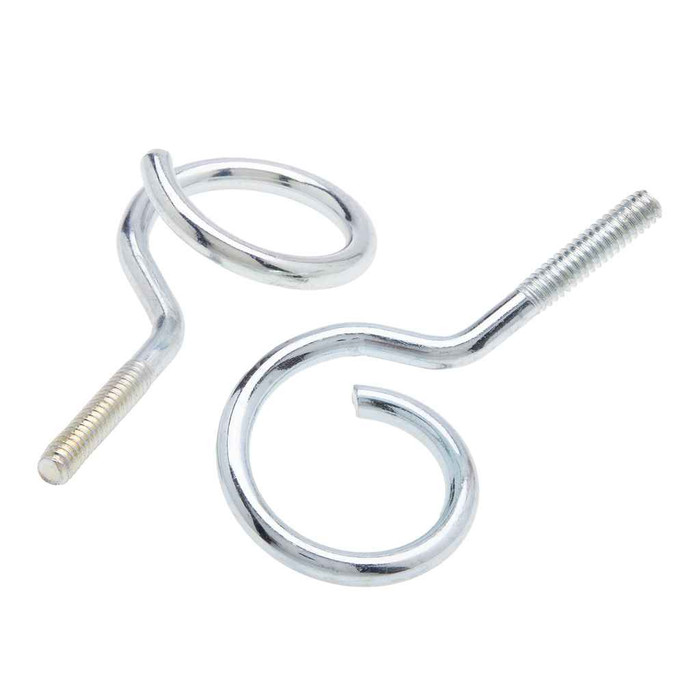

Bridle Ring 1-1/4" Ms St-zn (Bag 25)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Bag
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
Metallics MBR125B – Frequently Asked Questions
1) What size cable bundle does the Metallics MBR125B bridle ring hold?
The MBR125B is a 1-1/4 inch bridle ring, so the ring opening carries low-voltage cable, data, or control bundles up to that 1-1/4 inch diameter. Size the ring to the finished bundle, not the individual cable, and leave room if you expect to add runs later.
2) Can a bridle ring be used to support electrical power conduit or NM cable?
No. Bridle rings like the 1-1/4 inch MBR125B are cable support hardware for low-voltage work, communications, data, alarm, and control cabling. They are not a listed support for raceway or for branch-circuit wiring methods, which need straps, hangers, or clamps rated for that use.
3) Is the Metallics MBR125B bridle ring sold individually or in a pack?
It ships as a bag of 25 rings, so one order covers a full pull of 25 support points. Plan quantities in multiples of 25.
4) What material and finish is the MBR125B bridle ring?
Mild steel with a zinc finish. That is a general-purpose indoor finish, suitable for dry interior runs above ceilings, in telecom closets, and along joists. For wet, corrosive, or exterior locations, specify a stainless or hot-dip galvanized support instead.
5) Do I need anything else to install Metallics bridle rings?
The ring itself is the only item in the bag of 25. The threaded end has to land in something, so order the anchor to match your substrate separately: wood screws or lag threads into joists and studs, a drive or expansion anchor in concrete, or a toggle in hollow block and drywall. Confirm the thread on the ring matches whatever anchor or insert you pair with it.
How fast can I get the Metallics MBR125B delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Metallics MBR125B come with a warranty?
Absolutely. The Metallics MBR125B is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
