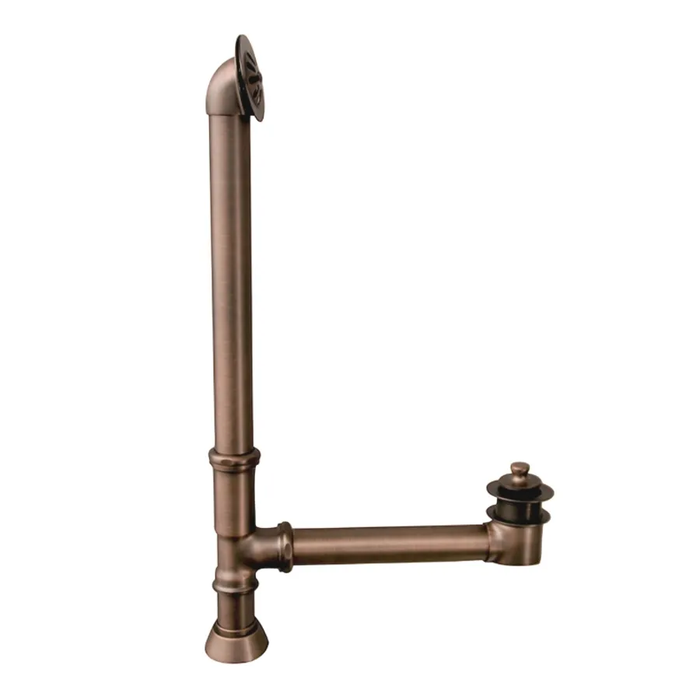

1-1/2 in. Tub Waste and Overflow
Our 1 1/2 in. tub waste and overflow perfectly coordinates with our supply lines and tub faucets. Includes twist & lift stopper and deep escutcheon.
FEATURES
- Constructed of solid brass in a oil rubbed bronze finish
- Drain pipe length adjusts from 12 in. to 14 in.
- Overflow height adjusts from 15 in. to 18 in.
- Includes deep escutcheon with height of 1-1/4 in.
- Compatible with most tubs
SPECIFICATIONS
Product Type: Drain
Product Width: 3 in.
Drain Pipe Depth: 12 in. to 14 in.
Country Of Origin: China
Includes Mounting Hardware: Yes
Material: Solid Brass
Overflow Height: 15 to 18
Product Height: 18 in.
Product Length/Depth: 14 in.
Product Weight: 4 lbs.
ProductSubType:Tub Drain
Manufacturer Resources
Product Specs
- Includes Mounting Hardware:
- Yes
- Product Height:
- 18"
- Product Length/Depth:
- 14"
- Product Weight:
- 4 lbs.
- Product Width:
- 3"
- Warranty:
- 1 Year Limited Residential
- Product Material:
- Solid Brass
- Product Category:
- Drain
- Department:
- Plumbing
- Product Group:
- Rough-In and Supports
- Product Subgroup:
- Pipe and Tubing
- Product Type:
- Bath Waste and Overflow
Cahaba CCL1001ORB – Frequently Asked Questions
1) Will the Cahaba CCL1001 tub waste and overflow fit my tub's rough-in depth?
The CCL1001 drain pipe length adjusts from 12 to 14 inches, and the overflow height adjusts from 15 to 18 inches, so it covers the common range of standard tub rough-ins without cutting a fixed-length kit. If your overflow centerline sits higher than 18 inches above the drain, or the drain run is shorter than 12 inches, this one won't adjust to it.
2) Is the Cahaba CCL1001 a 1-1/2 inch waste and overflow, and does it tie into standard tub drain plumbing?
It's a 1-1/2 inch tub waste and overflow, which is the standard size for residential bathtub drain piping, so it mates to 1-1/2 inch tub drain plumbing.
3) Does the Cahaba CCL1001 come with a stopper, or do I need to buy one separately?
A twist and lift stopper is included, along with a deep escutcheon measuring 1-1/4 inches high. Mounting hardware is included as well, so the kit is complete for the drain and overflow side of the install.
4) Is the Cahaba CCL1001 tub drain plastic or metal?
Solid brass, and it weighs 4 lbs as a kit. For rental and multi-family turns where stoppers and escutcheons get abused, brass holds threads better than a plastic-bodied waste and overflow.
5) Will the Cahaba CCL1001 work on an alcove tub, or only on a freestanding one?
It's described as compatible with most tubs, and the adjustable 12 to 14 inch drain run plus 15 to 18 inch overflow riser is what makes that work across alcove, drop-in and most other standard tub bodies. What decides it is the distance from your tub's drain opening to the overflow opening, not the tub style.
6) Why would I pick the deep escutcheon version of a tub waste and overflow?
The CCL1001 ships with a deep escutcheon 1-1/4 inches high, which gives you cover depth at the overflow opening on thicker tub walls and on tubs where the overflow hole is slightly oversized or rough. A shallow escutcheon can leave the hole edge visible on those installs.
7) Does the Cahaba CCL1001 coordinate with other Cahaba tub fittings?
Yes. The CCL1001 waste and overflow is built to coordinate with Cahaba supply lines and tub faucets, so you can match the finish across the whole tub fill and drain package rather than mixing brands.
