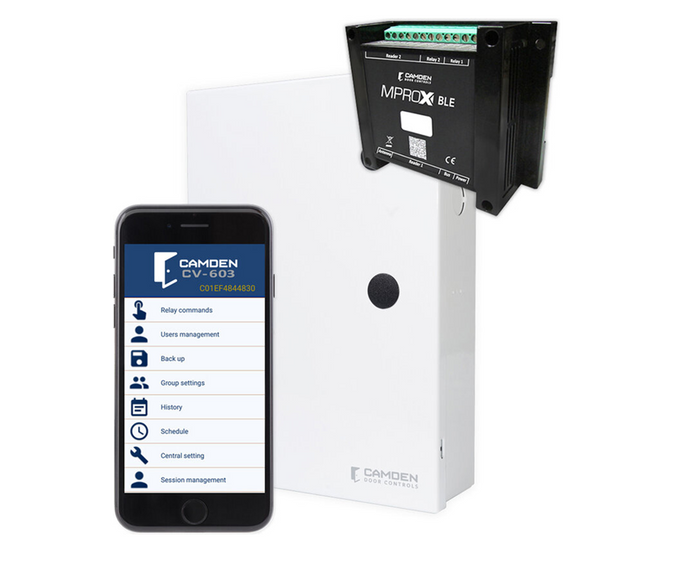

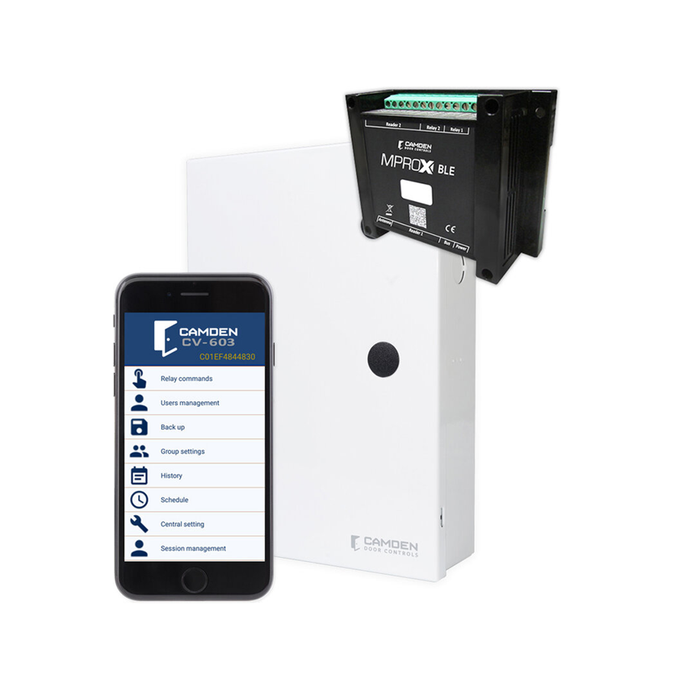

Camden CV-603 Series (MProx-BLE) 2 Door Bluetooth Access Control System

Camden CV-603 Series (MProx-BLE) 2 Door Bluetooth Access Control System

(No reviews yet) Write a Review

Model: CV-603PS-K1

In Stock (leaves warehouse same day if ordered before 3pm ET)

$840.00
$543.88
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Camden CV-603 Series (MProx-BLE) 2 Door Bluetooth Access Control System

CV-603 Series is an app-based wireless Bluetooth® managed access control system designed to provide maximum flexibility in small door and gate applications and comes ready to support each system user with the card security FOB, or smartphone credential they want. The intuitive configuration app is available for Apple® and Android® Protocol, with easy-to-use system set-up, user administration, downloadable audit trail, and data back-up. Now featuring optional Virtual Remote License Keys to support smartphone credentials.

The controller supports low and clone resistant high-frequency credentials, and various card reader Wiegand protocols; 26, 30, 34, and 37-bit. Card readers encryptions that use Wiegand protocols such as HID Prox(R), HID iClass(R), MiFare(R), and DESFire(R) can be wired to the controller. The CV-603 controller provides control for two doors including inputs for readers, door position switch and REX device and (2) outputs for electrified locking or alarm signal devices. A built-in 433Mhz. receiver supports two button wireless key fobs, providing an ideal solution for parking garage and gate control applications.

FEATURES

  • No PC required. Programmed via smartphone Bluetooth(R) App
  • 2,000 User Capacity
  • Built-in Bluetooth® mobile credentials option
  • Wiegand Reader protocol – 26, 30, 34 and 37 bits
  • Common Alarm Relay – Trigger remote devices
  • Anti-pass back – Higher level of security
  • Sensor Input – For door position switch or vehicle loop detector
  • Form C relays – Fail-safe or Fail-secure electric locks
  • Built-in 433 Mhz. key fob receiver – used with CX-TXM-2 two button transmitters
  • Encrypted rolling code and protected AES128 transmission of transmitters
  • Operator Security Levels – 5, configurable
  • 3 year

SPECIFICATIONS

Voltage: 12 VDC
Current Draw: < 100 mA
Contact Rating: 1A @ 12V AC/DC
Users: 2000
Reader Inputs: 2
Reader Outputs: 2
Reader Input Types: Wiegand 26, 30, 34, 37 Bit
Receiver Frequency: 433 Mhz.
DIN Rail Mount: Yes
Temperature Range: -4°F to 131°F (-20°C to +55°C)
Relay Output Types: Timed 1 - 180 seconds, Momentary, bi-stable / latch
CV-603 Dimensions: 4-1/2" H x 3-1/2" W x 1-3/4" D (115mm x 90mm x 44mm)
CX-TXM-2 Dimensions: 2-5/8" H x 1-1/4" W x 1/2" D (66mm x 30mm x 11mm)

Manufacturer Resources

Product Specs

Product Subgroup:
Access Management
Subcategory:
Wireless
Product Group:
Access Control
Product Type:
Bluetooth
Series:
CV-603 Series
Users:
2000
Warranty:
3 Year Warranty
Product Voltage:
30VDC
Product Dimension:
14"L x 12"W x 4"H
Product Category:
Access Control
Department:
Door Hardware

Camden Door Controls CV-603PS-K1 – Frequently Asked Questions

1) Does the Camden CV-603 Bluetooth access control panel need a PC or software to program?
No PC, no server, no software license to install. The CV-603 controller is set up entirely from a smartphone over Bluetooth using Camden's configuration app, which runs on Apple and Android. System setup, adding and removing users, downloadable audit trail and data backup all happen in the app, and there are 5 configurable operator security levels so a property manager can give a site contact limited rights without handing over full administration.
2) How many doors and how many users will the Camden CV-603 handle?
Two doors from one controller, with 2,000 users. It takes 2 reader inputs plus a door position switch and REX input per opening, and gives you 2 Form C relay outputs for the locks. If you have more than two openings you need additional controllers, not an expansion board.
3) Can I use my existing HID prox or MIFARE readers with the CV-603 controller?
Yes, if they output Wiegand. The CV-603 accepts Wiegand 26, 30, 34 and 37 bit, so readers using HID Prox, HID iClass, MIFARE and DESFire encryption can be wired straight to it. It handles both low frequency and clone resistant high frequency credentials. What it will not take is a reader that only speaks OSDP or a proprietary serial protocol.
4) Will the CV-603 work with fail-safe maglocks as well as fail-secure electric strikes?
Both. The two outputs are Form C (changeover) relays, so you can wire either a fail-safe device like a magnetic lock or a fail-secure electric strike off the same board. Relay contacts are rated 1A at 12V AC/DC, so anything drawing more than that needs to be switched through a separate relay or power supply output rather than directly off the controller.
5) Is the Camden CV-603 suitable for a parking gate or vehicle entrance?
That is one of the applications it is built around. The controller has a built-in 433 MHz receiver for CX-TXM-2 two button wireless key fobs, with encrypted rolling code and AES128 protected transmission, so drivers can operate the gate without lowering a window. The sensor input accepts a vehicle loop detector as well as a door position switch, and anti-passback can be turned on to stop one credential being used twice in a row.
6) Can tenants use their phones as credentials on the CV-603, or do I have to issue cards?
Either, and you can mix them on the same system. The CV-603 supports Bluetooth mobile credentials built in, with optional Virtual Remote License Keys for smartphone credentials, alongside conventional cards and security fobs read through the Wiegand reader inputs. That matters on multi-family and small commercial sites where some residents want a phone and others want a fob.
7) Where can the CV-603 controller be mounted, and will it fit in a standard enclosure?
The board is DIN rail mountable and the controller itself measures 4-1/2 inches by 3-1/2 inches by 1-3/4 inches (115 x 90 x 44 mm), so it drops into most access control cabinets or a DIN rail alongside a power supply. Operating range is -4F to 131F (-20C to +55C), which covers an unheated garage or a gate house but not a fully exposed outdoor location without a weatherproof enclosure.
8) How long can I hold the door unlocked on a Camden CV-603, and can I latch it open?
Each relay can be set as timed from 1 to 180 seconds, momentary, or bi-stable latch. The latch mode is what you use to hold a lobby or gate open during business hours; the timed mode covers a normal unlock on a valid read. There is also a common alarm relay that can trigger a remote device such as a sounder or a signal to a monitoring panel.
9) How much current does the CV-603 controller draw from the power supply?
Under 100 mA for the controller itself. Size your supply for that plus the readers and, more importantly, the locks: strikes and maglocks are almost always the dominant load, and they should be fused or switched separately since the onboard contacts are only rated 1A.
10) What is the CX-TXM-2 transmitter used with the Camden CV-603 and how big is it?
The CX-TXM-2 is the two button 433 MHz wireless key fob the CV-603's built-in receiver is designed to work with, typically used for gate and garage control. It measures 2-5/8 by 1-1/4 by 1/2 inches (66 x 30 x 11 mm), so it rides on a keyring, and its transmission uses encrypted rolling code with AES128 protection.
