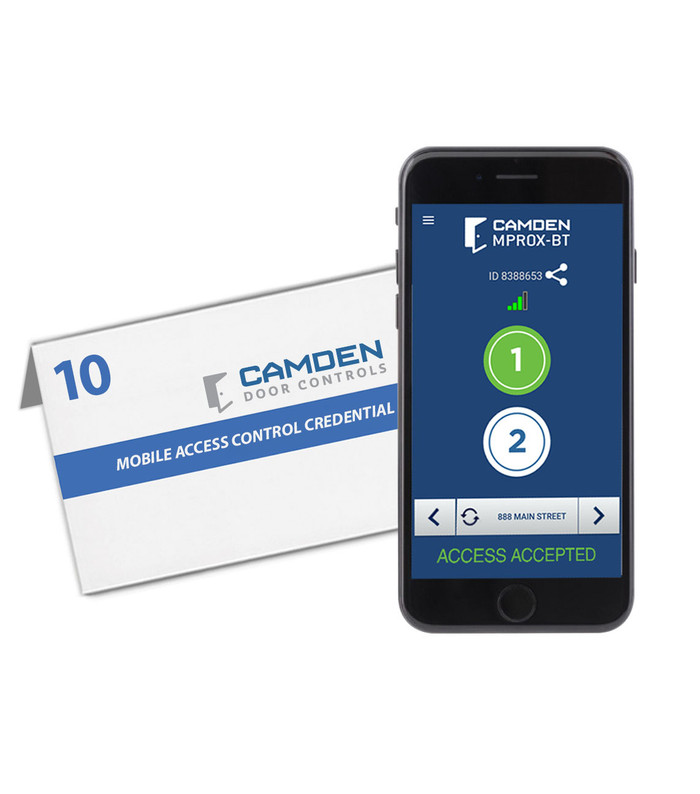

Camden CV-603VR10 Mprox-BLE Virtual Remote License Key 10 Pack

Camden CV-603VR10 Mprox-BLE Virtual Remote License Key 10 Pack

(No reviews yet) Write a Review

Model: CV-603VR10

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,510.79
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Camden CV-603 Series (MProx-BLE) 2 Door Bluetooth Access Control System

CV-603 Series is an app-based wireless Bluetooth® managed access control system designed to provide maximum flexibility in small door and gate applications and comes ready to support each system user with the card security FOB, or smartphone credential they want. The intuitive configuration app is available for Apple® and Android® Protocol, with easy-to-use system set-up, user administration, downloadable audit trail, and data back-up. Now featuring optional Virtual Remote License Keys to support smartphone credentials.

The controller supports low and clone resistant high-frequency credentials, and various card reader Wiegand protocols; 26, 30, 34, and 37-bit. Card readers encryptions that use Wiegand protocols such as HID Prox(R), HID iClass(R), MiFare(R), and DESFire(R) can be wired to the controller. The CV-603 controller provides control for two doors including inputs for readers, door position switch and REX device and (2) outputs for electrified locking or alarm signal devices. A built-in 433Mhz. receiver supports two button wireless key fobs, providing an ideal solution for parking garage and gate control applications.

FEATURES

  • No PC required. Programmed via smartphone Bluetooth(R) App
  • 2,000 User Capacity
  • Built-in Bluetooth® mobile credentials option
  • Wiegand Reader protocol – 26, 30, 34 and 37 bits
  • Common Alarm Relay – Trigger remote devices
  • Anti-pass back – Higher level of security
  • Sensor Input – For door position switch or vehicle loop detector
  • Form C relays – Fail-safe or Fail-secure electric locks
  • Built-in 433 Mhz. key fob receiver – used with CX-TXM-2 two button transmitters
  • Encrypted rolling code and protected AES128 transmission of transmitters
  • Operator Security Levels – 5, configurable
  • 3 year

SPECIFICATIONS

Voltage: 12 VDC
Current Draw: < 100 mA
Contact Rating: 1A @ 12V AC/DC
Users: 2000
Reader Inputs: 2
Reader Outputs: 2
Reader Input Types: Wiegand 26, 30, 34, 37 Bit
Receiver Frequency: 433 Mhz.
DIN Rail Mount: Yes
Temperature Range: -4°F to 131°F (-20°C to +55°C)
Relay Output Types: Timed 1 - 180 seconds, Momentary, bi-stable / latch
CV-603 Dimensions: 4-1/2" H x 3-1/2" W x 1-3/4" D (115mm x 90mm x 44mm)
CX-TXM-2 Dimensions: 2-5/8" H x 1-1/4" W x 1/2" D (66mm x 30mm x 11mm)

Manufacturer Resources

Product Specs

Product Subgroup:
Access Management
Subcategory:
Parts and Accessories
Product Group:
Access Control
Product Type:
License Key
Series:
CV-603 Series
Warranty:
3 Year Warranty
Product Category:
Access Control
Department:
Door Hardware
Package Quantity:
10

Camden Door Controls CV-603VR10 – Frequently Asked Questions

1) What does the Camden CV-603VR10 license key actually do?
The CV-603VR10 is a pack of Virtual Remote License Keys for the Camden CV-603 (MProx-BLE) Bluetooth access control system. It enables smartphone credentials on that controller, so a user unlocks with their phone instead of carrying a card or fob. It is not hardware for the door, it is the licensing that turns on the built-in Bluetooth mobile credential option in the CV-603 controller.
2) How many phone users does the CV-603VR10 cover?
Ten. The CV-603VR10 ships as a 10 pack of Virtual Remote License Keys, so it licenses ten smartphone credentials. If you are outfitting a building where only part of the population wants phone access, count the phone users, not the total users, when deciding how many packs to buy.
3) Do I need these license keys if my users are already carrying cards or fobs?
No. The CV-603 controller reads low and high frequency credentials through wired Wiegand readers (26, 30, 34 and 37 bit), and it has a built-in 433 MHz receiver for CX-TXM-2 two button key fobs. Those work without any license. The Virtual Remote License Keys are only needed for the smartphone credential option, so buy them per phone user and skip them for card and fob holders.
4) Will the Camden virtual remote licenses work on any access control panel, or only the CV-603?
Only the Camden CV-603 Series (MProx-BLE) controller. These are Virtual Remote License Keys tied to that system's built-in Bluetooth mobile credential feature. A panel from another series or another manufacturer will not accept them.
5) What else do I have to order besides the license keys to get a CV-603 door running?
The licenses alone do not open a door. You need the CV-603 controller itself, a 12 VDC supply (the controller draws under 100 mA), and the locking hardware wired to its Form C relays, which will drive either fail-safe or fail-secure electric locks with a 1A at 12V AC/DC contact rating. Add Wiegand readers if any users will badge, a door position switch or loop detector on the sensor input, and a REX device. The controller is DIN rail mountable and measures 4-1/2 in. H x 3-1/2 in. W x 1-3/4 in. D.
6) Can I mix phone credentials and cards on the same CV-603 doors?
Yes. The CV-603 controller handles two doors with two reader inputs, and it is built to support whichever credential each user wants, card, security fob, or smartphone. You license only the phone users with Virtual Remote keys and leave everyone else on cards read through the wired Wiegand readers. All users sit in the same 2,000 user database, administered from the Bluetooth configuration app.
7) Do I need a PC or a server to hand out the smartphone credentials?
No PC. The CV-603 system is programmed entirely from a smartphone Bluetooth app available for Apple and Android, which covers system setup, user administration, downloadable audit trail, and data backup. A property manager can add or remove a phone user on site without a laptop or a software license on a workstation.
8) Is this a good fit for gate and parking garage access?
It works well there. The CV-603 controller has a built-in 433 MHz receiver for CX-TXM-2 two button transmitters with encrypted rolling code and AES128 transmission, and a sensor input that takes a vehicle loop detector. Adding the Virtual Remote License Keys lets tenants open the gate from a phone instead of a visor remote, which saves reissuing transmitters on turnover.
9) Can the CV-603 controller go in an unheated garage or an exterior enclosure?
Its rated operating range is -4 F to 131 F (-20 C to +55 C), so an unheated parking structure or a weather-protected exterior enclosure is within spec in most climates. It still needs to be in an enclosure, and it mounts on DIN rail inside one.
10) How long can I hold the door unlocked, and can I latch it open for business hours?
The CV-603 relay outputs run timed from 1 to 180 seconds, momentary, or bi-stable latch. The latching mode is what you use to hold an entrance unlocked through business hours and re-secure it after. There is also a common alarm relay for triggering remote devices, and anti-passback if you need to stop credential sharing at a garage or a controlled entry.
