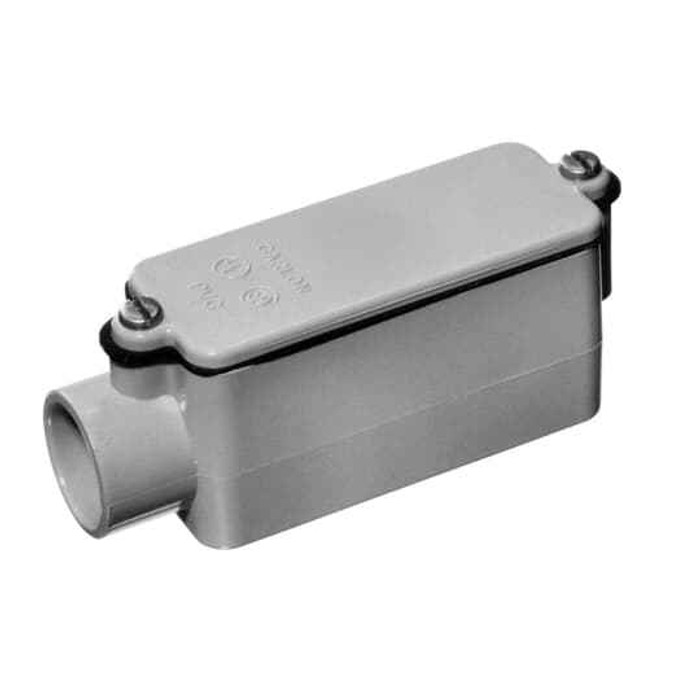

Carlon Type E PVC Conduit Body - Gray Non-Metallic with Textured Lid

Carlon Type E PVC Conduit Body - Gray Non-Metallic with Textured Lid

Professional Grade Non-Metallic Conduit Body Solution

The Carlon Type E PVC Conduit Body delivers reliable electrical conduit routing and access in a durable gray non-metallic construction. Engineered for compatibility with Schedule 40 and 80 conduit systems, this UL listed conduit body features textured lids for enhanced grip and professional installation. The PVC material construction provides excellent corrosion resistance and long-term durability for electrical applications.

Professional Features & Benefits

• Schedule 40 & 80 Compatibility: Works seamlessly with standard conduit systems for versatile installation options and reliable connections.
• UL Listed Construction: Meets UL e11461 standards ensuring safety compliance and professional-grade performance in electrical applications.
• Textured Lid Design: Enhanced grip surface provides secure handling and professional appearance while maintaining easy access for maintenance.
• PVC Material Construction: Non-metallic design offers superior corrosion resistance and durability in various environmental conditions.
• Gray Color Finish: Professional appearance integrates well with standard electrical installations and conduit systems.
• Compact Dimensions: 6-11/32 inch length and 2-1/32 inch width provide efficient space utilization while maintaining full functionality.

Technical Specifications

• Application: For use with Schedule 40 and 80 Conduit
• Brand Label: Carlon
• Brand Name: Carlon
• Department: Electrical
• Effective Date: 20080116
• Idea Granular Category Code Igcc : 5563 >> Electrical conduit fitting body
• Igcc: 5563 Electrical conduit fitting body
• Outer Dimensions Inches : 11.4x7.8x10.8
• Outer Quantity: 20
• Product Color: Gray
• Product Length: 6-11/32 in
• Product Material: PVC
• Product Type: Type E Conduit Body
• Product Width: 2-1/32 in
• Special Features: Textured lids
• Special Functions: Textured lids
• Standard: UL e11461
• Standards: UL e11461
• Unspsc: 39131708 Electrical conduit fitting body
• Weight Uom: 32 lbs. per 100

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Electrical Systems
• Commercial Building Installations
• Industrial Conduit Routing
• Maintenance and Repair Projects
• New Construction Electrical Work
• Retrofit and Upgrade Applications

Why Choose Carlon Quality?

Carlon delivers trusted electrical solutions with UL listed construction and proven durability. The PVC material construction and textured lid design demonstrate Carlon's commitment to professional-grade components that meet rigorous safety standards while providing reliable long-term performance in demanding electrical applications.
