CDVI Americas SOLARPB Prox Rea...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$228.00
$140.00

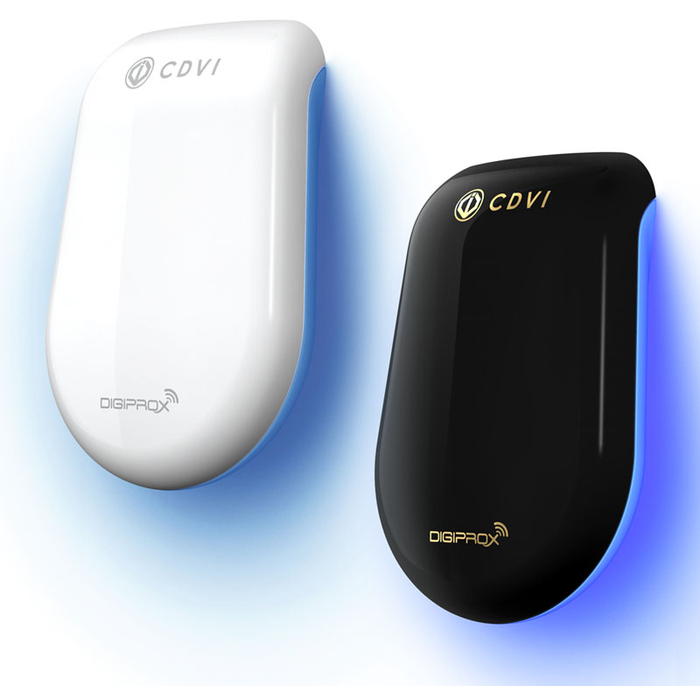

CDVI Americas SOLARPB Prox Reader/Wiegand/125khz/Black

CDVI Americas SOLARPB Prox Reader/Wiegand/125khz/Black

(No reviews yet) Write a Review

Model: SOLARPB

In Stock (leaves warehouse same day if ordered before 3pm ET)

$228.00
$140.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

CDVI Americas SOLARPB Prox Reader/Wiegand/125khz/Black

CDVI proximity card readers are recognized worldwide, having won several awards for their innovative design. CDVI has a full and varied range of proximity card readers to meet all of your needs. This includes mini, mullion, vandal-resistant and card reader/keypad combinations.

Features:

  • Reads CDVI and most popular 26-bitsWiegand card encoding.
  • High performance read range.
  • Innovative design.
  • Illuminated card reader (Blue, green and red).
  • Audible and visual feedback.
  • PCB sealed in epoxy.
  • Polycarbonate.
  • Easy to mount.

Specifications:

  • Casing Construction: Polycarbonate.
  • Card Reading Technology: 125 Khz.
  • Multi-card protocol: CDVI, HID and most popular 26-bit cards.
  • Indoor/Outdoor: Yes. (PCB sealed in epoxy).
  • Read Range: Up to 2.4" (6 cm).
  • Audible and Visual Feedback: Yes.
  • Input voltage: 12 Vdc.
  • Current Consumption: 100 mA.
  • Operating temperature: - 22°F to 158°F (- 30°C to 70°C).
  • Dimensions: 5.5"(140mm) x 1.65"(42mm) x 1.4"(23mm).
  • Certifications: RoHS, WEEE, IP53, CE FCC, R&TTE, ETL (UL294).

Finishes:

  • SOLARKPB - Black
  • SOLARKPW - White



Resources

CDVI Access Control Data Sheet

Manufacturer Resources

Product Specs

Subcategory:
Readers & Credentials
Commercial/Residential:
Commercial
Electronic:
Yes
Product Type:
Access Controllers
Product Group:
Electronic Access Controls
Product Subgroup:
Readers, Keypads and Credentials
Product Function:
Prox Reader
Product Category:
Electronic Access Control
Department:
Door Hardware

CDVI SOLARPB – Frequently Asked Questions

1) Will the CDVI SOLARPB proximity reader work with my existing 26-bit Wiegand cards?
Yes. The SOLARPB reads CDVI, HID and most popular 26-bit Wiegand card encoding at 125 kHz, so an existing 125 kHz 26-bit credential population keeps working. It's a Wiegand output reader, so it wires to a controller that accepts Wiegand input, not to a network port. If your site runs 13.56 MHz smart cards or mobile credentials, this is the wrong frequency and you need a multi-technology reader instead.
2) Can the CDVI SOLARPB prox reader be mounted outside on an exterior door?
Yes, it's rated for indoor or outdoor use. The PCB is sealed in epoxy, the housing is polycarbonate, and it carries an IP53 rating. Operating range is -22F to 158F (-30C to 70C), which covers most North American exterior installs. IP53 is splash and dust protection, not submersion, so it belongs under a soffit or on a wall face rather than somewhere it sits in standing water or direct pressure spray.
3) What power does the CDVI SOLARPB reader need, and how many can I run off one supply?
12 Vdc at 100 mA draw per reader. On a typical 12 Vdc access control power supply that's a small load, so budget 100 mA per reader on top of your lock current and size the supply accordingly. Voltage drop matters on long home runs, so check that the reader still sees 12 Vdc at the end of the cable rather than just at the panel.
4) Will the CDVI SOLARPB fit on a narrow aluminum storefront mullion?
The SOLARPB measures 5.5 in (140mm) x 1.65 in (42mm) x 1.4 in (23mm), so the narrow face is 1.65 inches. That fits most common aluminum storefront stiles, but measure your mullion face before ordering, because on a very narrow stile you'd want CDVI's dedicated mullion-style reader instead. CDVI's range includes mini, mullion, vandal-resistant and reader/keypad combination models.
5) Is the CDVI SOLARPB UL listed for access control?
It carries ETL to UL294, the access control system units standard, along with RoHS, WEEE, IP53, CE, FCC and R&TTE. If your facility spec calls for UL294 recognized reader hardware on the egress or entry side, that listing is on record for this reader.
6) What controller do I need with the CDVI SOLARPB, or is there an all-in-one kit?
The SOLARPB is a reader only, with Wiegand output, so it needs a separate access controller behind it. If you're starting a system from scratch on two doors, CDVI's A22KITSTB Atrium 2-door kit bundles the A22 controller with two STARPB readers and 15 credentials, which is a controller-with-reader package rather than a loose reader. Buy the SOLARPB when you already have a Wiegand-capable panel in place, or when you're replacing a failed reader on an existing head end.
7) Does the CDVI SOLARPB prox reader include a door controller, or is a separate controller needed?
The SOLARPB is a reader only - it reads 125 kHz CDVI, HID and most popular 26-bit Wiegand cards and sends that credential out over Wiegand to a controller that makes the lock decision. If the opening has no controller behind it yet, the CDVI Americas A22KITSTB Atrium 2-door kit pairs a controller with readers and 15 credentials in one package, and the Schlage Electronics CTE ENGAGE single door controller carries a mobile-enabled multi-technology reader on board for one door. Choose the SOLARPB when an access control panel is already in place and the reader at the door is what is being added or replaced.
8) What should be used instead of a 125 kHz prox reader for an opening that needs mobile phone credentials?
The SOLARPB reads 125 kHz proximity cards - CDVI, HID and most popular 26-bit Wiegand encoding - so the credential is a card or fob. For an opening where the credential needs to be a phone, the Schlage Electronics CTE ENGAGE single door controller with mobile-enabled multi-technology reader handles that door as a combined controller and reader on a direct RS-485 connection. The SOLARPB remains the fit where the site is already issuing 125 kHz cards and wants every door reading the same credential.
9) How close does the card have to be to the SOLARPB reader?
Read range is up to 2.4 inches (6 cm). That's a present-the-card reader, not a hands-free or long-range one, so users will hold the credential to the face of the unit. It also means you can mount two readers reasonably close together, back to back on either side of a wall for instance, without much concern about cross-reading.
10) What's the difference between the CDVI SOLARPB prox reader and a Schlage ENGAGE CTE door controller?
Two different things. The SOLARPB is a 125 kHz prox reader with Wiegand output that reports to a controller you supply. The Schlage Electronics CTE MTB11-485 is a single door controller with a mobile-enabled multi-technology reader built in, connecting over direct RS-485. Pick the SOLARPB when the panel and credentials already exist and you're adding or replacing a reader; pick a controller-with-reader unit when you need the door decision-making and mobile credential support in the same device.
11) Is the CDVI SOLARPB rated for commercial buildings or just residential use?
Commercial. It's classified as commercial access control hardware, epoxy-sealed and rated -22F to 158F, and it holds ETL to UL294. That's the combination an MRO or institutional buyer needs for a standardized reader across a multi-building campus or a multi-family portfolio, where every door gets the same reader and the same 26-bit credential.
12) For a two-door access control install starting from scratch, is a pair of SOLARPB readers enough?
Two SOLARPB readers cover the credential side of two openings but not the control side - each one is a prox reader sending Wiegand output, so the panel, power and credentials are still separate purchases. The CDVI Americas A22KITSTB Atrium 2-door kit bundles the A22 controller, two STARPB readers and 15 credentials for exactly that scenario. Buying SOLARPB readers individually makes sense on a two-door job when the controller is already specified or when a reader needs to be matched to what is on the other doors.
13) Can a CDVI SOLARPB be wired in place of a Schlage CTE ENGAGE controller?
No - the two are not interchangeable even though both sit at the door. The SOLARPB is a Wiegand prox reader operating at 12 Vdc and 100 mA, reporting card reads to a separate controller. The Schlage Electronics CTE ENGAGE unit is a single door controller with the reader built in, connecting by direct RS-485. Swapping a SOLARPB onto RS-485 controller wiring will not work; the SOLARPB replaces a Wiegand reader head, not a door controller.
14) Does the SOLARPB reader tell the user whether the card was accepted?
Yes, both ways. The reader is illuminated and signals in blue, green and red, and it gives audible feedback as well as visual. For a resident or tenant population that's what keeps people from re-presenting the card repeatedly at the door, and for a technician it's the first thing you look at when troubleshooting a no-read.
15) Does the CDVI SOLARPB reader come in white?
The SOLARPB is the black finish. CDVI's matching keypad-reader version of the same family is offered in black as SOLARKPB and white as SOLARKPW, so if the opening needs white to match existing hardware, that's the direction to look rather than expecting a white SOLARPB.
