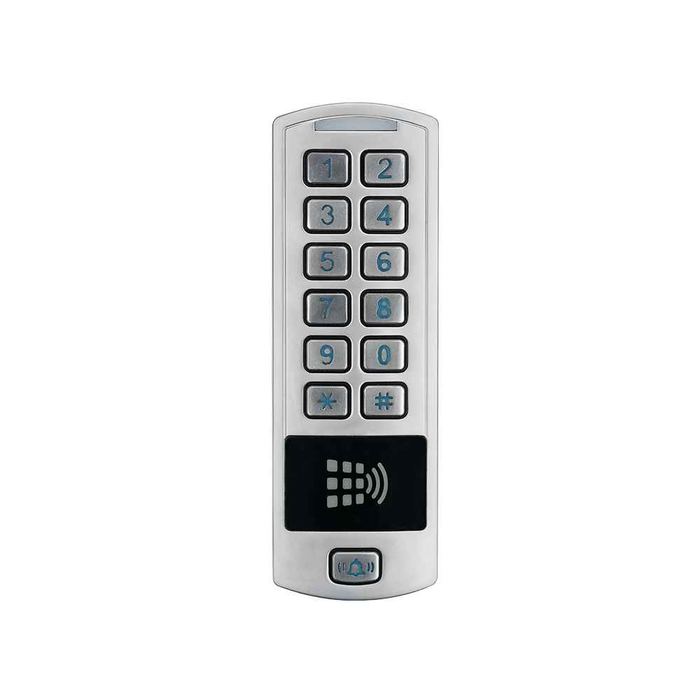

A3 Vandal Resist Standalone Door Controller with RFID
Heavy duty RFID MIFARE® compatible with keypad and doorbell connections. Provides proximity access for up to 600 Code/Card Clients.
The A3 Vandal Resist MIFARE® compatible door controller provides a compact, affordable proximity access control system allowing flexible entry for up to 600 users, including two Panic Clients.
Many smaller business buildings are still secured by traditional lock and key, meaning doors can be left unlocked all day leaving them open to possibilities of unauthorised persons gaining access, as well as keys going missing. The A3 Vandal Resist door controller offers you a keyless solution as a standalone product; an affordable access control system that does not require complex software purchases, external programmers or licensing costs.
Key Features
- MIFARE® compatible
- Configurable penalty time
- Anti-tamper sensor
- LED status indicators
- Surface mount
- Alarm and doorbell connections
- Conforms to IP66 rating
Technical Specs
- Brand - Access by Codelocks
- Buttons - 2 x 6
- Clients – Smart Cards - Up to 600
- Finish - Silver Grey
- IP Rating - IP66
- Keypad - 12 individual buttons
- Lock Dimensions - 2" x 5 7⁄8" x 3⁄4"
- Lock Material - Plastic
- Orientation - Vertical
- Suitable For - Internal, External
- Supported Cards - MIFARE® Classic 13.56MHz 14443-3 Type A, MIFARE® DESFire® 13.56MHz ISO/IEC 14443 A 1-4, MIFARE Ultralite® 13.56MHz ISO/IEC 14443 A 1-3
- User Levels - Master, User, Panic
- User Types - Code, Card
Downloads and Documentations
Manufacturer Resources
Product Specs
- Category:
- Electronic Access Controls
- Product Group:
- Electronic Access Controls
- Series:
- A3 Door Controllers
- Model:
- AL03 DX VR SG
- Product Subgroup:
- Controllers, Power Supplies and Transformers
- Product Type:
- Controllers
- Subcategory:
- Accessories
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- FInish:
- Silver Grey
- Substrate:
- Plastic
- Orientation:
- Vertical
- Dimension:
- 2" x 5 7⁄8" x 3⁄4"
