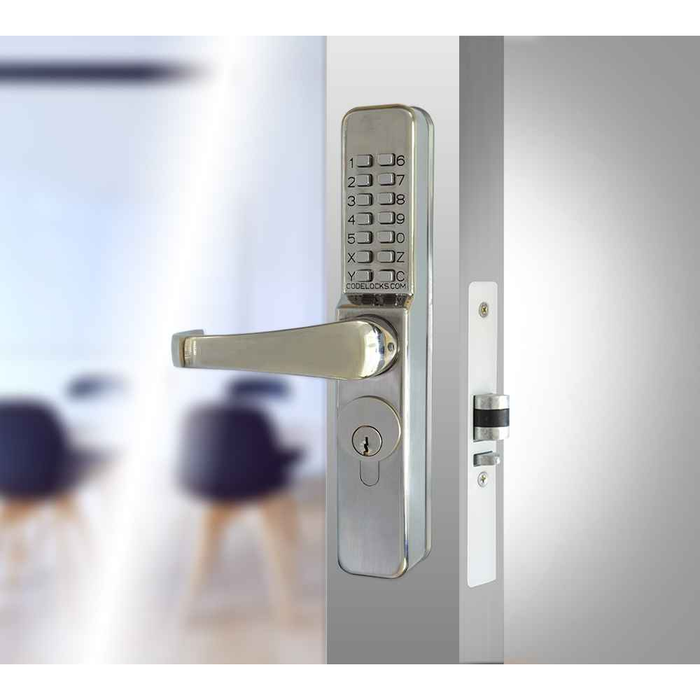

Codelocks CL460 & CL465 Narrow Stile Codelock, Stainless Steel Finish

CL460 & CL465 Narrow Stile Codelock, Stainless Steel Finish

Narrow stile mechanical Codelock suitable for aluminium doors with threaded cylinder and code free option.

Narrow Stile Codelock complete with threaded cylinder and cams.

Key Features

• Internal and external aluminium doors
• Mechanical narrow stile Codelock
• Medium duty lock
• Lever handle (standard) lock for doors hung on the left or right
• Ball shape knob and short lever handle available
• Complete with cams and threaded cylinder
• Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
• Designed as a retrofit for Adams Rite 4510 lockcase or similar style ANSI round cylinder Mortise deadlatches.

Technical Specs

• Brand - Codelocks
• Buttons - 2 x 7
• Code Change Method - Tumblers (Off Door)
• Codes - Single code storage - 8,191 non sequential combinations available
• Finish - Stainless Steel
• Handed - Non Handed - Locks will fit doors hung on the left or right
• Keyed Alike - Available
• Keypad - 14 stainless steel buttons
• Lock Material - Zinc Alloy
• Orientation - Vertical
• Spindle - Two part ¹⁄₄" (6mm) spring loaded spindle
• Suitable For - Internal, External
• User Types - Code
•

Documentation & Downloads

• CL460 & CL470 Brochure
• CL400 Documentation
• Installation Instructions
• Code Change Guide
• Installation Template
