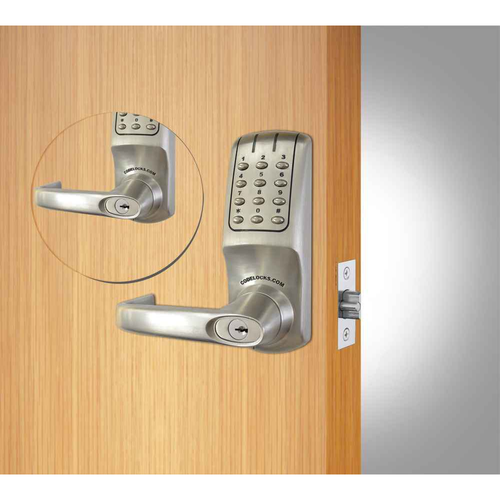

CL510 & CL515 Tubular Latchbolt Back-to-Back
Heavy duty mechanical locks with two coded plates providing coded access in both directions. Code free option.
A heavy duty tubular mortise latch back to back to provide coded access in both directions. The outside lever handle will retract the latch after a correct code is entered. The spring loaded latchbolt will lock automatically when the door is closed.
Key Features
- Internal doors and external doors
- Mechanical Codelock
- Heavy duty tubular mortise latch
- Lever handle lock for doors hung on the left or right
- Available in stainless steel
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
Technical Specs
- Brand - Codelocks
- Buttons - 2 x 6
- Code Change Method - Tumblers (Off Door)
- Code Free Option - Yes
- Codes - Single code storage - 2,047 non sequential combinations available
- Door Thickness - 1 3⁄8" - 2 3⁄8" (35mm - 60mm)
- Finish - Stainless Steel
- Handed - Non Handed - Locks will fit doors hung on the left or right
- Keypad - 12 stainless steel buttons
- Latch Type - 2 3⁄8" Mortise Latch, 2 3⁄4" Mortise Latch
- Lock Dimensions - 7" (177mm) x 1 7⁄8" (48mm)
- Lock Material - Zinc Alloy
- Orientation - Vertical
- Spindle - Two part 5⁄16" (8mm) spring loaded spindle
- Suitable For - Internal, External
- User Types - Code
Documentation & Downloads
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Subcategory:
- Mechanical Locks
- Product Group:
- Mechanical Locks
- Series:
- CL500 Series
- Product Subgroup:
- Bored Locksets
- Commercial/Residential:
- Commercial
- Lock Type:
- Tubular
- Product Type:
- Mechanical Locks
- Orientation:
- Vertical
- Substrate:
- Zinc Alloy
- Dimensions:
- 7" (177mm) x 1 7⁄8" (48mm)
- Handed:
- Non Handed
- Latch Type:
- Mortise Latch
- Duty Level:
- Heavy Duty
- Product Model:
- CL500
