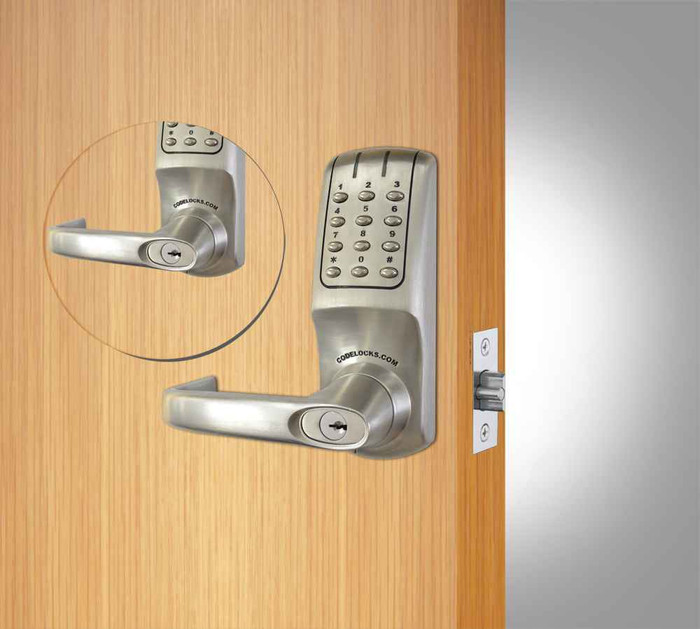

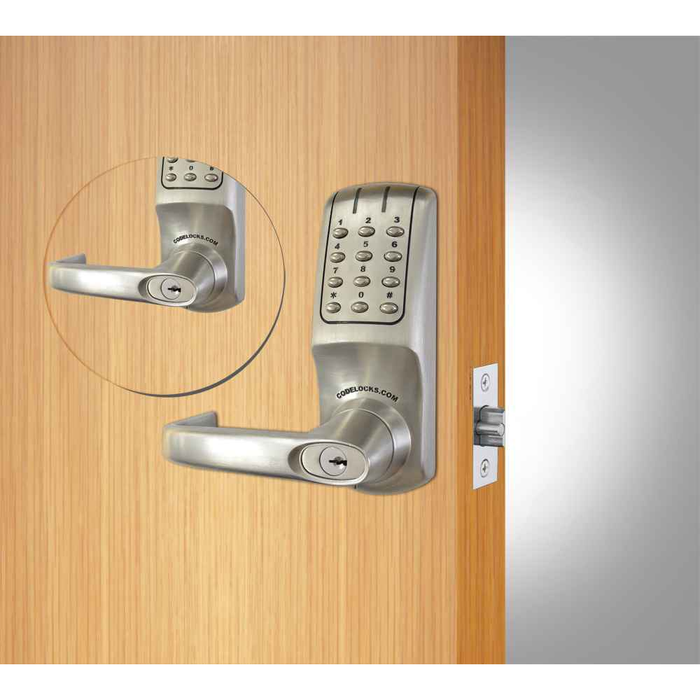

CL5210 Tubular Latchbolt, Back to Back
A heavy duty electronic tubular mortise latch back to back providing coded access in both directions.
Independent keypad plates on both sides to provide coded access in both directions.
Key Features
- Mortise latch back to back
- 3-hour UL 10C certification
- Allows up to 80 User Codes
- Allows up to 10 one-time User Codes to be entered
- PVD low maintenence finish
- Brushed Steel finish
- Over 200,000 operations from 4 x AA cells (provided)
- Tamper time out and low battery warning
- Connections for remote release by reception desk button
- Alarm release included
- Code Free entry
- Lever handle lock for doors hung on the left or right
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
Technical Specs
- Brand - Codelocks
- Buttons - 3 x 4
- Code Change Method - Keypad (On Door)
- Codes - User Codes 4, 5 or 6 digits long
- Door Thickness - 1 3⁄8" - 2 3⁄8" (35mm - 60mm)
- Finish - Brushed Steel
- Handed - Non Handed - Locks will fit doors hung on the left or right
- Keyed Alike - Available
- Keypad - Individual stainless steel buttons
- Latch Type - Tubular Latchbolt
- Lock Material - Zinc Alloy
- Low Battery Warning - Red LED will flash on opening to indicate low battery
- Memory - Stores up to 80 User Codes
- Operations - Up to 200,000 per set of 8 x AAA batteries
- Orientation - Vertical
- Power - 4x AA
- Spindle - Two part 5⁄16" (8mm) spring loaded spindle
- Suitable For - Internal, External
- User Types - Code
