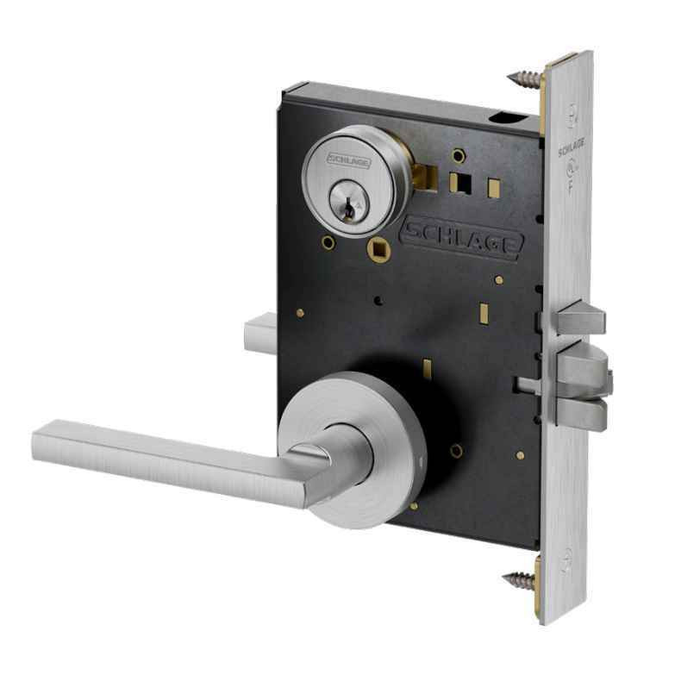

Schlage PM050 Grade 1 Entrance/Office Mortise Lock, Standard Cylinder - Longitude Lever

Schlage PM050 Grade 1 Entrance/Office Mortise Lock, Standard Cylinder - Longitude Lever

(No reviews yet) Write a Review

Model: PM050P LONA 625
$866.00
$541.80
Selected Finish is
Selected Lever Style is
Selected Cylinder is
Selected Rose/Escutcheon Design is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$866.00
$541.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage PM050 Grade 1 Entrance/Office Mortise Lock, Standard Cylinder - Longitude Lever

Overview

Grade 1, Mortise Locks Purpose-built to serve the commercial real estate, retail, multifamily and hospitality industries, Schlage Performance Series™ locks feature exceptional quality and style at a highly competitive price point. The PM Series offers 26 functions, including three electrified, and four mortise deadbolt functions, all made to meet Schlage’s rigorous quality standards. With popular levers and finish options, Schlage's full key system security line up, and its durable design, you can meet needs for both security and style. They are made to suite with other Allegion products to present a quality, complete door hardware solution and provide a consistent user experience throughout your building or complex. Better yet, you can suite the PM Series mortise locks with the PT Series tubular locks, as they share lever and rose styles.



PM050 - Entrance/Office Lock

  • Key cylinder outside; thumbturn inside; latchbolt and deadlocking auxiliary latch
  • Latchbolt retracted by lever from either side
  • Outside lever is made inoperative by key outside or by turning inside thumbturn
  • Key outside unlocks outside lever and retracts latchbolt
  • Rotating inside thumbturn unlocks outside lever; turning inside lever retracts latchbolt but does not unlock
  • Inside lever always free for immediate egress



Chassis

  • Case: Cold Rolled Steel (CRS) with corrosion resistant zinc dichromate plating
  • Case size: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm) Note: PM and L Series case and cover holes differ.
  • Spacing: lever to cylinder 3-7/8" (98 mm);  lever to thumbturn hub 2-11/16" (68 mm)
  • Door thickness: 1-3/4" (44 mm) standard; 1-3/8" (35 mm) minimum; fits doors up to 2-1/2" thick - specify door thickness if  over 1-3/4" and position in door (Available EE only)
  • Field reversible handing



Trim Options

  • 10 lever designs made of zinc
  • N escutcheons: 7-7⁄8” x 2-1⁄2” x 7⁄16” (200 mm x 64 mm x 11 mm); wrought brass
  • Roses: A 2-1/8" (54 mm), B 2-9/16" (65 mm), C 2-5/8" (67 mm) - brass
  • Thumbturn style is ADA qualified



Latches, Armors, Strikes

  • Backset: 2-3/4" (70 mm) only
  • Armor: Standard - 1-1⁄4" x 8" x 7⁄32" (32 mm x 203 mm x 6 mm); Optional - 1-1⁄16" x 8" x 7⁄32"  (27 mm x 203 mm x 6 mm)
  • Deadbolt: 1" (25 mm) throw stainless steel
  • Latch: 3⁄4" (19 mm) throw stainless steel with anti-friction tongue
  • Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) standard; dust box included
  • Strike lip length: 1-3⁄16" (30 mm); optional strike lip lengths - 7⁄8", 1", 1-1⁄2", 1-3⁄4", and 2"



DOWNLOADS & RESOURCES

Product Information



Related Product Information



Technical Resources



Manufacturer Resources

Product Specs

Subcategory:
Mortise Locks
Product Group:
Mechanical Locks
Series:
PM Series
Function Description:
Levers only-both sides; latchbolt only; Latchbolt retracted by lever from either side at all times
Grade:
Grade 1
Keyed Function:
Non-Keyed
Handle Type:
Lever
Standard Strike:
10-072 1-1/4" x 4-7/8" Square Corner Strike, Box (1-3/16" Lip Length)
Warranty:
3 Year Limited
Keyed:
No
ANSI/BHMA:
F01
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Passage
IMAP Policy:
Yes
Product Attribute:
Mortise Locks
Electronic:
No
Product Model:
PM050
Product Function:
Passage/Hall/Closet
Door Hand Direction:
Field Reversible
Door Thickness Range:
1-3/4"
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

Schlage PM050P LONA 625 – Frequently Asked Questions

1) Will the Schlage PM050 mortise lock fit a 2-inch thick door?
The PM050 is built around a 1-3/4 inch door as standard, with 1-3/8 inch the minimum, and it will go into doors up to 2-1/2 inches thick. Above 1-3/4 inches you have to specify the actual door thickness and the lock's position in the door when ordering, and that thicker build is available in EE only. Don't assume a thick door order ships the same as a standard one.
2) What backset does the Schlage PM050 mortise lock use, and will it drop into an existing mortise pocket?
2-3/4 inch backset only, no other option. The case measures 4-7/16 x 6-1/16 x 1 inch, and Schlage notes that PM Series case and cover holes differ from the older L Series, so a PM050 is not a straight hole-for-hole swap into an L Series pocket even though the backset matches. Check the existing prep against the PM template before you commit.
3) How does the entrance/office function on the Schlage PM050 actually work day to day?
Key cylinder outside, thumbturn inside. The outside lever is locked either by the key outside or by turning the inside thumbturn, and it is unlocked the same two ways. Key from outside both unlocks the outside lever and retracts the latchbolt. Turning the inside lever always retracts the latch for immediate egress, but it does not change the locked state. That is the classic office door behavior: staff can lock the door from inside without a key and leave it that way.
4) Do I get a cylinder with the Schlage PM050, or do I order that separately?
Depends on which cylinder option you pick. P is a conventional 6-pin cylinder keyed 5. T is a full size interchangeable core construction core. B comes less SFIC, J comes less FSIC, and L comes less a conventional 6-pin cylinder, so with any of those three you are supplying the core or cylinder yourself. If you key your building on an SFIC system, B is the option that lets your existing cores drop in.
5) Is the Schlage PM050 Grade 1, and does it meet an ANSI function code for spec work?
Grade 1, and the function is ANSI/BHMA F01. The PM Series is a commercial line aimed at commercial real estate, retail, multifamily and hospitality, so it is written for the openings that see constant traffic. The thumbturn style is ADA qualified.
6) I need a mortise lock for a corridor or closet door that never locks - what should I use instead of the PM050?
Go to a dedicated passage lockbody. The Falcon MA101 is a Grade 1 heavy duty mortise passage lock with field reversible operation and a fire rating, and Hager offers the 3810S with rose trim and the 3810E with escutcheon trim, both Grade 1 passage mortise locks on a 2-3/4 inch backset covering 1-3/4 to 2-1/2 inch doors. All three drop the cylinder and thumbturn hardware entirely, where the PM050 is ordered against cylinder options including a conventional 6-pin, less-SFIC and less-FSIC preps.
7) What is the closest cross-brand equivalent to the Schlage PM050 mortise lock?
The Cal-Royal NM8050 is the nearest match in function and door prep: it is a heavy duty Grade 1 Office/Entrance mortise lockset with an auxiliary deadlatch, rated for a 1-3/4 inch door, the same nominal door thickness the PM050 is built around. Hager's 3850E is a second route - a Grade 1 office mortise lock with lever and escutcheon trim on a 2-3/4 inch backset, matching the PM050's 2-3/4 inch backset, and it covers doors from 1-3/4 inch up to 2-1/2 inch. The PM050 differs in trim breadth, offering A, C and D roses as well as an N escutcheon.
8) The opening needs to stay locked at all times with key access only - is the PM050 right, or is there a better mortise lock?
That is storeroom function, not entrance/office. The Accentra 8805FL is a Grade 1 storeroom mortise lock from the 8800 Series with an Arcadia lever, and the Cal-Royal NM8080 is a heavy duty Grade 1 storeroom mortise lockset with an interchangeable core option. Both keep the outside lever locked continuously, while the PM050 is built around a thumbturn that lets an occupant unlock the outside lever from inside.
9) Can I use the PM050 on a behavioral health unit, or do I need something else?
Anti-ligature openings call for purpose-built trim. TownSteel's MRX-L-01 is a Grade 1 heavy duty anti-ligature lever mortise lockset in stainless steel with passage function for 1-3/4 inch doors, and the MRX-A-01 is the same passage function in satin stainless with ligature resistant arch trim. Marks USA 5PDN is a Grade 1 hospital passage mortise push/pull paddleset, ligature resistant and ADA compliant in satin stainless steel. The PM050 uses conventional lever trim in zinc with brass roses and wrought brass N escutcheons.
10) Which mortise locks look like alternatives to the PM050 but will not work on a standard 2-3/4 inch backset mortise pocket?
Watch the backset and the door type. Baldwin's 6301LS entry/apartment and 6310190RRLS entry/storeroom lock bodies are cut for a 2-1/2 inch backset, not the 2-3/4 inch the PM050 uses. Marks USA 21AC and 22AC are ornamental iron mortise locks listed for 1 inch doors, far below the PM050's 1-3/4 inch standard. Kaba Ilco's BR Series is a glass door bottom rail lock, and the Ilco 185 Series is a deadbolt function mortise lock with no latch and lever operation.
11) Is the Schlage PM050 handed, or can I stock one for both left and right doors?
Handing is field reversible on the PM050, so one lock covers both hands and you can carry a single part number on the truck or in the parts room instead of splitting inventory.
12) What rose and escutcheon choices come with the Longitude lever PM050, and what are the sizes?
Longitude lever trim is offered with an A, C or D rose, or with an N escutcheon. The N escutcheon measures 7-7/8 x 2-1/2 x 7/16 inches in wrought brass. Roses are brass, with A at 2-1/8 inches and C at 2-5/8 inches. On a narrow-stile or glass-adjacent opening the rose is the safer pick; the escutcheon is what you want when you are covering an old prep or matching existing escutcheon trim down a corridor.
13) What finishes does the Schlage PM050 Longitude lever come in for matching the rest of my building?
Six finishes: 613 oil rubbed bronze, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome and 643E aged bronze. Because PM Series mortise locks share lever and rose styles with the PT Series tubular locks, you can run the same Longitude look across mortise openings and tubular openings, and suite the whole package with other Allegion hardware.
14) What other Grade 1 mortise locks could I use instead of the Schlage PM050 for an office door?
The closest cross-brand equivalent we carry is the Cal-Royal NM8050, a heavy duty Grade 1 entrance/office mortise lockset with an auxiliary deadlatch, listed for 1-3/4 inch doors. Hager's 3850E is a Grade 1 office function mortise lock with lever and escutcheon, non-keyed, on a 2-3/4 inch backset and rated for 1-3/4 to 2-1/2 inch doors, which suits a thicker door without special ordering. If the opening needs classroom function rather than office, look at the Corbin Russwin ML2003 or the Cal-Royal NM8070.
15) How far apart are the cylinder and thumbturn holes on the Schlage PM050 for laying out the door prep?
Measured from the lever hub, the cylinder sits 3-7/8 inches away and the thumbturn hub 2-11/16 inches. Those are the two spacings that drive your trim template on a PM050, and they are why a PM Series cover does not line up with an older Schlage L Series prep.
16) If I want keypad or credential access instead of a key on this opening, what mortise lock takes the place of the PM050?
The PM050 is a non-electronic mechanical mortise lock. For electronic access on the same mortise prep, Schlage CO-100 is a Grade 1 standalone electronic mortise lock with a keypad reader for 1-3/4 inch doors, TownSteel FME-2000 is a Grade 1 heavy duty classroom mortise lockset with RFID for 1-3/4 inch doors, and the Schlage Electronics LEMD-GRW is a Grade 1 ENGAGE Series wireless mortise lock with a 125kHz proximity reader and a 3 hour fire rating. Alarm Lock's DL3500CR is a Grade 1 electronic mortise lock with 300 user codes and classroom function for 1-5/8 to 1-7/8 inch doors.
17) What mortise lock should I specify for a classroom instead of the PM050?
Classroom function is a different lock. The Corbin Russwin ML2003 is a Grade 1 mortise classroom lockset from the ML2000 Series for 1-3/4 inch doors, and the Cal-Royal NM8070 is a heavy duty Grade 1 classroom mortise lockset with auxiliary deadlatch, also 1-3/4 inch. For classroom security with a status indicator, Marks USA LA318GJ is a Grade 1 classroom security indicator mortise lockset with ANSI strike and a steel escutcheon measuring 8-1/2 by 2-3/4 by 7/16 inch. All three share the PM050's 1-3/4 inch nominal door thickness.
18) The room is a restroom or bedroom - what mortise lock replaces the PM050 there?
Use a privacy function. The Cal-Royal NM8440 is a heavy duty Grade 1 privacy mortise lockset with deadbolt for 1-3/4 inch doors, and the Hager 3840S is a Grade 1 privacy mortise lock on a 2-3/4 inch backset for 1-3/4 to 2 inch doors, matching the PM050's 2-3/4 inch backset. Privacy locks are thumbturn-operated without a keyed cylinder, whereas the PM050 is ordered with cylinder preps such as the conventional 6-pin keyed-5 option.
19) I only need a matching non-functioning lever on an inactive leaf - is the PM050 the right order?
No, the PM050 is a working mortise lockset with a latchbolt, deadlocking auxiliary latch and a 1 inch throw stainless deadbolt. For an inactive or decorative leaf, Emtek offers dummy mortise entrance locksets in several trims - the 3019 Brisbane in brass, 3102 Memphis, 3104 Hamilton and 3106 Manhattan. Falcon's MESC600DT is a fire rated dummy escutcheon lever trim for M9900 Series exit devices.
20) What is the Schlage PM050 lock case and latch made of, and will it hold up in a corrosive or high-traffic spot?
The case is cold rolled steel with corrosion resistant zinc dichromate plating. The latchbolt and deadbolt are both stainless steel, the latch carrying an anti-friction tongue that helps it close against a positive-pressure or gasketed frame. Levers across the PM trim line are zinc, and the escutcheons and roses are brass.
21) Is there a mortise lock body I can buy without the trim as an alternative to the PM050?
Yes. BEST 45H Series is a heavy duty mortise lock body with public entrance function and field reversible operation, matching the PM050's field reversible handing, and the 45HCA Series lockbody offers an intruder function. Command Access ML190 is a heavy duty motorized mortise lock with storeroom function and field selectable EL/EU operation on 24VDC. The PM050 ships as a complete lockset with lever, rose or escutcheon trim and an ANSI curved lip strike with dust box.
