Schlage PM050 Grade 1 Entrance/Office Mortise Lock, Standard Cylinder - Broadway Lever

Schlage PM050 Grade 1 Entrance/Office Mortise Lock, Standard Cylinder - Broadway Lever

(No reviews yet) Write a Review

Model: PM050P BRWA 626
$854.00
$534.44
Selected Finish is
Selected Lever Style is
Selected Cylinder is
Selected Rose/Escutcheon Design is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$854.00
$534.44
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage PM050 Grade 1 Entrance/Office Mortise Lock, Standard Cylinder - Broadway Lever

Overview

Grade 1, Mortise Locks Purpose-built to serve the commercial real estate, retail, multifamily and hospitality industries, Schlage Performance Series™ locks feature exceptional quality and style at a highly competitive price point. The PM Series offers 26 functions, including three electrified, and four mortise deadbolt functions, all made to meet Schlage’s rigorous quality standards. With popular levers and finish options, Schlage's full key system security line up, and its durable design, you can meet needs for both security and style. They are made to suite with other Allegion products to present a quality, complete door hardware solution and provide a consistent user experience throughout your building or complex. Better yet, you can suite the PM Series mortise locks with the PT Series tubular locks, as they share lever and rose styles.

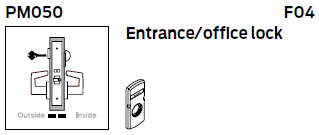

PM050 - Entrance/Office Lock

  • Key cylinder outside; thumbturn inside; latchbolt and deadlocking auxiliary latch
  • Latchbolt retracted by lever from either side
  • Outside lever is made inoperative by key outside or by turning inside thumbturn
  • Key outside unlocks outside lever and retracts latchbolt
  • Rotating inside thumbturn unlocks outside lever; turning inside lever retracts latchbolt but does not unlock
  • Inside lever always free for immediate egress



Chassis

  • Case: Cold Rolled Steel (CRS) with corrosion resistant zinc dichromate plating
  • Case size: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm) Note: PM and L Series case and cover holes differ.
  • Spacing: lever to cylinder 3-7/8" (98 mm);  lever to thumbturn hub 2-11/16" (68 mm)
  • Door thickness: 1-3/4" (44 mm) standard; 1-3/8" (35 mm) minimum; fits doors up to 2-1/2" thick - specify door thickness if  over 1-3/4" and position in door (Available EE only)
  • Field reversible handing



Trim Options

  • 10 lever designs made of zinc
  • N escutcheons: 7-7⁄8” x 2-1⁄2” x 7⁄16” (200 mm x 64 mm x 11 mm); wrought brass
  • Roses: A 2-1/8" (54 mm), B 2-9/16" (65 mm), C 2-5/8" (67 mm) - brass
  • Thumbturn style is ADA qualified



Latches, Armors, Strikes

  • Backset: 2-3/4" (70 mm) only
  • Armor: Standard - 1-1⁄4" x 8" x 7⁄32" (32 mm x 203 mm x 6 mm); Optional - 1-1⁄16" x 8" x 7⁄32"  (27 mm x 203 mm x 6 mm)
  • Deadbolt: 1" (25 mm) throw stainless steel
  • Latch: 3⁄4" (19 mm) throw stainless steel with anti-friction tongue
  • Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) standard; dust box included
  • Strike lip length: 1-3⁄16" (30 mm); optional strike lip lengths - 7⁄8", 1", 1-1⁄2", 1-3⁄4", and 2"



DOWNLOADS & RESOURCES

Product Information



Related Product Information



Technical Resources



Manufacturer Resources

Product Specs

Subcategory:
Mortise Locks
Product Group:
Mechanical Locks
Series:
PM Series
Function Description:
Levers only-both sides; latchbolt only; Latchbolt retracted by lever from either side at all times
Grade:
Grade 1
Keyed Function:
Non-Keyed
Handle Type:
Lever
Standard Strike:
10-072 1-1/4" x 4-7/8" Square Corner Strike, Box (1-3/16" Lip Length)
Warranty:
3 Year Limited
Keyed:
No
ANSI/BHMA:
F01
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Passage
IMAP Policy:
Yes
Product Attribute:
Mortise Locks
Electronic:
No
Product Model:
PM050
Product Function:
Passage/Hall/Closet
Door Hand Direction:
Field Reversible
Door Thickness Range:
1-3/4"
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

Schlage PM050P BRWA 626 – Frequently Asked Questions

1) Will the Schlage PM050 mortise lock fit a 2-inch thick door?
The PM050 is built around 1-3/4 inch doors as standard, with 1-3/8 inch the minimum. It can go into doors up to 2-1/2 inches thick, but over 1-3/4 inches you have to specify the door thickness and the lock's position in the door when you order, and that option is available EE only.
2) What does the PM050 entrance/office function actually do at the door?
Key cylinder outside, thumbturn inside. The latchbolt pulls back with the lever from either side, and the outside lever is locked off either by the key outside or by rotating the inside thumbturn. Key outside unlocks the outside lever and retracts the latch. Turning the inside lever retracts the latch but does not unlock the outside. Inside lever is always free for immediate egress, so it works on an office or a suite door where staff lock up from inside at the end of the day.
3) Do I have to order the Schlage PM050 handed?
No. Handing is field reversible on the PM050, so one lock covers left and right hand openings and you can stock a single part number across a building.
4) What cylinder options do I pick from when ordering the PM050, and can I use my own core?
Five cylinder choices: B less SFIC, J less FSIC, L less conventional 6-pin cylinder, P conventional 6-pin keyed 5, and T FSIC construction core. The three less-cylinder options let a locksmith drop in a core off an existing keyway so the lock joins the building's key system, and T gives you a construction core for the job site before the permanent cores go in.
5) What is a cross-brand equivalent to the Schlage PM050 mortise lock for an office or entrance opening?
The Cal-Royal NM8050 is the closest cross-brand match: it is a heavy duty Grade 1 mortise lockset with an Entrance/Office function and a 1-3/4 inch door thickness, the same nominal door thickness the PM050 lists. The Hager 3850E is another route, a Grade 1 Office mortise lock with lever and escutcheon trim on a 2-3/4 inch backset, matching the PM050's 2-3/4 inch backset. The PM050 differs in trim choice, offering A, C and D roses as well as an N escutcheon.
6) I need a plain passage mortise lock with no cylinder at all - what should I order instead of the PM050?
Use the Falcon MA101, a Grade 1 heavy-duty mortise passage lock with field reversible operation and a fire rating, or the Hager 3810S, a Grade 1 passage mortise lock with rose trim on a 2-3/4 inch backset, with the Hager 3810E as the escutcheon-trim version. All three are straight passage functions with no key cylinder, where the PM050 is set up for a cylinder outside and a thumbturn inside.
7) The opening is a classroom, not an office - which mortise lock replaces the PM050 there?
For a classroom function, the Cal-Royal NM8070 is a heavy duty Grade 1 classroom mortise lockset with auxiliary deadlatch on a 1-3/4 inch door, and the Corbin Russwin ML2003 is a Grade 1 classroom mortise lockset in the ML2000 Series, also listed at 1-3/4 inch door thickness. If the spec calls for a classroom security indicator, the Marks USA LA318GJ is a Grade 1 classroom security indicator mortise lockset with an ANSI strike and steel escutcheon.
8) What do I use instead of the PM050 if the door needs to stay locked from the outside at all times?
That is storeroom function rather than entrance/office. The Accentra 8805FL is a Grade 1 storeroom mortise lock with an Arcadia lever in the 8800 Series, and the Cal-Royal NM8080 is a heavy duty Grade 1 storeroom mortise lockset with an interchangeable core option on a 1-3/4 inch door. The PM050 instead lets the outside lever be unlocked by key or by the inside thumbturn.
9) For a behavioral health or detention-type opening, is the PM050 the right mortise lock?
For anti-ligature openings, look at the TownSteel MRX-L-01, a Grade 1 heavy duty stainless steel anti-ligature lever mortise lockset with Passage/Hall/Closet function on a 1-3/4 inch door, or the MRX-A-01, the same passage function with satin stainless ligature resistant arch trim. The Marks USA 5PDN is a Grade 1 hospital passage mortise push/pull paddleset that is ligature resistant and ADA compliant. The PM050 uses conventional zinc lever trim.
10) My door is thicker than 1-3/4 inches - which mortise locks cover that range?
The PM050 is built for a 1-3/4 inch door as standard and is stated to fit doors up to 2-1/2 inches thick when the door thickness and position in door are specified. Among other brands, the Hager 3810E and 3850E list a 1-3/4 inch to 2-1/2 inch door thickness range, and the Baldwin 6301LS entry/apartment lever-by-lever mortise lock body lists 1-3/4 inch and over on a 2-1/2 inch backset - note that backset differs from the PM050's 2-3/4 inch.
11) Can I match PM Series mortise locks to the tubular locks on the lighter doors in the same building?
Yes. The PM Series is made to suite with other Allegion products, and it shares lever and rose styles with the Schlage PT Series tubular locks, so corridor and office doors on mortise prep and the lighter interior doors on tubular prep can carry the same Broadway lever and rose look throughout.
12) Is the Schlage PM050 rated for a high-traffic commercial opening?
It is a Grade 1 commercial mortise lock, ANSI/BHMA function F01, with a cold rolled steel case carrying corrosion resistant zinc dichromate plating and a stainless steel latch and deadbolt. That is the tier used on apartment, hospitality, retail and office entrances.
13) What is the closest alternative to a Schlage PM050 from another brand?
For the same entrance/office function in a Grade 1 mortise body, the Cal-Royal NM8050 is the direct counterpart, listed as an office/entrance mortise lockset with auxiliary deadlatch for 1-3/4 inch doors. Hager's 3850E 3800 Series is an office-function mortise lock on a 2-3/4 inch backset with lever and escutcheon, non-keyed, and it covers 1-3/4 to 2-1/2 inch doors if your leaf is thicker.
14) I just need a non-locking mortise lock for a hall or closet door. Is the PM050 the wrong one?
Yes, it is more lock than you need. The PM050 carries a key cylinder and a thumbturn. For a straight latch-only opening where the lever always retracts the bolt from both sides, look at the Falcon MA101, a Grade 1 heavy duty mortise passage lock with field reversible handing, or the TownSteel MRX-L-01 if the opening calls for an anti-ligature lever.
15) How far apart are the cylinder and thumbturn holes on the PM Series door prep?
Spacing runs 3-7/8 inches (98 mm) from lever to cylinder and 2-11/16 inches (68 mm) from lever to thumbturn hub. Those are the numbers to check against an existing door face prep before you commit to the PM050.
16) Is the Schlage LE Series mortise lock a drop-in alternative to the PM050?
No. The Schlage Electronics LEBMB-ADD is a mobile-enabled mortise lock with push button and LED covering privacy, office and apartment modes, and it is a Grade 2 lock with a 3 hour fire rating on a 1-3/4 inch door. The PM050 is a Grade 1 mechanical mortise lock with no electronics. If you want an electronic Schlage mortise at Grade 1, the LEMD-GRW ENGAGE Series wireless mortise lock with 125kHz proximity reader is Grade 1 with a 3 hour fire rating.
17) Can I use a Sargent 4874 or Kaba Ilco 185 in place of the PM050?
Not as a substitute for a latching lockset. The Sargent 4874 is a double cylinder mortise deadbolt on a 2-3/4 inch backset and the Kaba Ilco 185 Series is a deadbolt function mortise lock - both throw a bolt only and neither gives you a lever-operated latch. The PM050 is a lever mortise lock with a latchbolt retracted by lever from either side. Pair a deadbolt with a passage set, or use the PM050 alone.
18) What is the difference between the PM050 and a BEST 45H mortise lock body?
The BEST 45HCAC is a heavy duty mortise lock body in the 45H Series with Public Entrance function and field reversible operation, sold as a lock body. The PM050 is supplied as a complete lockset with Broadway lever trim, a choice of A, C or D rose or N escutcheon, and finishes including 613 Oil Rubbed Bronze, 626 Satin Chrome and 622 Matte Black. Both are field reversible for handing.
19) Which mortise lock should I choose instead of the PM050 for a privacy bed or bath door?
Privacy is a different function. The Cal-Royal NM8440 is a heavy duty Grade 1 privacy mortise lockset with deadbolt on a 1-3/4 inch door, and the Hager 3840S is a Grade 1 privacy mortise lock on a 2-3/4 inch backset with a 1-3/4 inch to 2 inch door thickness range. The PM050 is keyed from the outside with a thumbturn inside rather than a privacy set.
20) For a dormitory corridor door, is there a better mortise lock than the PM050?
The Sargent 7925 is a Grade 1 heavy duty mortise lock in the 7900 Series with Corridor/Dormitory exit function, rose trim and a single cylinder deadbolt - that deadbolt is what separates it from the PM050, which uses a latchbolt with a deadlocking auxiliary latch and no deadbolt in this function.
21) I want keypad access on this opening instead of a key - what mortise locks do that?
Options include the Alarm Lock DL3500CR, a Grade 1 Trilogy electronic mortise lock with 300 user codes and classroom function on a 1-5/8 to 1-7/8 inch door, the Dormakaba E-Plex 2066 electronic pushbutton keyless mortise lock, and the BEST 45HZ EZ Series electronic keypad mortise lock with key override. The PM050 is a mechanical lock with no electronics, keyed by a conventional 6-pin, SFIC or FSIC cylinder depending on the prep ordered.
22) Is there an electronic version if I want to add credentials later instead of keys?
The PM050 is a purely mechanical lock. If the opening needs credentials, Schlage Electronics offers the LEMD Grade 1 ENGAGE wireless mortise lock with a 125kHz proximity reader and mobile access, or the CO-100 standalone mortise lock with a keypad reader. Both are separate locks, not a conversion of the PM050.
23) Is the inside thumbturn on the PM050 usable for an ADA opening?
The thumbturn style on the PM Series is ADA qualified, and the lock is lever operated on both sides, so it does not require tight grasping or wrist twisting to get out.
24) Can an Emtek 3102 or similar mortise entrance lockset stand in for the PM050?
No. The Emtek 3102 Memphis, 3104 Hamilton and 3106 Manhattan mortise entrance locksets are dummy function - they mount trim only with no latching or locking action. The PM050 is a Grade 1 commercial lock with a working latchbolt, deadlocking auxiliary latch and key cylinder.
