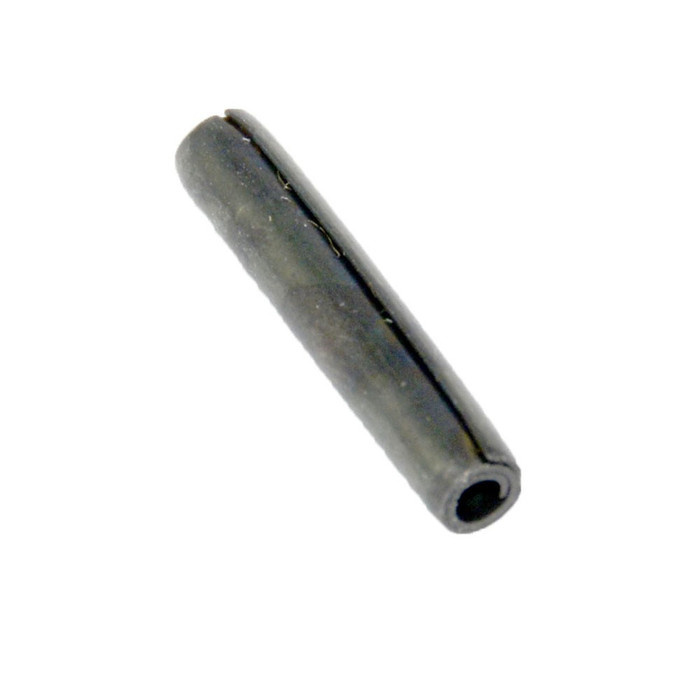

Corbin Russwin 228F18-8 ED7000 Roll Pin, Steel Black-Finished 8mm, Bag of 100
Commercial-Grade Steel Roll Pin for Exit Device Positioning and Assembly
The Corbin Russwin 228F18-8 is a steel, black-finished 8mm roll pin engineered for use in commercial exit device hardware. Designed for positioning, connecting, and fixing parts within compatible exit devices, this roll pin is a genuine Corbin Russwin replacement component compatible with the ED7000 Crossbar Exit Device and the ED6200 Rim Exit Device. Each purchase includes a bag of 100 pieces, making this an ideal supply for maintenance teams, locksmiths, and door hardware professionals managing multiple installations or service calls.
Professional Features & Benefits
- Heavy-duty cold-forged steel chassis with electroplated corrosion resistance
- Latchbolt: stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
- Non-handed device (except double cylinder and lever trim which are handed)
- Standard bar length 36" (fits 30"–36" doors); easily field cut; optional 24" or 48"
- Standard single-point 1/4-turn hex key dogging on panic devices
- Free Wheeling levers for vandal resistance on trim
- SecureBolt® option (ED5200S): deadbolt-style latchbolt resists unauthorized entry
- Electrified options including delayed egress, electric latch retraction, and electric dogging
- UL-listed panic and 3-hour fire exit hardware; NFPA 101 and NFPA 80 compliant
- Full range of trim with Muséo® and Vineyard™ collections
- ADA compliant — lever trims and pulls comply with Americans with Disabilities Act
- PathLite™ photoluminescent touchpad cover option available
- Five-year limited warranty; ED5800 CVR certified to 3.25 million cycles
Technical Specifications
- Grade: ANSI/BHMA A156.3 Grade 1
- Handing: Non-handed standard (lever trim and double cylinder devices are handed)
- Bar Length: 36" standard (fits 30"–36" doors); optional 24" or 48"
- Door Thickness: 1-3/4" (44mm) standard; optional 2" (D200) or 2-1/4" (D214)
- Minimum Stile Width: 4-1/2" (114mm)
- Latchbolt — Rim (ED5200): Stainless steel pullman-type, 3/4" (19mm) throw with deadlocking auxiliary latch
- Latchbolt — SecureBolt® (ED5200S): Deadbolt-style, 3/4" (19mm) projection x 1" wide, positive deadlocking by auxiliary bolt
- Latchbolt — SVR (ED5400): Top: 3/4" throw pullman-type deadlocking; Bottom: 5/8" throw deadbolt
- Projection: 3-1/4" (83mm) active; 2-3/4" (70mm) dogged
- Dogging: Single-point 1/4-turn hex key; optional cylinder or electric dogging
- Strike: Surface-mounted 3/8" roller strike with positive locking plate and shims
- Certifications: ANSI A156.3 Grade 1; UL/cUL panic and 3-hour fire exit hardware; NFPA 101; NFPA 80; ADA; California State Fire Marshal approved
- Warranty: Five-year limited
Professional Applications
- Commercial Office Buildings
- Educational Facilities
- Healthcare Institutions
- Retail Establishments
- Industrial and Warehouse Facilities
- Multi-Tenant Residential Properties
- Government and Municipal Buildings
Why Choose Corbin Russwin Quality?
Corbin Russwin exit device parts and accessories are manufactured to precise OEM specifications, ensuring dependable fit and function in commercial door hardware assemblies. The 228F18-8 roll pin features durable steel construction with a black finish, purpose-built for positioning, connecting, and fixing parts in the ED7000 Crossbar and ED6200 Rim Exit Device platforms. Engineered for demanding commercial applications where consistent, reliable performance is essential, and supplied in a convenient bag of 100 pieces for professional service and maintenance use.
Manufacturer Resources
ED4000 Series Exit Device Catalog
Product Specs
- Product Group:
- Exit Device Parts and Accessories
- Product Subgroup:
- Parts and Accessories
- Product Type:
- Roll Pin
- Commercial/Residential:
- Commercial
- Subcategory:
- Parts and Accessories
- Product Function:
- Roll Pin
- For Use With:
- ED7000 Crossbar Exit Device; ED6200 Rim Exit Device
- Department:
- Door Hardware
