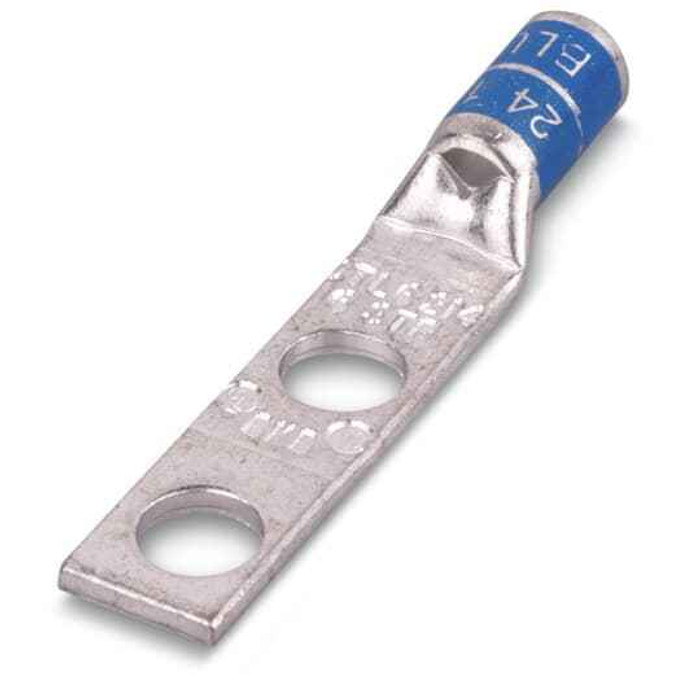

CU TP 2HL LUG SHRT BRL 3/0 1/2B ORG
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Group:
- Wire Termination
- Product Type:
- Standard Barrel
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809
- Stud Size:
- 1/2 in
- Sub Brand Label:
- Blackburn
- Type2:
- Cable or wire lug
- Voltage Rating:
- 35 kV
- Department:
- Electrical
- Product Subgroup:
- Lugs
- Product Color:
- Orange
- Product Material:
- Copper
Blackburn CTL302 – Frequently Asked Questions
1) What wire size does the Blackburn CTL302 compression lug take?
The CTL302 is sized for 3/0 conductor. It's a copper compression lug with a short barrel, so the barrel accepts a single 3/0 cable and gets crimped with the die matching the orange color code.
2) Will the Blackburn CTL302 lug bolt to a 1/2 inch stud?
Yes. The CTL302 tongue is drilled for 1/2 inch stud size, and it's a two-hole tongue, so the pad on your bus or equipment landing needs two 1/2 inch holes at matching spacing rather than a single bolt.
3) Can I use this copper lug on aluminum conductor?
No. The CTL302 is a copper-bodied lug intended for copper conductor. For aluminum or dual-rated work you need a lug marked AL9CU or an aluminum-bodied compression lug in the same 3/0 range.
4) What voltage is the Blackburn CTL302 lug rated for?
35 kV. That covers medium-voltage terminations as well as any 600 V application, so the same lug works in switchgear, pad-mount and pothead work.
5) Is the CTL302 lug UL listed?
It carries UL file E9809. Useful if you're submitting the termination for inspection on a commercial or institutional job.
6) Why is the Blackburn CTL302 lug orange?
Orange is the crimp die color code on this lug. It tells the installer which die index to set in the compression tool so the 3/0 barrel gets the correct crimp, and it gives an inspector a quick visual check that the right lug went on the right conductor.
7) Does a short barrel lug like the CTL302 matter in a tight termination cabinet?
It does. The short barrel version keeps overall length down, which helps when the cable bend and the landing pad are close together in a crowded enclosure. If you have room and want more crimp area, a long barrel lug in the same 3/0 size is the alternative.
8) Is the CTL302 sold individually or in a bag?
Each. The CTL302 is sold as a single lug, so order one per conductor termination and remember phase plus neutral and ground counts on a multi-conductor run.
9) What is the manufacturer part number to order this Blackburn lug?
Order it as Blackburn CTL302. That is the manufacturer part number for the copper two-hole, short-barrel, 3/0 lug with the 1/2 inch bolt holes.
