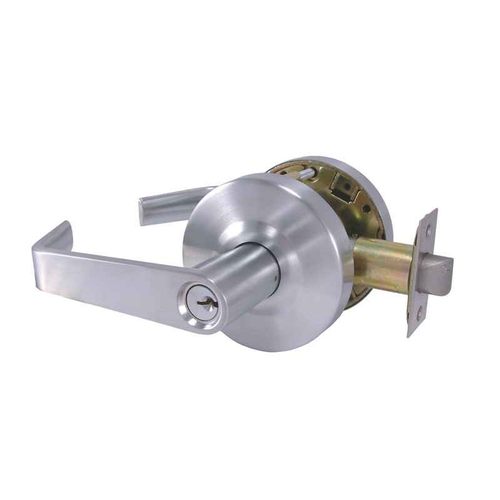

Design Hardware J84 Classroom Lever Lockset, Flat Lever

Specifications:

ANSI: Meets ANSI - A156.2, Grade 2 Standards
UL Listings: UL Listed for “A" Label 3 Hour Fire Doors
ADA Compliance: Meets ADA and ANSI A117.1 accessibility codes
Lock Chassis: Steel, Zinc dichromated for Corrosion Resistance
Trim: 5" Solid zinc diecast levers, 3 3/8" wrought brass roses
Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag
Handing: Non-Handed - Completely reversible (S-A and S-B lever styles are handed)
Backset and Latchface: 2 3/4" backset std. with 1-1/8" x 2-1/4" latchface, 2 3/8" backset is available with 1" x 2 1/4" latchface both with self adjusting front for square or beveled edge doors
Latchbolt: Stainless Steel with 1/2" projection, Deadlocking on keyed functions and exit latch
Cylinder Options: 6 Pin Brass, C Kwy, with 2 Keys or Prepared for Small format IC core (less core)
Strikes: 4-7/8" x 1-1/4" ASA standard -T strike and Full lip strikes available
Door Preparation: ANSI A115.2 - 2-1/8" crossbore with (2) 3/8" Thru bolt holes
Optional Thru Bolts: Removable Thru Bolts - Can be installed without thru bolts
Door Thickness: Factory Set for 1-3/4" - can be adjusted to fit 1-3/8" up to 2" thick
Standard Lever Design: Flat (standard - stocked in US26D and US10B)
Other Lever Choices: Curved, Half Curved, S-A and S-B
Standard Finish: US26D and US10B (in stock in flat lever)
Special Order Finishes: US3 PVD*, US4, US15, US26 PVD* (PVD = Lifetime Finish)
Fasteners: Combination screws for wood or metal doors and frames
Warranty: Limited Lifetime Warranty
