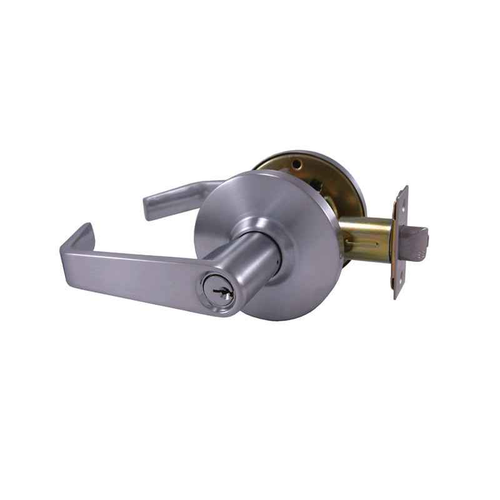

Design Hardware X86 Storeroom Lever Lockset, Flat Lever

Design Hardware X86 Storeroom Lever Lockset, Flat Lever

(No reviews yet) Write a Review

Model: DH-X-86-F-26D
$173.03
$78.57
Selected Finish is
Selected Cylinder is
Selected Keying is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$173.03
$78.57
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
DESIGN HARDWARE X SERIES LOCKSET

Specifications:

ANSI: Meets ANSI - A156.2, Series 4000, Grade 1 Standards
UL Listings: UL Listed for “A" Label 3 Hour Fire Doors
ADA Compliance: Meets ADA and ANSI A117.1 accessibility codes
Lock Chassis: Steel, Zinc dichromated for corrosion resistance
Clutching: Clutching levers standard for vandal resistance on locking functions
Trim: 5" Solid zinc diecast levers, 3 3/8" wrought brass roses
Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag
Handing: Non-handed - Completely reversible (S-A and S-B lever styles are handed)
Backset and Latchface: 2-3/4" backset std. with 1-1/8" x 2-1/4" latchface, 2-3/8" backset is available with 1" x 2-1/4" latchface both with self adjusting front for square or beveled edge doors
Latchbolt: Stainless Steel with 1/2" projection, Deadlocking on keyed functions and exit latch
Cylinder Options: 6 Pin Brass, C Kwy, with 2 Keys std, Prepared for Small format IC core (less core)
Strikes: 4-7/8" x 1 1/4" ASA standard - T strike and Full lip strikes available
Door Preparation: ANSI A115.2 - 2-1/8" crossbore with (2) 3/8" thru bolt holes
Door Thickness: Factory Set for 1 3/4" - 1 3/8" require shims, can be adjusted to fit up to 2" thick
Lever Designs: Flat (standard, shown above), Curved, Half Curved, S-A and S-B
Standard Finishes: US3 PVD*, US4, US10B, US15, US26 PVD*, US26D (PVD = Lifetime Finish)
Marine Grade Option: Marine Grade 316 Stainless steel lever and rose cover upgrade available
Fasteners: Combination screws for wood or metal doors and frames
Warranty: Limited lifetime warranty


RESOURCES and DOWNLOADS

Installation Instruction

Template

Manufacturer Resources

Product Specs

Series:
X Series
Features:
Clutching Levers Standard for Vandal Resistance on Locking Functions, Anti-Sag Mechanism With Independent Lever Return Springs to Prevent Lever Sag
Grade:
Grade 1
Keyed Function:
Single Cylinder
ANSI/BHMA:
ANSI A156.2, UL Listed
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Subcategory:
Lever Lockset
Keyed:
Yes
Commercial/Residential:
Commercial
Cylinder and Keyways:
Schlage C Keyway
Handle Type:
Lever
Lock Function:
Storeroom
Product Attribute:
Cylindrical Locks
Product Function:
Storeroom
Door Thickness Range:
1-3/4"
Latch Specification:
Deadlocking
Door Strike:
1-1/4" x 4-7/8", ASA Strike, Square Corner
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

Design Hardware DH-X-86-F-26D – Frequently Asked Questions

1) What does the storeroom function do on a Design Hardware X86 lever lock?
Storeroom means the outside lever is always locked and only the key retracts the latch. The inside lever always turns free for egress, and there is no button or thumbturn to leave the door unsecured. That is why it lands on stock rooms, mechanical rooms, and electrical closets: the door secures itself every time it closes. The X86 is single cylinder keyed, with a deadlocking latchbolt so the latch cannot be carded.
2) Can I key the Design Hardware X86 into my existing Schlage master key system?
The X86 comes with a 6-pin brass cylinder in the Schlage C keyway with two keys, so it drops into a C keyway system directly. If you run small format interchangeable core, order the SFIC prep version instead, which ships less core so you can install your own. Keying is specified at order as either keyed different or keyed alike across multiple locks.
3) Will the Design Hardware X86 lever drop into an existing 161 prep without redrilling?
Yes, if the existing prep is the standard commercial one. The X86 uses ANSI A115.2 door prep, a 2-1/8 inch crossbore with two 3/8 inch thru-bolt holes, and 2-3/4 inch backset as standard with a 1-1/8 x 2-1/4 inch latchface. A 2-3/8 inch backset version is available with a 1 x 2-1/4 inch latchface. The front is self adjusting for square or beveled edge doors, so you do not have to specify the edge.
4) Will the Design Hardware X86 latch into the strike that is already in my frame?
It ships with a 4-7/8 x 1-1/4 inch ASA strike with square corners, which is the standard commercial frame prep, and the stainless steel latchbolt has a 1/2 inch projection. If your frame already carries an ASA cutout, the strike swaps straight across. T strikes and full lip strikes are available if the frame is prepped differently.
5) Is the Design Hardware X86 lever lock approved for a 3 hour fire rated door?
Yes. The X86 is UL Listed for A label 3 hour fire doors and meets ANSI A156.2 Series 4000 Grade 1. It also meets ADA and ANSI A117.1 accessibility codes, which matters because the lever itself satisfies the no-tight-grasping requirement that a knob does not.
6) What should I order instead of a storeroom lever if the room needs to be unlocked during the day?
Storeroom is the wrong function for that. The X86 storeroom outside lever never unlocks except by key. For a door staff should be able to leave open, an entry or office function lets you lock and unlock the outside lever from inside: the Falcon B511CP6D and the Dexter C1000 entry/office are both entry/office locks, the Dexter being Grade 1 for 1-3/8 to 1-3/4 inch doors. For a classroom, where the key locks the outside lever from the corridor, the Cal-Royal AG03 classroom lever runs a 2-3/4 inch backset in the Schlage C keyway.
7) Do I need to specify handing when ordering a Design Hardware X86 lever?
Not for the flat lever. The X86 chassis is non-handed and completely reversible, so one part number covers left and right hand doors. Handing only comes into it if you switch to the S-A or S-B lever styles, which are handed. For a property manager buying across a building, the flat lever means one SKU for every opening.
8) Is a Grade 1 storeroom lever worth it over a Grade 2 in a high traffic building?
Grade 1 is the top ANSI/BHMA commercial tier and the X86 meets ANSI A156.2 Series 4000 Grade 1 with a steel chassis, zinc dichromated for corrosion resistance. It also runs clutching levers, so pushing or hanging on the locked outside lever spins it free rather than driving the chassis, and an anti-sag mechanism with independent lever return springs keeps the lever from drooping over years of use. If the opening is lower traffic, the Hager 2580 Withnell and the Cal-Royal AG05 are both Grade 2 storeroom levers.
9) What finishes and cylinder options do I have to pick from on the Design Hardware X86?
Ordering the X86 comes down to three choices. Finish is 613 dark bronze or 626 satin chrome. Cylinder is conventional or SFIC prep, the latter shipping less core for your own interchangeable cores. Keying is keyed different as standard or keyed alike if you want one key across several locks. Trim is 5 inch solid zinc diecast levers on 3-3/8 inch wrought brass roses.
10) Can I use the Design Hardware X86 on a metal door and frame, or is it for wood doors only?
Both. The X86 ships with combination screws that take wood or metal doors and frames, so the same lock covers a hollow metal opening and a solid core wood one. The self adjusting latch front handles square or beveled door edges either way.
11) Is there a corrosion resistant version of the X86 lever for a coastal or pool area door?
A marine grade upgrade is offered on the X Series: 316 stainless steel lever and rose cover. The base chassis is already steel with a zinc dichromate treatment for corrosion resistance, and the US3 and US26 finishes are PVD lifetime finishes. For salt air or a natatorium, the 316 stainless trim is the one to specify.
How fast can I get the Design Hardware DH-X-86-F-26D delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Design Hardware DH-X-86-F-26D come with a warranty?
Absolutely. The Design Hardware DH-X-86-F-26D is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Design Hardware DH-X-86-F-26D?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Design Hardware DH-X-86-F-26D from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
!
