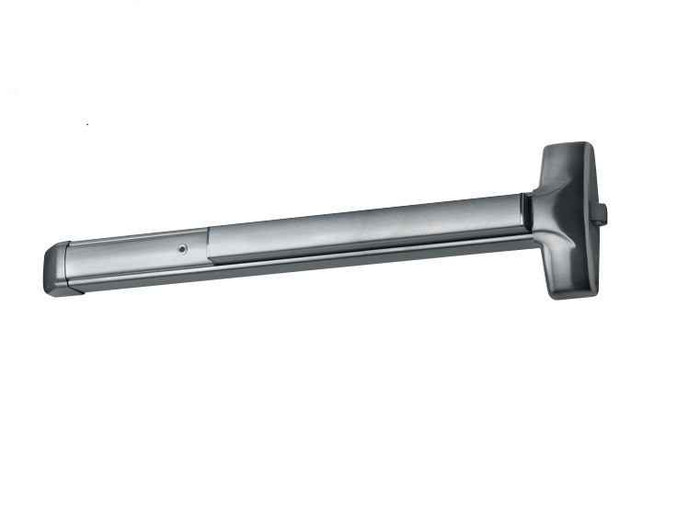

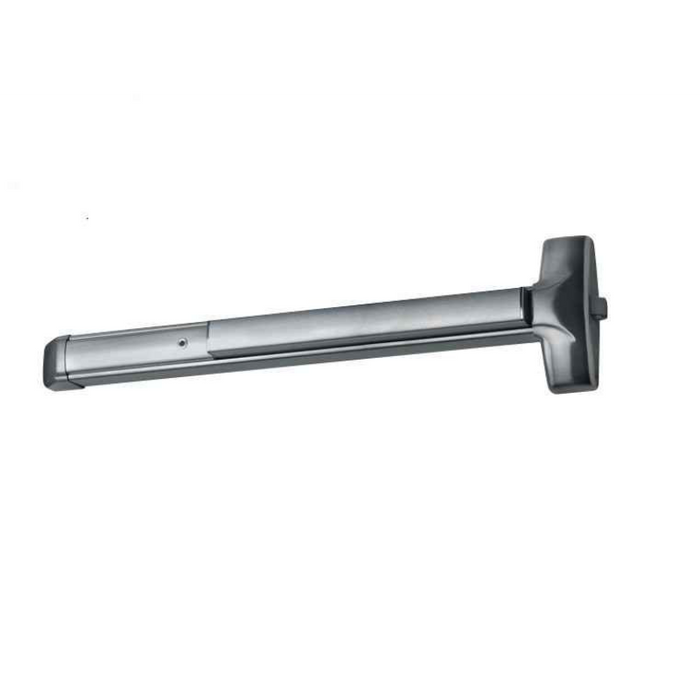

Detex 10EU Advantex 10 Series Super-Heavy-Duty Wide Stile Electric Rim Exit Device with Lock/Unlock Function

Detex 10EU Advantex 10 Series Super-Heavy-Duty Wide Stile Electric Rim Exit Device with Lock/Unlock Function

(No reviews yet) Write a Review

Model: 10EU-628-36
$3,275.00
$3,246.31
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,275.00
$3,246.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex Advantex 10 Series Super-Heavy-Duty Wide Stile Electric Rim Exit Device with Lock/Unlock Function

Professional Electric Panic Hardware for Commercial Applications

The Detex Advantex 10 Series Electric Rim Exit Device delivers super-heavy-duty panic and fire exit hardware performance with integrated electric lock/unlock functionality. This Grade 1 wide stile rim exit device is engineered for single and double doors with mullions, featuring a patented mounting plate and strike locator system for precise installation. Tested beyond 1,000,000 cycles - twice the cycling required for Grade 1 UL testing - this device provides exceptional durability with stainless steel construction and PVD finishing over all exposed surfaces.

Professional Features & Benefits

  • Super-Heavy-Duty Durability: Tested beyond 1,000,000 cycles - twice the cycling required for Grade 1 UL testing for exceptional reliability in high-traffic commercial applications.
  • Electric Lock/Unlock Function: Integrated electrical operation provides remote access control capability while maintaining panic egress functionality.
  • Wide Stile Compatibility: Designed specifically for wide stile door configurations to accommodate various commercial door types and applications.
  • Patented Installation System: Mounting plate and strike locator system replaces paper templates for the easiest and most accurate installation available.
  • Premium Construction: All exposed surfaces finished over stainless steel with environmentally-friendly PVD process for long-lasting durability and appearance.
  • Stainless Steel Latch: Non-handed design with stainless steel deadlocking Pullman-type latch bolt for reliable latching performance.
  • Field Adjustable: Field sizeable design with 1/8 turn hex or cylinder dogging for installation flexibility and operational convenience.
  • Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

  • Commercial/Residential: Commercial
  • Grade: Grade 1
  • Product Category: Exit Devices and Trim
  • Product Function: Electric Lock/Unlock
  • Product Group: Exit Devices and Trim
  • Product Model: 10EU
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Series: 10 Series
  • Stile: Wide
  • Stile Type: Wide Stile
  • Subcategory: Advantex Series
  • Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
  • Wood Door Compatible: No

Installation & Operation

  1. Verify electrical requirements match available power supply and confirm current capacity before proceeding with installation.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  5. Configure operational settings including electric lock/unlock functions per application requirements.
  6. Restore power and test all functions including normal panic operation, electric lock/unlock operation, and integration with connected access control systems.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex Advantex 10 Series exit devices deliver professional-grade reliability with stainless steel construction and PVD finishing tested beyond 1,000,000 cycles for demanding commercial applications. The patented mounting plate and strike locator system ensures precise installation while the Grade 1 rating confirms superior performance standards. Backed by a comprehensive 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty, this electric rim exit device provides the dependable performance essential for critical egress and access control applications.



Resources

Installation Instructions
Parts List
Door Templates
Maintenance Manual
Installation Video
Specifications

Product Specs

Series:
10 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Advantex Series
Commercial/Residential:
Commercial
Warranty:
10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
Grade:
Grade 1
Stile:
Wide
Stile Type:
Wide Stile
Wood Door Compatible:
No
Product Model:
10EU
Product Function:
Electric Lock/Unlock
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex 10EU-628-36 – Frequently Asked Questions

1) What does the electric lock/unlock function on the Detex 10EU actually do?
It lets an access control system lock or unlock the outside trim remotely while free mechanical egress from the inside is never affected. Pushing the bar always retracts the latch, whatever the electrical state. That makes it the right choice for a door you want on a card reader, a time schedule, or a remote release from a front desk.
2) Do I have to specify handing on the Detex 10EU?
Yes. The 10EU is ordered as right hand reverse or left hand reverse, because the electrified chassis and the outside trim prep are side specific. The Pullman latch bolt itself is non-handed, but the device order still needs the handing called out. Stand outside the door: if it is hinged on your right and swings toward you, that is right hand reverse.
3) Will one Detex 10EU secure a pair of doors, or do I need a mullion?
The 10EU is a rim device, which latches into a strike on the frame or on a mullion, not into the head and threshold. Detex lists it for single doors and for double doors with mullions, so on a pair you need a removable mullion for the devices to latch into. If you cannot have a mullion in the opening, a vertical rod device is the correct type instead, such as the Hager 4501 concealed vertical rod wide stile device.
4) Can I get delayed egress or a request to exit switch built into the Detex 10EU?
Yes. Beyond the lock/unlock function, the 10EU can be ordered with delayed egress, electric dogging, a hardwired electric alarm, or a request to exit signal switch (or none of those). Request to exit is what you add when the access control panel needs to see a legitimate egress and shunt the alarm. Electric dogging lets the panel push-through the device on a schedule instead of someone keying or hexing it each morning.
5) If the door is narrow stile, what should be used instead of the Detex 10EU?
The 10EU Advantex is built for wide stile doors, so a narrow stile aluminum opening needs a different device. Narrow stile rim options include the Adams Rite 8800 Series 30 inch rim exit device with starwheel interlocking, rated for 1-3/4 to 2-1/4 inch doors, the Corbin Russwin ED4200 Grade 1 36 inch narrow stile rim device for 1-3/4 inch doors, and the TownSteel ED3700 36 inch Grade 1 narrow stile rim device. None of those carry the 10EU electric lock/unlock function.
6) What are the alternatives to the Detex 10EU for a fire rated opening?
The Detex 10EU Advantex can be ordered in a fire rated configuration, along with hurricane rated and hurricane-and-fire-rated builds. Other fire rated rim devices include the Sargent 12-8810 fire rated wide stile rim device with RX and MELR, the Marks USA M9900F in 36 inch and 48 inch exit-only versions, the Dexter ED1000 Series Grade 1 fire rated rim device, and the Orca OED85 36 inch fire rated rim device. Fire rated devices do not accept mechanical dogging, which is why the 10EU is also offered less dogging.
7) What is the closest alternative to the Detex 10EU when the opening needs an electrified rim exit device rather than a mechanical one?
The Detex 10EU Advantex is a wide stile rim exit device with an electric lock/unlock function. If you need another electrified rim device for the same type of opening, the SDC S6136 Spectra S6000 Series is a 36 inch electrified architectural rim exit device with a 4 inch wide stile and a door thickness range of 1-3/4 to 2 inches. The Dormakaba E2103 with 4908A trim is a 36 inch electrified rim device in an 08 classroom function. Both are electrified at the device; the 10EU adds electric lock/unlock with panic egress retained.
8) Is an SDC pressure sense bar or switch bar the same thing as the Detex 10EU?
No. The SDC SureExit PSB560 36 inch pressure sense bar and the SDC MSB550 36 inch mechanical switch bar are switch bars that release an electromagnetic lock; they suit narrow or wide stile doors but do not latch the door themselves. The Detex 10EU Advantex is a rim exit device with a stainless steel deadlocking Pullman-type latch bolt that latches into a strike, with electric lock/unlock built into the device. If the opening is secured by a maglock, a switch bar fits; if the door must latch, the 10EU is the device.
9) If the opening needs concealed vertical rod instead of a rim device, what replaces the Detex 10EU?
The Detex 10EU Advantex is a rim device that latches into a surface or semi-mortise strike, so it suits single doors and pairs with a mullion. For a pair without a mullion where the latching must be top and bottom, the Hager 4501 Series 36 inch Grade 1 concealed vertical rod device with a wide stile pushpad is the wide stile counterpart, and the Hager 4601 Series 36 inch Grade 1 concealed vertical rod device covers narrow stile.
10) Which dogging option should I order on a Detex Advantex 10EU?
Three choices: hex dogging, cylinder dogging, or less dogging. Hex is the 1/8 turn hex key version and is the usual pick for a maintenance crew holding a door pushed-through during business hours. Cylinder dogging lets you dog it with a keyed cylinder, which suits a building where only keyholders should be able to do it. Choose less dogging on any fire rated opening.
11) What is the difference between the 99 surface strike and the 98 semi-mortise strike on the Detex 10 Series?
Both are rim strikes for the frame, and the 10EU requires one to be specified. The 99 surface strike mounts on the face of the stop with no cutting into the frame, which is the easier retrofit. The 98 semi-mortise strike is let into the frame for a flatter, less exposed profile. Match the strike to whatever prep already exists in the frame if you are replacing an old device.
12) Is the Detex 10EU heavy duty enough for a high traffic school or hospital entrance?
Yes. The Advantex 10EU is Grade 1 and Detex tests it beyond 1,000,000 cycles, which is twice the cycling required for Grade 1 UL testing. Exposed surfaces are PVD finished over stainless steel, and the latch is a stainless deadlocking Pullman bolt. That is the duty level for education, healthcare, and government openings.
13) What other electrified rim exit devices could I use instead of the Detex 10EU?
A few we carry cover the same job. The SDC S6136 Spectra S6000 is an electrified wide stile rim device with a 4 inch stile and a 1-3/4 to 2 inch door thickness range. The Dormakaba E2103 electrified 36 inch rim device comes with 4908A trim in an 08 classroom function. The Sargent 12-8810 is a fire rated wide stile rim device with RX and motorized latch retraction. If you want an electromechanical bar rather than a conventional device, the Securitron EMB is built for a 2-1/4 inch door.
14) Is there a hurricane rated version of the Detex 10EU for a coastal opening?
Yes. The 10EU is built in hurricane rated and in combined hurricane and fire rated configurations, as well as fire rated only and non-rated. For a Florida or Gulf coast exterior egress door that also needs to be a fire door, the hurricane and fire rated build is the one to order.
15) What is a simpler mechanical wide stile rim device if the opening does not need access control?
If the opening only needs panic egress without electrification, straightforward wide stile Grade 1 rim devices include the Von Duprin 22-3FT, a 36 inch non-handed wide stile pushpad rim device for 1-3/4 inch doors, the Corbin Russwin ED2200 36 inch Grade 1 exit only wide stile device, and the TownSteel ED1100 36 inch heavy duty Grade 1 wide stile panic rim device. The Detex 10EU carries the same Grade 1 rating but adds the electric lock/unlock function.
16) What crossbar rim devices compare to the Detex 10EU pushpad design?
The Detex 10EU Advantex uses a touchpad-style Advantex 10 Series chassis that is field sizeable with 1/8 turn hex or cylinder dogging. If the specification calls for a crossbar look instead, the Corbin Russwin ED3200 is a Grade 1 48 inch crossbar rim exit device for 1-3/4 inch wide stile doors, the CRL Jackson 1095 Series is a 48 inch crossbar rim panic device in wide stile, and the Sargent 3828 is a Grade 1 reversible standard push bar rim device for 48 inch doors. Crossbar devices are exit only and do not offer the 10EU electric lock/unlock function.
17) Is there a Grade 2 wide rim exit device to consider against the Detex 10EU for lower traffic doors?
The Detex 10EU Advantex is Grade 1 and tested beyond 1,000,000 cycles, which is twice the cycling required for Grade 1 UL testing. For lighter traffic where Grade 1 is not required, the Cal-Royal 5000 is a 36 inch wide rim exit device with a touch bar and Grade 2 chassis, and the Cal-Royal 5500 is a 48 inch wide rim device with a push bar, also Grade 2. Neither offers electric lock/unlock.
18) What is the difference between the Detex 10EU and the Securitron EMB electromechanical exit bar?
The Securitron EMB is an electromechanical exit bar in the EMB Series listed for 2-1/4 inch door thickness. The Detex 10EU Advantex is a Grade 1 wide stile rim exit device with a deadlocking Pullman latch and electric lock/unlock, offered in 36 and 48 inch sizes and available fire rated or hurricane rated. If the job requires a device with a fire or hurricane rating and a rim strike, the 10EU is the one to spec.
19) Which finishes does the Detex Advantex 10 Series electric rim device come in to match my other doors?
Ten finishes: 605 polished brass, 606 brushed brass, 611 polished bronze, 612 brushed bronze, 613 oil rubbed bronze, 628 brushed aluminum, 629 polished stainless, 630 brushed stainless, 693 black painted, and 695 dark bronze painted. 630 brushed stainless and 628 brushed aluminum are the usual matches on commercial storefront and hollow metal openings. All exposed surfaces are PVD finished over stainless.
20) How hard is the Detex 10 Series to install compared to other rim devices?
Detex ships a patented mounting plate and strike locator with the Advantex 10 Series that replaces paper templates, so the device and the frame strike land in the right relationship without measuring off a template. Detex also publishes installation instructions, a parts list, and a maintenance manual for the 10 Series that you can pull before the crew goes out.
