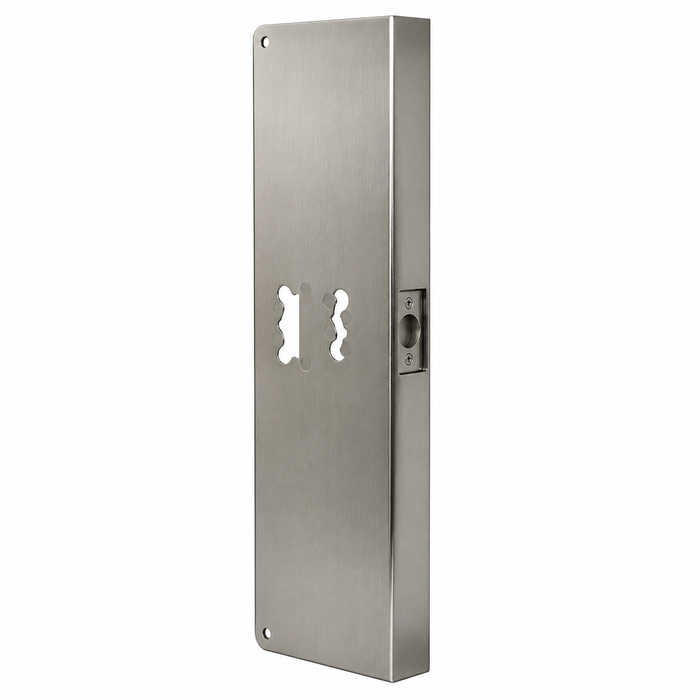

Don-Jo 20-2-CW Wrap Around Plate 5-1/8" x 20" for Cylindrical Locks with 2-3/4" Backset and 1-3/4" Door

Don-Jo 20-2-CW Wrap Around Plate 5-1/8" x 20" for Cylindrical Locks with 2-3/4" Backset and 1-3/4" Door

(No reviews yet) Write a Review

Model: 20-S-2-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$68.10
$32.02
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 20-2-CW Wrap Around Plate 5-1/8" x 20" for Cylindrical Locks with 2-3/4" Backset and 1-3/4" Door

The Don-Jo 20-2-CW is a commercial-grade wrap around plate measuring 5-1/8" wide by 20" tall, engineered specifically for cylindrical lock applications on 1-3/4" doors with a 2-3/4" backset. Constructed from 22-gauge (.032) steel, this wrap around provides a durable reinforcement solution that protects door edges and lock prep areas in demanding commercial environments. Available in multiple finishes including 10B (613), PB (605), and S (630) to coordinate with existing door hardware.

Key Features

  • Precise Dimensions: Measures 5-1/8" wide by 20" tall, providing comprehensive coverage for cylindrical lock installations on commercial doors.
  • Door & Backset Compatibility: Designed for 1-3/4" door thickness with a 2-3/4" backset, ensuring a proper fit with standard commercial door configurations.
  • Cylindrical Lock Application: Specifically engineered for cylindrical lock types, featuring a hole lever prep and latch prep indent for seamless integration with existing hardware.
  • Heavy-Duty Gauge Construction: Fabricated from 22-gauge (.032) steel for reliable strength and long-term durability in high-traffic commercial settings.
  • Multiple Finish Options: Available in 10B (613), PB (605), and S (630) finishes to match a wide range of door hardware aesthetics.
  • Latch Prep Indent: Includes a factory-formed latch prep indent for accurate alignment and professional installation results.
  • Commercial Grade: Designed and rated for commercial applications, making it suitable for offices, institutions, and other demanding environments.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Don-Jo 20-2-CW?

Don-Jo wrap around plates are built to commercial standards, utilizing 22-gauge (.032) steel construction that delivers dependable door edge reinforcement and lock prep protection in high-traffic environments. The 20-2-CW is precisely dimensioned at 5-1/8" x 20" with a dedicated hole lever prep and latch prep indent, ensuring professional-grade results for cylindrical lock installations on 1-3/4" doors with a 2-3/4" backset.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Product Model:
20 2 CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/4"
Department:
Door Hardware

Don-Jo 20-S-2-CW – Frequently Asked Questions

1) Will a Don-Jo 20-2-CW cover the damage around a knob or lever hole on a beat-up commercial door?
That's what it's for. The 20-2-CW measures 5-1/8 x 20 inches and wraps the lock edge of the door, covering the lever bore and the surrounding face on both sides of the prep. It comes with the lever hole and a formed latch prep indent already in it, so it goes over an existing cylindrical lock installation without new drilling on the plate. If the door face is torn out or the prep has been enlarged, this covers it and gives the lock something solid to bear on.
2) Does the Don-Jo 20-2-CW work with a mortise lock or a deadbolt?
No, it's prepped for cylindrical locks only. The plate has a single lever bore at a 2-3/4 inch backset plus a latch prep indent. A mortise lock needs a face cutout for the lock case and usually a separate cylinder and lever hole, and a deadbolt above the lock needs its own bore. Neither is in this plate. If you've got a mortise lockset or a knob-plus-deadbolt opening, look for a wrap around prepped for that configuration.
3) What finishes does the Don-Jo 20-2-CW wrap around plate come in?
Three: 10B oil rubbed bronze, PB polished brass, and S satin stainless. Satin stainless is the one that matches most commercial 630 lever trim and push plates, polished brass suits older 605 brass hardware, and oil rubbed bronze matches 613 dark bronze levers. Pick the one that matches the lockset already on the door, since the plate sits directly behind it.
4) How thick is the steel on a Don-Jo 20-2-CW, and is it heavy enough for a high traffic door?
22 gauge, .032 inch steel. That's the standard weight for a wrap around: stiff enough to reinforce a chewed-out lock prep and take daily lever traffic on an office, school, or apartment corridor door, and thin enough that the lever and rose still sit correctly against the face without shimming. It's a commercial-rated part, not a residential trim piece.
5) Do I have to take the lockset off to install a Don-Jo 20-2-CW wrap around?
Yes. The plate wraps around the lock edge of the door and its lever hole has to line up over the existing bore, so the lever, rose, and latch have to come out first. Slide the plate over the edge, seat the latch prep indent into the latch mortise, then reinstall the lock through the plate. Budget it as a full lockset R and R per door, not a stick-on trim job.
6) Is one wrap around plate enough, or do I need one for each side of the door?
One 20-2-CW covers both faces. A wrap around is a single piece of 22-gauge steel bent to wrap the 1-3/4 inch lock edge, so it laps onto the push side and the pull side from one part. Order one per door leaf. On a pair of doors, that's one per active leaf you're reinforcing.
7) How much of the door does a 20 inch wrap around cover compared to a shorter one?
The 20-2-CW gives 20 inches of vertical coverage centered on the lock, versus the more common shorter wrap arounds that cover roughly the lock area alone. Go with the 20 inch height when the damage runs above or below the bore, when someone has pried the door and buckled the face, or when you want the plate to double as protection over a longer stretch of the lock stile. If the door only has a wallowed-out bore, a shorter plate does the same job with less material on the face.
8) Will a wrap around plate stop the door from being kicked in at the lock?
It helps, but it addresses the door, not the frame. The 22-gauge steel 20-2-CW reinforces the lock stile and the bore area so the lock has solid backing and the face won't tear out further. Most forced entries at a cylindrical lock fail at the strike side, in the jamb, so pair the plate with a heavy strike or a latch protector on the frame if security is the goal rather than repair.
