Don-Jo 27-CW 27 CW Wrap Around for Alarm Lock 2700/T2 and DL4100 Series Electronic Locks

Don-Jo 27-CW 27 CW Wrap Around for Alarm Lock 2700/T2 and DL4100 Series Electronic Locks

(No reviews yet) Write a Review

Model: 27-S-CW
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$59.40
$32.93
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Don-Jo 27 CW Wrap Around for Alarm Lock 2700/T2 and DL4100 Series Electronic Locks

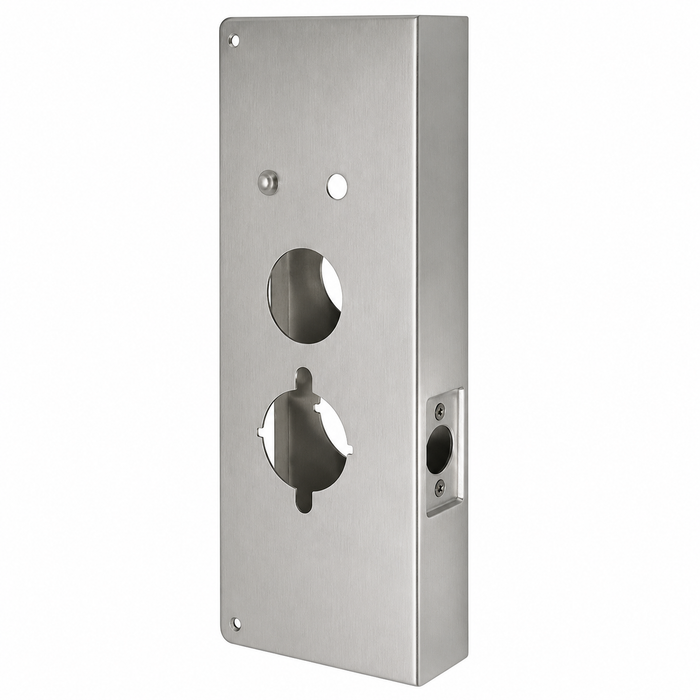

The Don-Jo 27 CW is a commercial-grade wrap around plate engineered specifically for use with Alarm Lock 2700/T2 and DL4100 Series electronic locks. Measuring 5-1/8" wide by 15" tall, this wrap around accommodates a 1-3/4" door with a 2-3/4" backset and features a dedicated hole prep for electronic lock installation. Constructed from 22-gauge (.032) steel, it provides a clean, professional finish while reinforcing the door face around the lock cutout. Available in multiple finishes including 10B (613), AB (609), PB (605), and S (630) to coordinate with existing door hardware.

Key Features

  • Precise Dimensions: 5-1/8" width and 15" height provide full coverage around the lock prep area for a clean, finished appearance on commercial doors.
  • Door & Backset Compatibility: Designed for 1-3/4" doors with a 2-3/4" backset, ensuring proper fit with standard commercial door configurations.
  • Electronic Lock Hole Prep: Pre-cut hole sized and positioned specifically for electronic lock installation, simplifying integration with Alarm Lock 2700/T2 and DL4100 Series devices.
  • Heavy-Gauge Steel Construction: Fabricated from 22-gauge (.032) steel for durable, long-lasting performance in commercial door applications.
  • Latch Prep Indent: Includes a latch prep indent to accommodate proper latch alignment and smooth door operation.
  • Multiple Finish Options: Available in 10B (613), AB (609), PB (605), and S (630) finishes to match a wide range of commercial door hardware aesthetics.
  • Dedicated Series Compatibility: Specifically engineered to work with Alarm Lock 2700/T2 and DL4100 Series electronic locks for reliable, purpose-built integration.

Technical Specifications

  • Subcategory: Wrap Arounds
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Filler Plates, Lock Adapters and Wrap Arounds
  • Product Type: Wrap Arounds
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings with Electronic Access Control
  • Educational Facilities Upgrading to Keypad or Credential-Based Locks
  • Healthcare Institutions Requiring Secure Electronic Lock Integration
  • Retail Establishments Installing Alarm Lock Series Devices
  • Government and Municipal Buildings with Access Control Requirements
  • Multi-Tenant Residential Properties with Electronic Entry Systems
  • Industrial and Warehouse Facilities Using Alarm Lock DL4100 Series Hardware

Why Don-Jo 27 CW?

Don-Jo wrap around plates are purpose-built for professional door hardware installations, combining 22-gauge (.032) steel construction with precise hole prep geometry tailored to specific lock series. The 27 CW is engineered to deliver a clean, finished appearance on 1-3/4" commercial doors while ensuring seamless compatibility with Alarm Lock 2700/T2 and DL4100 Series electronic locks — making it the reliable choice for commercial door hardware professionals.

Manufacturer Resources

DON-JO Wrap-Around Plates

Product Specs

Subcategory:
Wrap Arounds
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Wrap Arounds
Commercial/Residential:
Commercial
Door Width:
1-3/4"
Product Model:
27 CW
Product Category:
Door Trim and Accessories
Backset (Distance):
2-3/4"
Department:
Door Hardware

Don-Jo 27-S-CW – Frequently Asked Questions

1) Will the Don-Jo 27 CW wrap around fit my Alarm Lock DL4100 keypad lock?
The 27 CW is cut for the Alarm Lock 2700/T2 and DL4100 Series electronic locks, so the hole prep lines up with those bodies. It covers a 1-3/4 inch door with a 2-3/4 inch backset. If your opening is a 2-3/8 inch backset, or the lock is a different Alarm Lock family, the prep will not land where the lock does.
2) Will the Don-Jo 27 CW fit a 1-3/8 inch door?
No. The 27 CW is sized for 1-3/4 inch doors only, which is the standard commercial thickness. A 1-3/8 inch door, common on older interior openings, needs a wrap around built for that thickness, since the return legs of the wrap set the fit and they will not close on a thinner door.
3) What does a wrap around plate like the Don-Jo 27 CW actually do?
It wraps the door face around the lock cutout, reinforcing a door that has been chewed up, over-bored, or previously prepped for different hardware, and hiding the damage under a finished steel face. The 27 CW is not the lock and it does not add a locking function. Buyers upgrading a wood or hollow metal door to an Alarm Lock keypad use it to cover the old prep and give the new lock a clean, flat bearing surface.
4) Does the Don-Jo 27 CW work on a door with an existing latch, or do I have to cut around it?
There is a latch prep indent formed into the plate, so it clears the latch and lets the door close and latch normally once installed. You are not notching or filing the plate on site for latch clearance.
5) What finishes does the Don-Jo 27 CW wrap around come in?
Four: 10B oil rubbed bronze (613), AB antique brass (609), PB polished brass (605), and S satin stainless (630). For a property manager standardizing across a building, 630 satin stainless is the one that matches most commercial lever and exit hardware already hanging on the doors; 605 and 609 are the ones to pick when the existing trim is brass.
6) Is 22-gauge steel heavy enough for a high traffic commercial door?
The 27 CW is built from 22-gauge (.032) steel for commercial use. A wrap around at that gauge is a face reinforcement and cover, not a security plate: it stiffens and protects the area around the lock prep and takes the daily abuse of a hallway or entry door, but it is not a strike reinforcer or an anti-pry latch guard. If the concern is forced entry at the jamb, that is a different part.
7) Do I need one Don-Jo 27 CW per door or one per side?
A wrap around wraps the lock edge and folds onto both faces, so a single 27 CW handles the door at that lock location. Order one per opening, matched to the finish already on that door's hardware. All four finishes cover the same 5-1/8 by 15 inch plate, so the finish choice is cosmetic, not dimensional.
